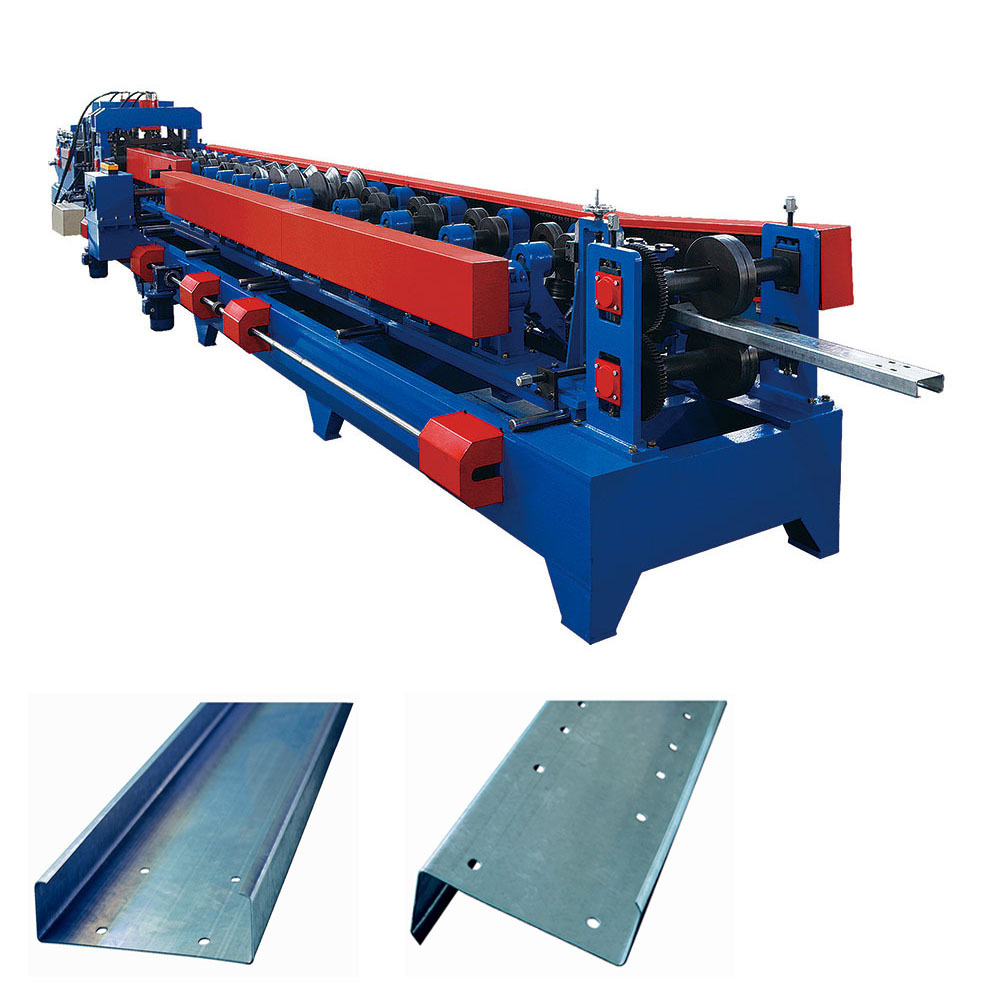

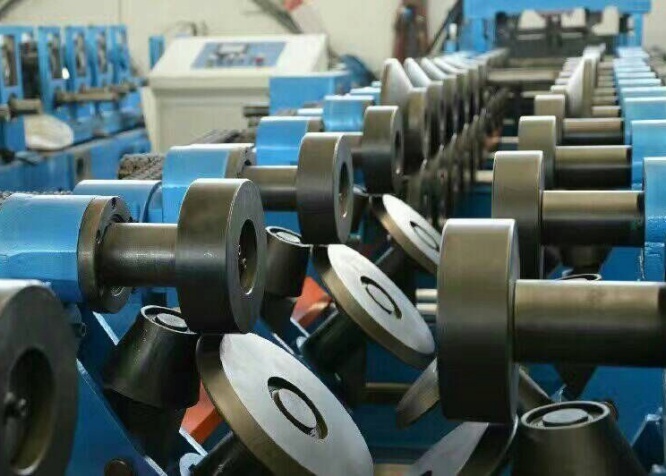

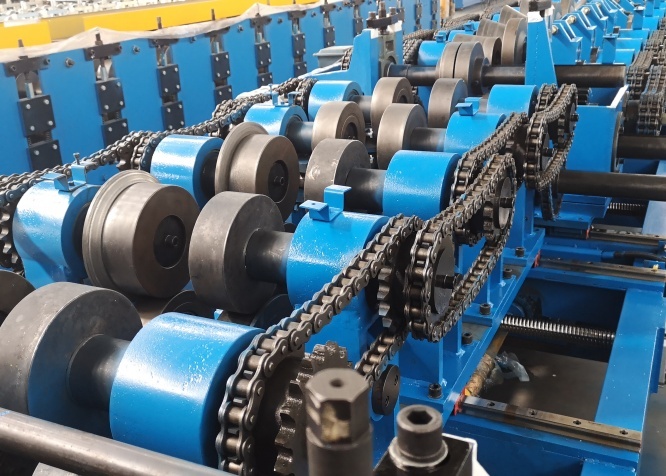

Auto C&Z Exchangeable Purlin Machine

Name: Auto C&Z Exchangeable Purlin Machine
Brand: www.gonawell.com
SKU: GWCZ100-450
Availability: InStock
Rating: 5 (1 reviews)

No.GWCZ100-450

Auto C&Z changeable purlin machine C&Z shape and multi sizes produced by 1 machine Auto change size, auto punch holes, easy operate Suitable for thickness 1.5-3mm Web size 100-450mm, Flange size 50-100mm High precision, 15 years long lifetime servici

Auto C&Z Purlin Machine:

CZ purlin forming machine:

CZ section profile forming machine:

GET A QUOTE

Add to Quote List View Quote List

Description

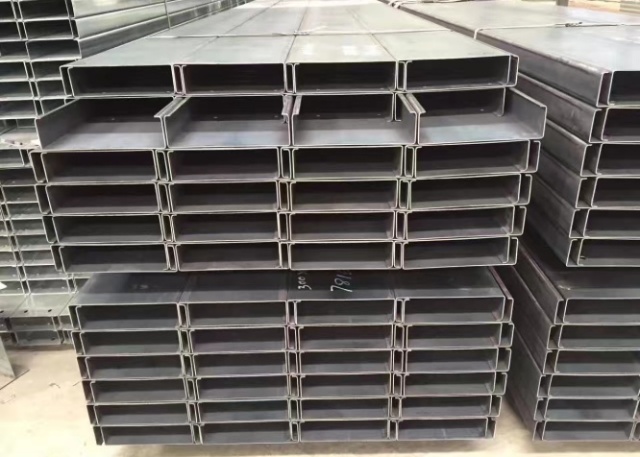

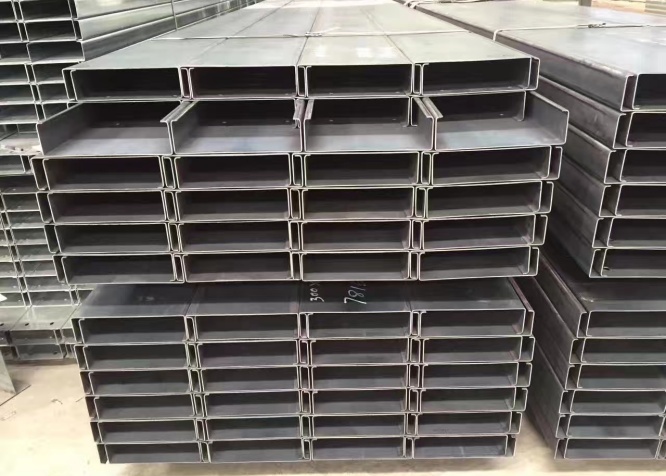

C/Z shape purlins are made from hot/ cold rolled steel strips, and straightened, hole punched, cut to length, and roll formed by GW series steel purlin roll forming machine. Through changing spacing sleeves, the machine can change different types/sizes of purlin. We can design different kinds of profile as per customers' requirements .

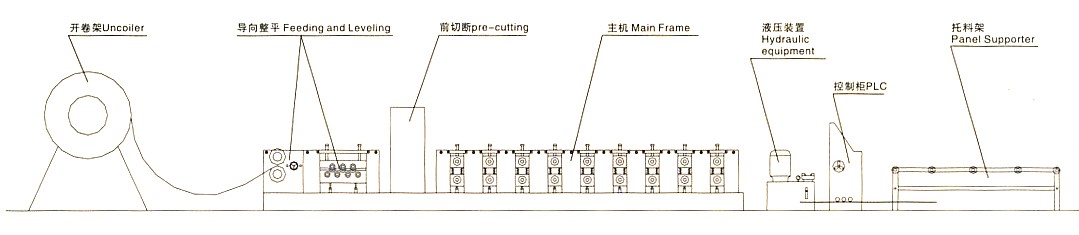

WORK FLOW

Uncoiling

Sheet Guiding

Punching

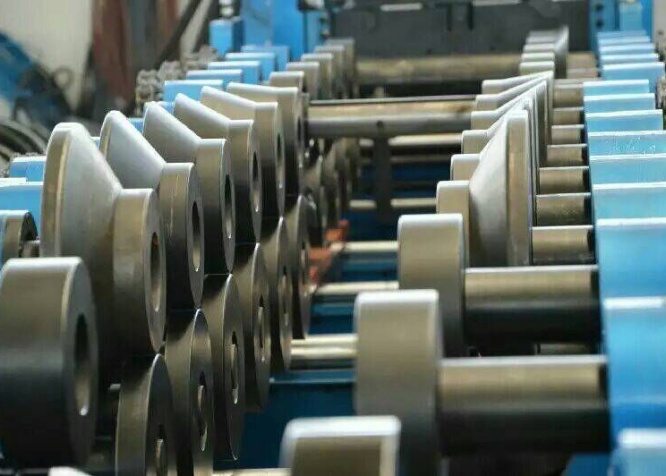

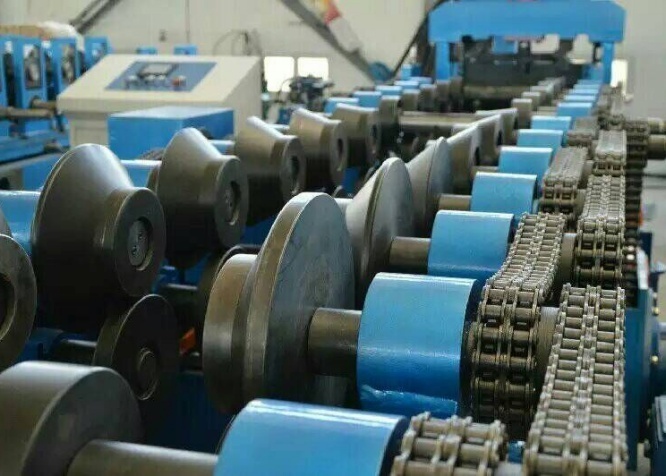

Roll Forming

Measuring Length &Shearing

Sheet to Support Table

QUICK DETAIL

MODEL	GWCZ100-450	OPERATION	Touch screen and button
MATERIAL TYPE	GI steel sheet	HYDRAULIC SYSTEM PRESSURE	12Mpa
MATERIAL THICKNESS	1.5-4.0mm	MAIN MOTOR POWER	18.5-30Kw
MATERIAL FEEDING WIDTH	As request	HYDRAULIC MOTOR POWER	7.5-15Kw
MATERIAL YIELD STRESS	235-345Mpa	DIMENSION	About 850015001500mm
MAX. FORMING SPEED	0-15m/min	WEIGHT	About 10T

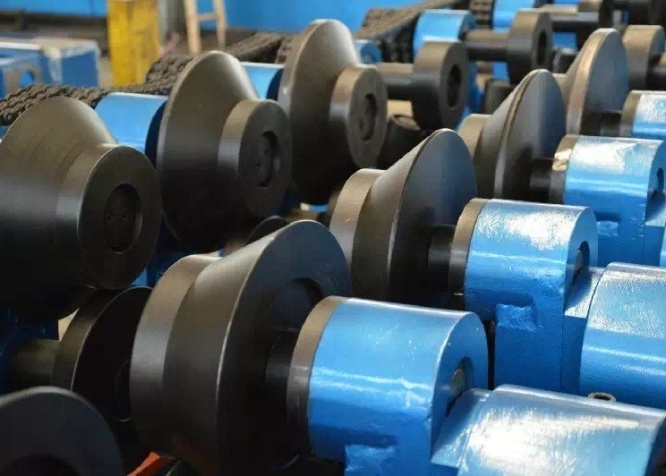

ROLLER MATERIAL	GCr15 hard chromed treatment	WARRANTY	1 year

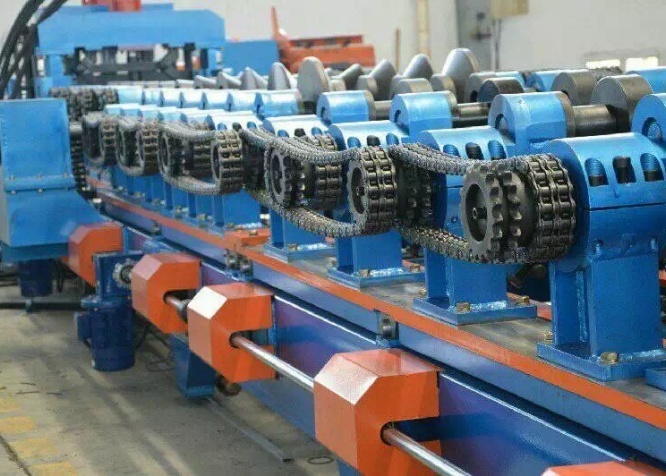

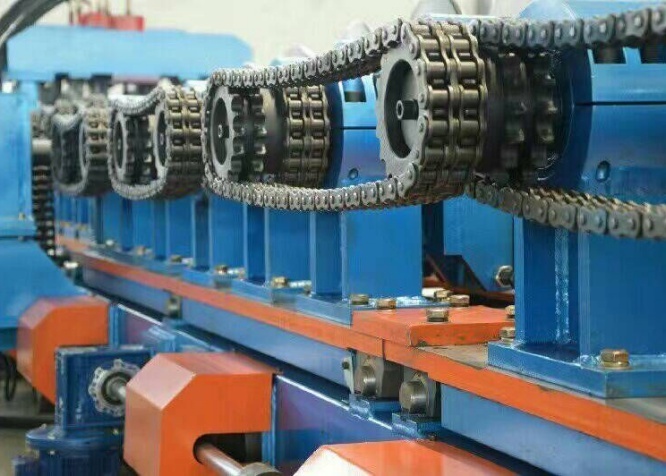

ROLLER DRIVEN TYPE	Chain / Gear-box transmission	CERTIFICATE	ISO, CE
CONTROLLER	PLC

PACKING

Packed by bundle or as customers' requirements and shipped by container.

PAYMENT TERM

TT/ LC

DELIVERY TIME

30-60 days
