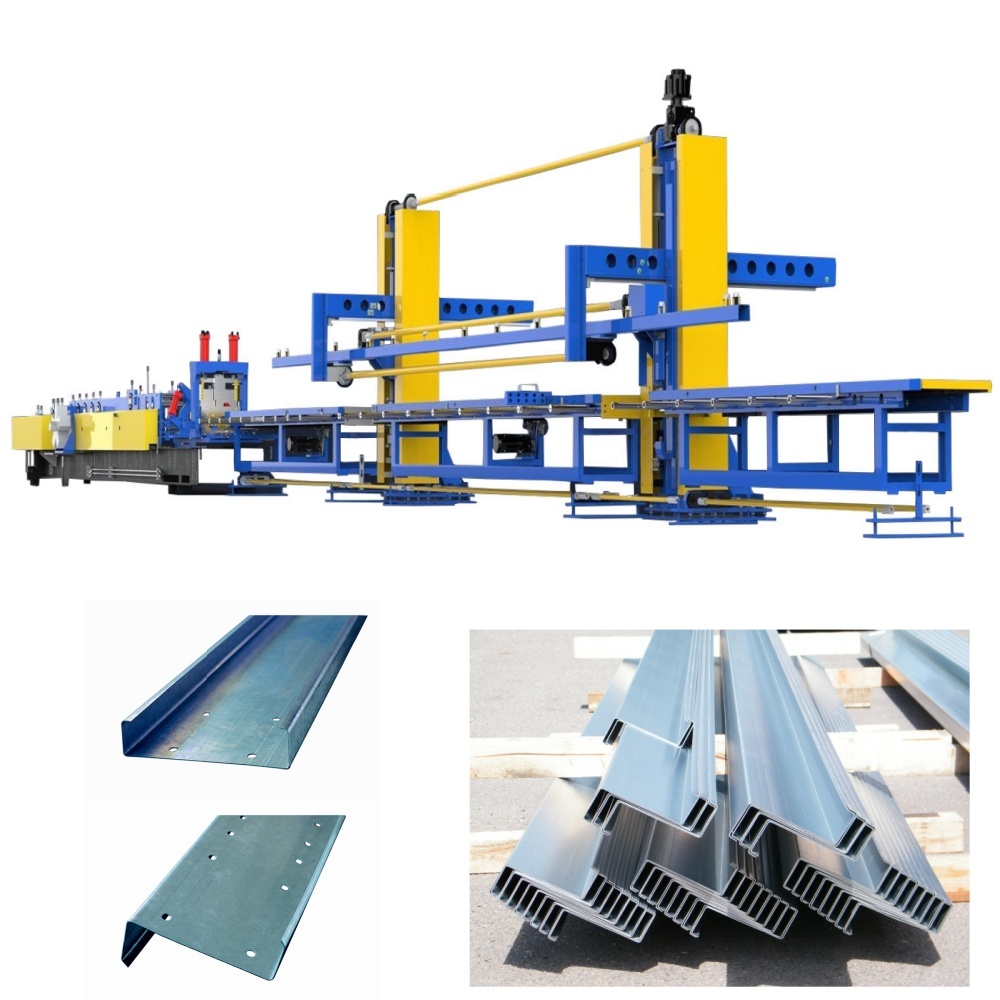

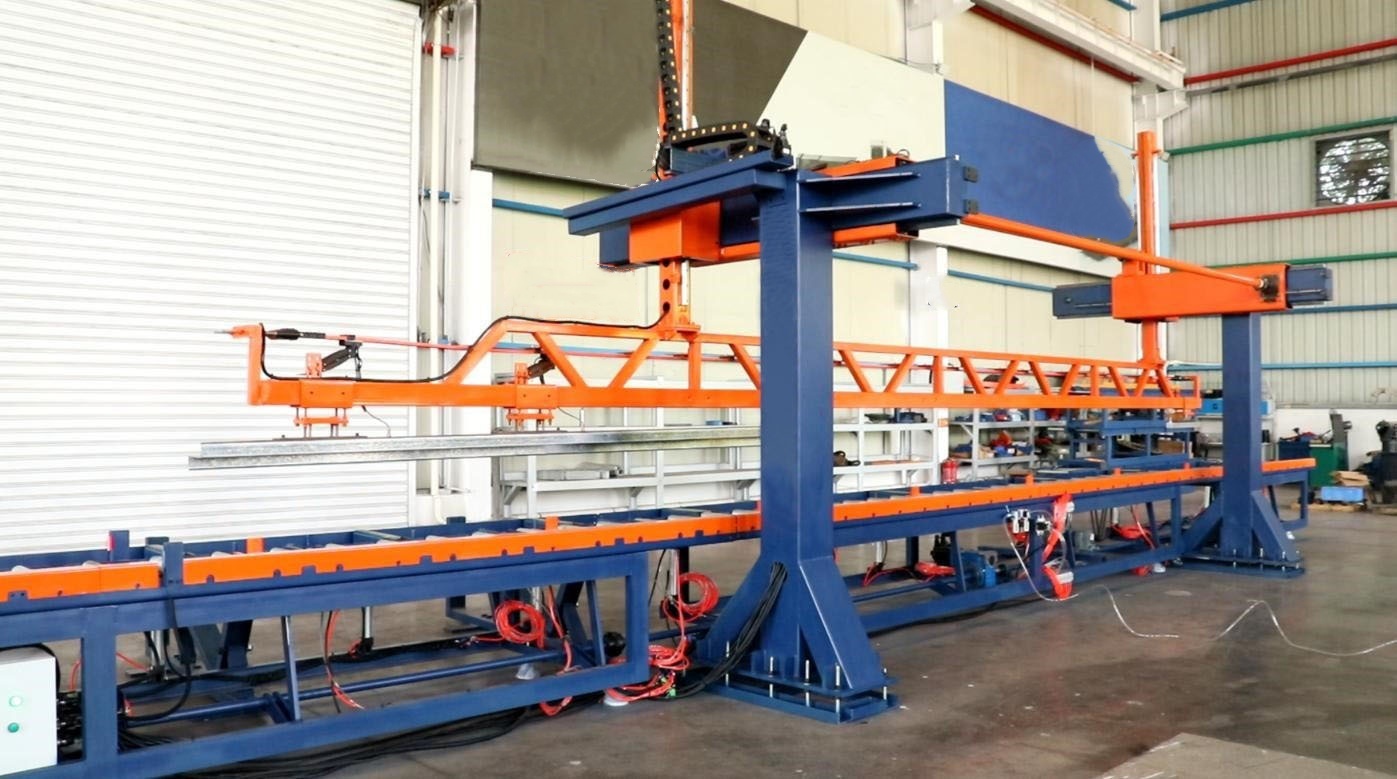

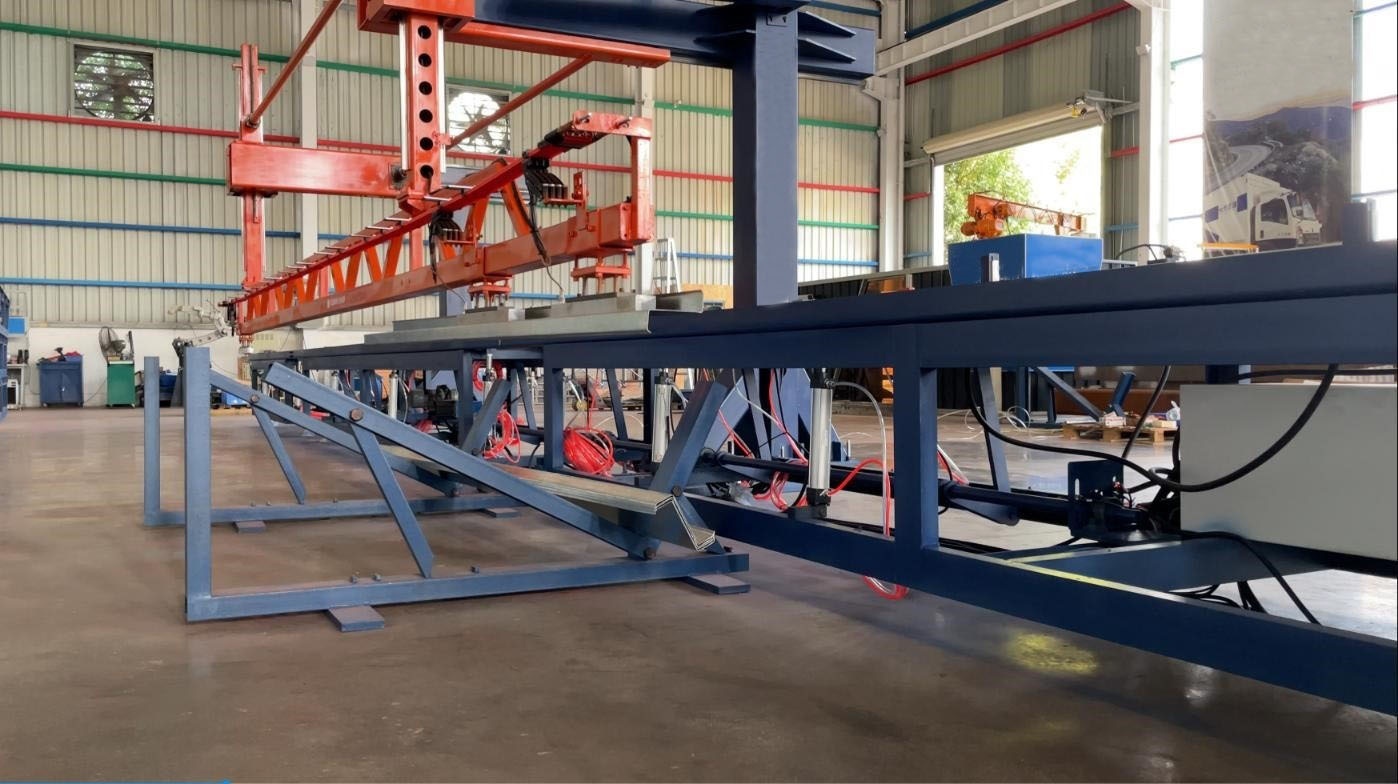

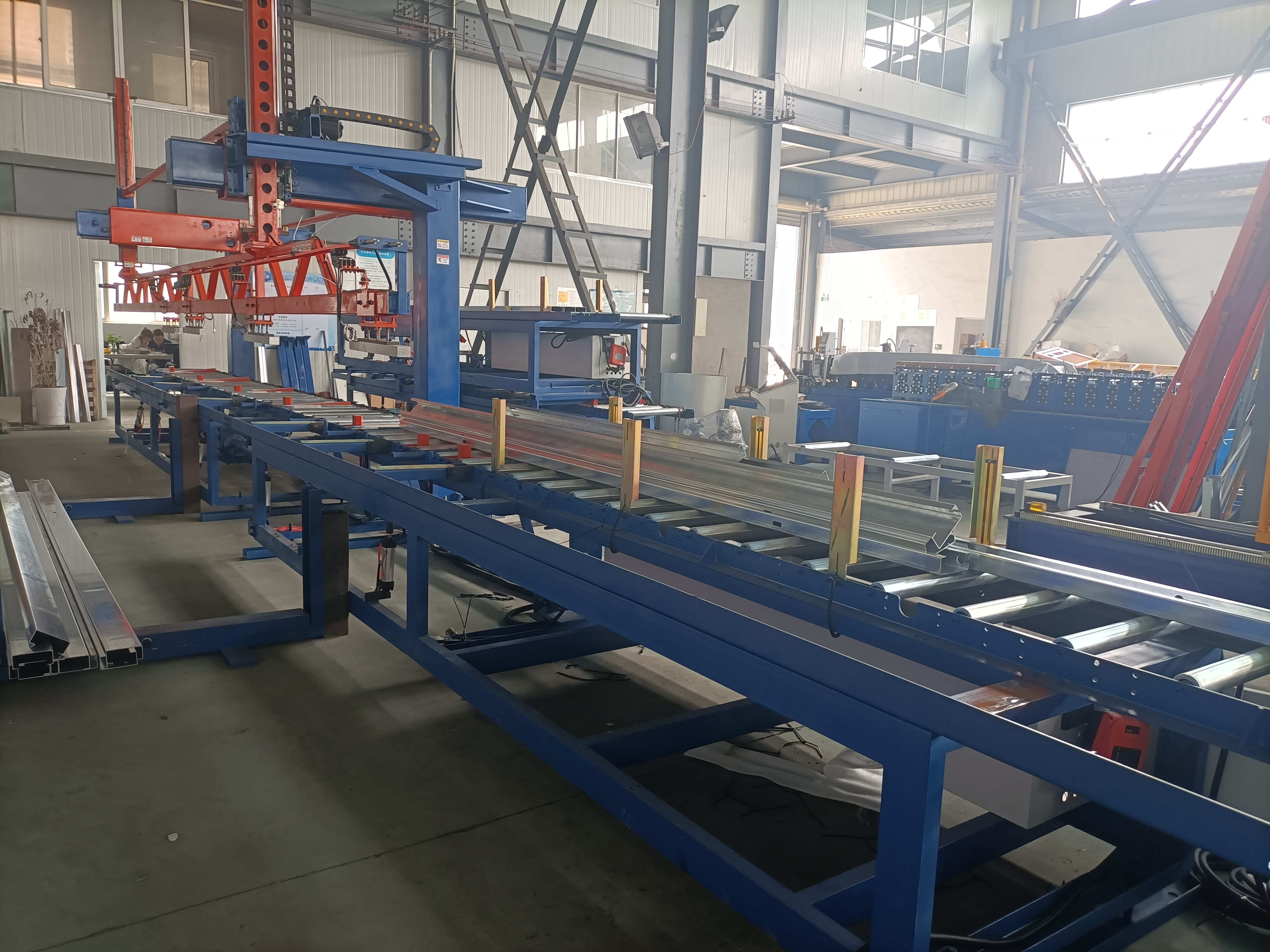

CZ Purlin Stacking Machine — Designed for the downstream of C/Z purlin roll forming lines, this fully automatic stacking machine performs material pickup, flip, alignment and palletizing to replace manual stacking and improve productivity. It handles cold-rolled or galvanized steel C/Z purlins with thickness 1.5–3.0 mm, lengths 3–18 m (customizable) and typical package weights of 1–3 tons (per customer packing).
Specification:
1, Material thickness: CZ purlins 1.5–3.0 mm
2, Length range: 3–18 m (customizable for both stacking machine models)
3, Package weight: Customizable, commonly 1–3 tons (meets industrial stacking needs)
4, Line speed compatibility: 10–15 m/min (standard); 25–30 m/min (high-speed), adjustable to match upstream lines
5, Stacking modes: Single-column, multi-column, staggered; layer separators optional
6, Functions: Grab, flip (C model only), lift, align, stack, discharge
7, End effector: Mechanical gripper / pneumatic clamp / soft-pad (for scratch prevention)
8, Safety features: Light curtain, safety doors, emergency stop; CE/ISO optional
9, Control system: PLC + HMI (Mitsubishi/Siemens/Panasonic optional), PLC interlock with upstream lines
10, Footprint: Tailored to line layout; on-site measurement recommended
11, Power supply: Typical 3Ph 380V 50/60Hz (final per configuration)
Key Features:
1, High adaptability: Adjustable grippers/flip mechanisms for C/Z purlins and thin panels; quick model changeover
2, Full automation: PLC + HMI control for synchronized stacking, reducing labor and boosting throughput
3, Product protection: Soft-pad clamps and buffering to avoid thin panel scratches
4, Multi-speed support: 10–30 m/min, compatible with standard/high-speed forming lines
5, Reliable performance: International electrical components, modular design for easy maintenance
6, Highly customizable: Stacking patterns, separators, electrical brands tailored to needs
7, Safety compliance: Configurable safety packages for global export requirements
Application:
1, End-of-line stacking for C/Z purlin roll forming lines (steel construction component manufacturers).
2, Automatic stacking for metal roof and wall panel production lines (color-coated sheet manufacturers).
3, Integration into packing and dispatch areas for automated palletizing and forklift/ conveyor handoff.
4, Production upgrades to replace manual stacking and increase throughput in large-volume plants.
5, Custom metal building component manufacturers requiring tailored stacking solutions.
