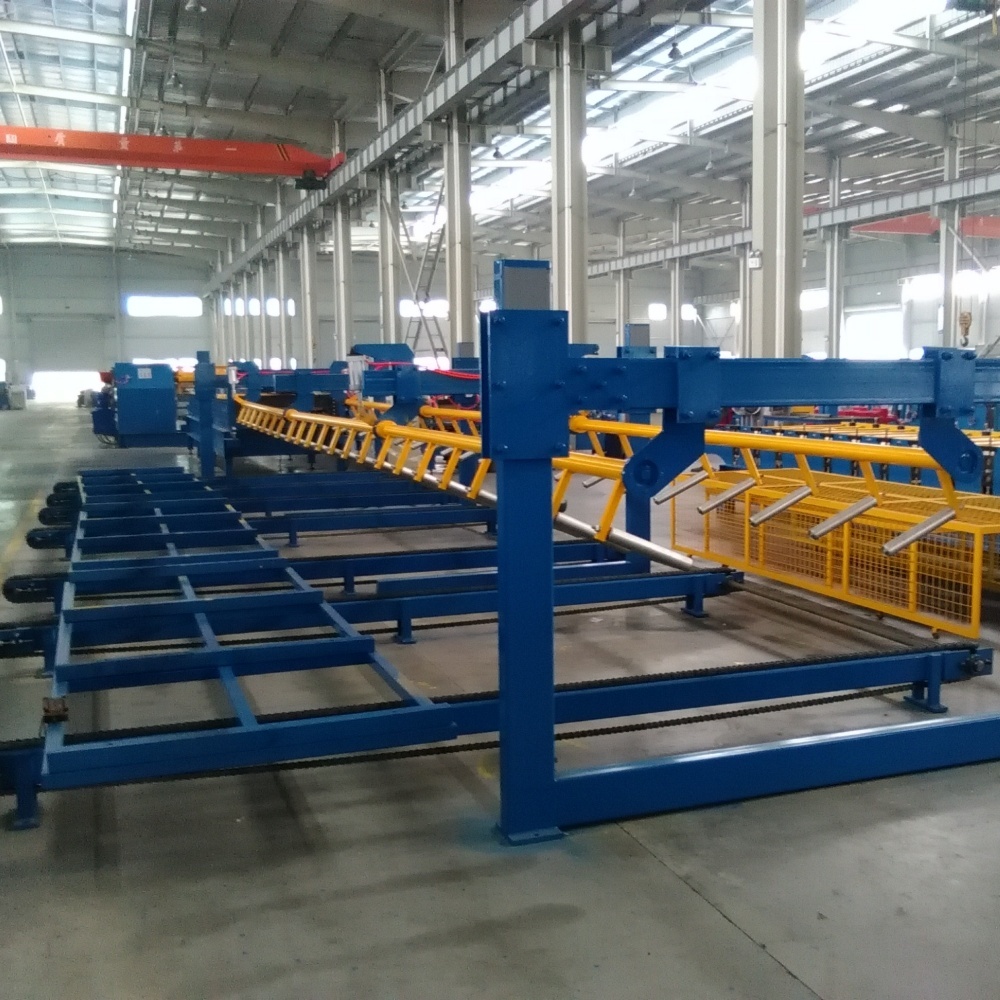

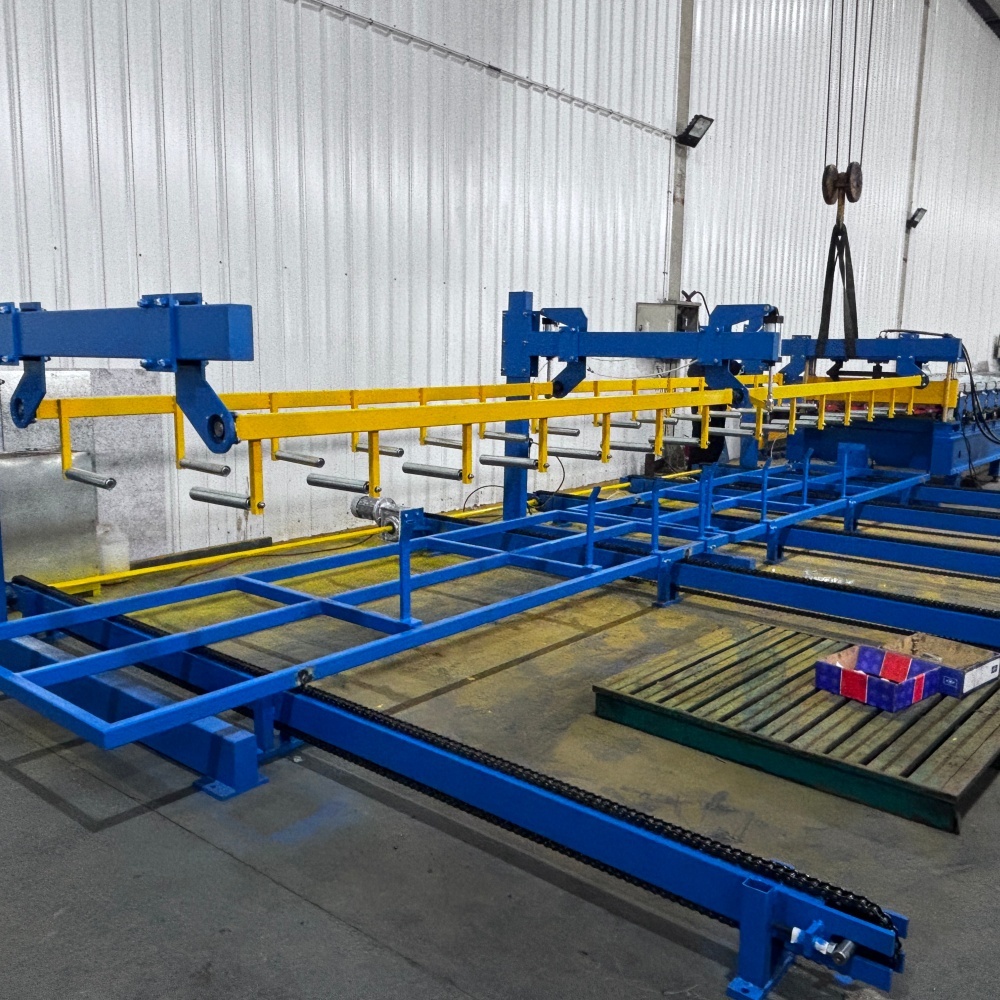

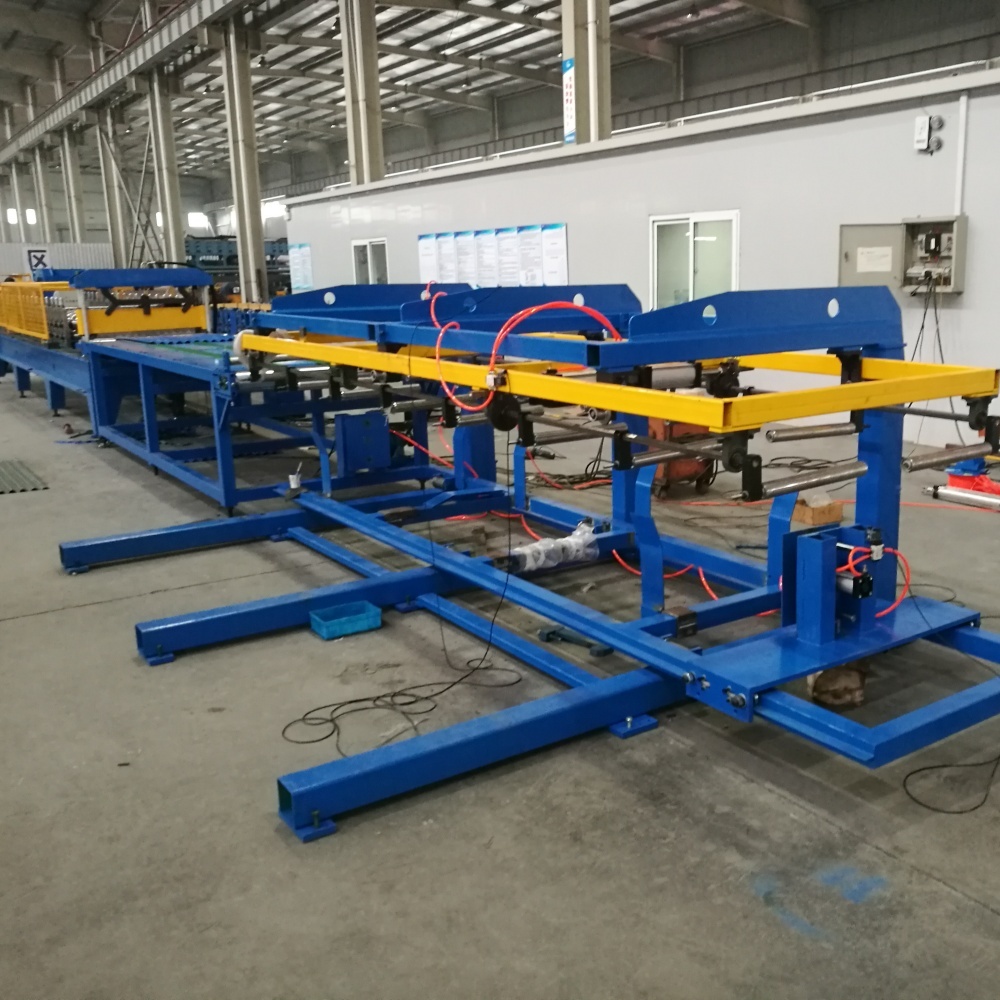

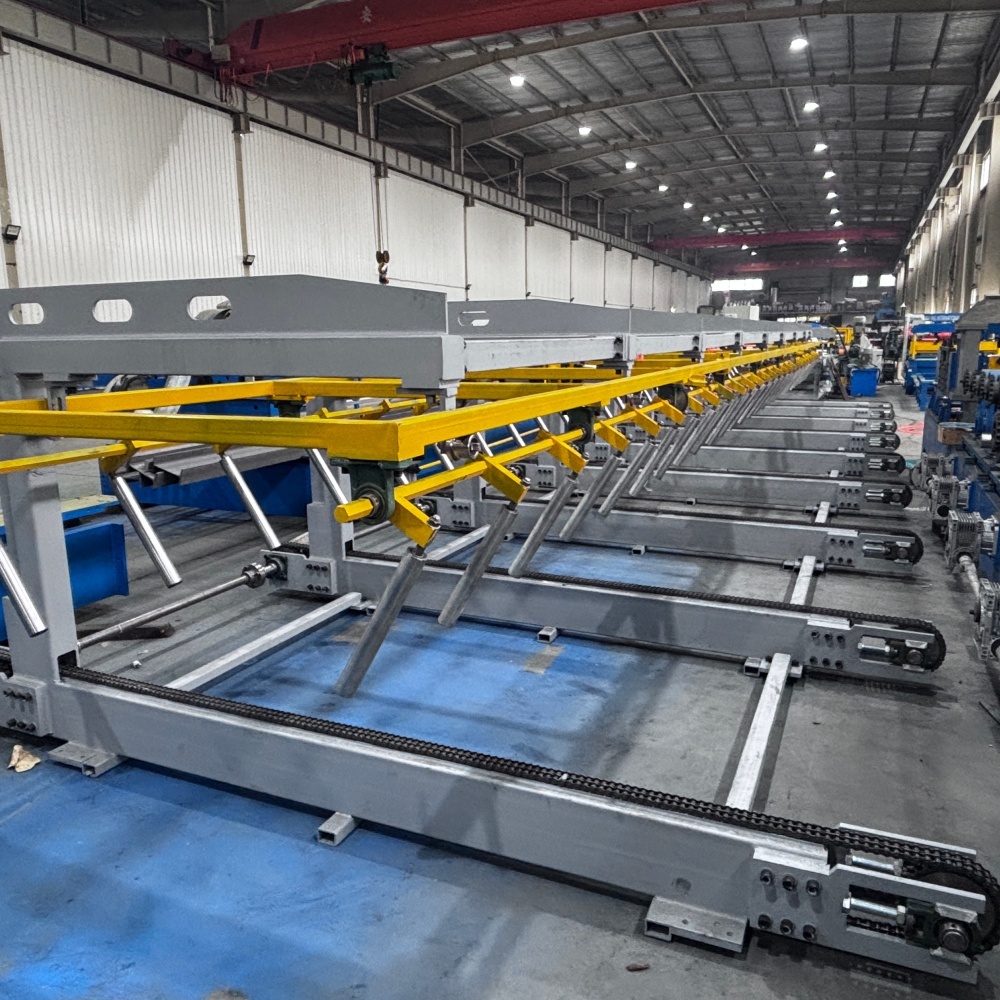

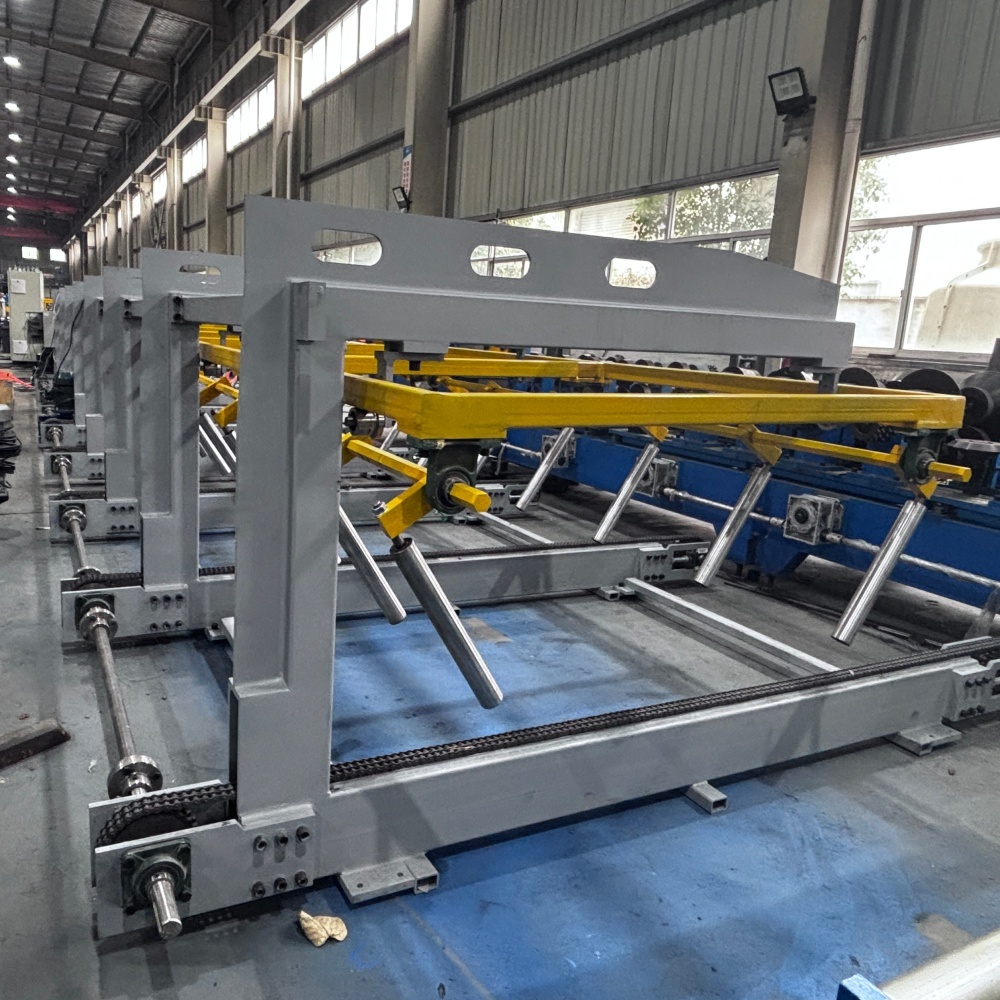

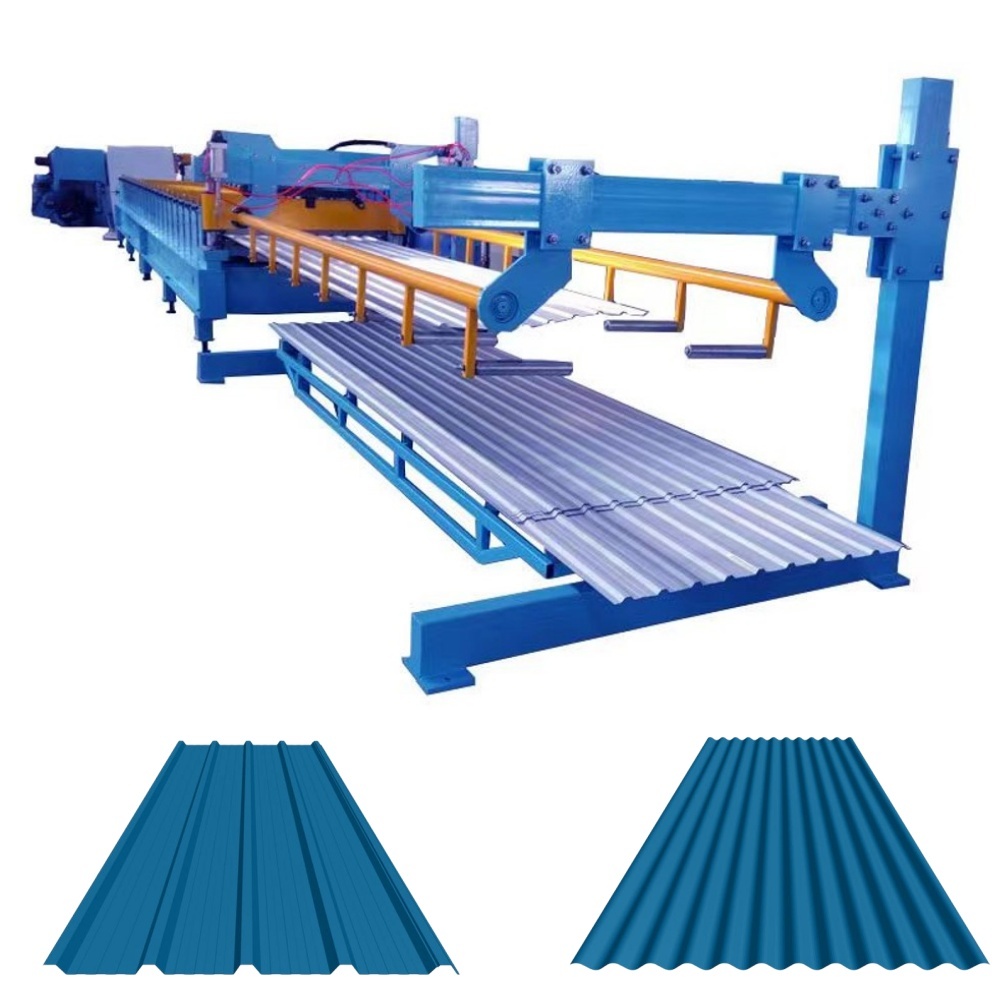

Roof & Wall Panel Stacking Machine — Designed for continuous roof/wall panel production lines, this reliable automatic palletizer stacks 0.3–0.7 mm thin metal panels efficiently. It minimizes material damage, cuts labor costs and enhances safety. Length (3–18 m, customizable) and package weight are tailored to customer needs, perfect for color-coated sheet and metal building component factories.
Specification:
1, Material thickness: roof and wall panels 0.3-0.7mm
2, Length range: 3–18 m (customizable for both stacking machine models)
3, Package weight: Customizable, commonly 1–3 tons (meets industrial stacking needs)
4, Line speed compatibility: 10–15 m/min (standard); 25–30 m/min (high-speed), adjustable to match upstream lines
5, Stacking modes: Single-column, multi-column, staggered; layer separators optional
6, Functions: Receive, dropping, alignment, discharge
7, End effector: Mechanical gripper / pneumatic clamp / soft-pad (for scratch prevention)
8, Safety features: Light curtain, safety doors, emergency stop; CE/ISO optional
9, Control system: PLC + HMI (Mitsubishi/Siemens/Panasonic optional), PLC interlock with upstream lines
10, Footprint: Tailored to line layout; on-site measurement recommended
11, Power supply: Typical 3Ph 380V 50/60Hz (final per configuration)
Key Features:
1，Panel Protection: Equipped with soft-pad clamps and buffering design to prevent scratches on 0.3–0.7 mm thin metal panels, ensuring product integrity.
2，Efficient Automation: PLC + HMI control enables automatic receiving, alignment and stacking, reducing labor input and improving production efficiency.
3，Strong Adaptability: Customizable length (3–18 m) and package weight, compatible with continuous roof/wall panel production lines of various specifications.
4，Safety & Reliability: Equipped with light curtain, safety doors and emergency stop; optional CE/ISO compliance for global export.
5，Easy Integration: Modular design allows seamless integration with upstream production lines and downstream packing/dispatch systems.
Application:
1，Metal roof/wall panel production lines (color-coated sheet manufacturers) — ideal for roof wall panel stacking machine
2，Packing/dispatch areas: Integrates with forklifts/conveyors to boost line efficiency
3，Large-volume plants: Replaces manual stacking to cut costs and increase throughput
4，Custom metal building component manufacturers: Tailored stacking solutions available
