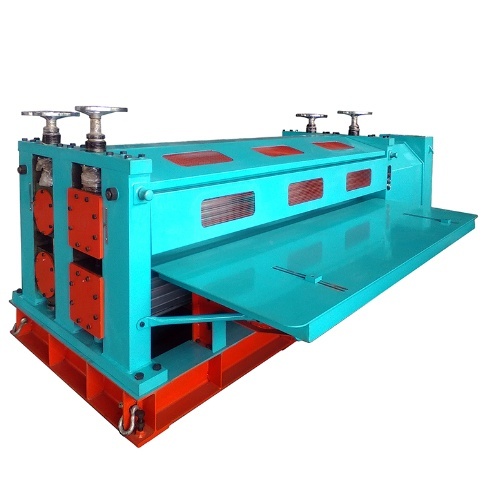

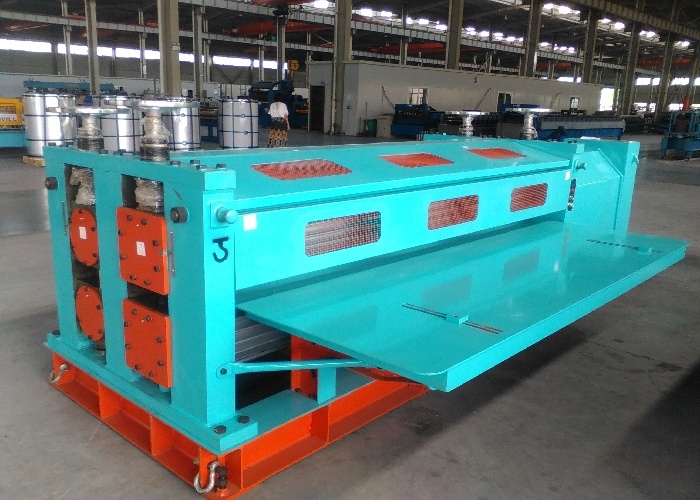

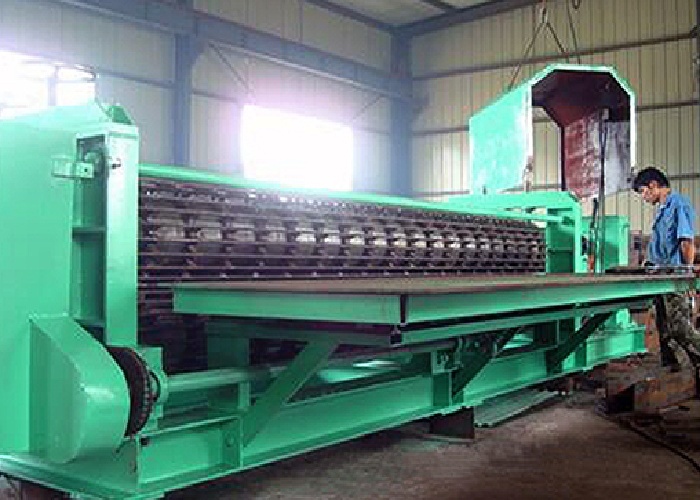

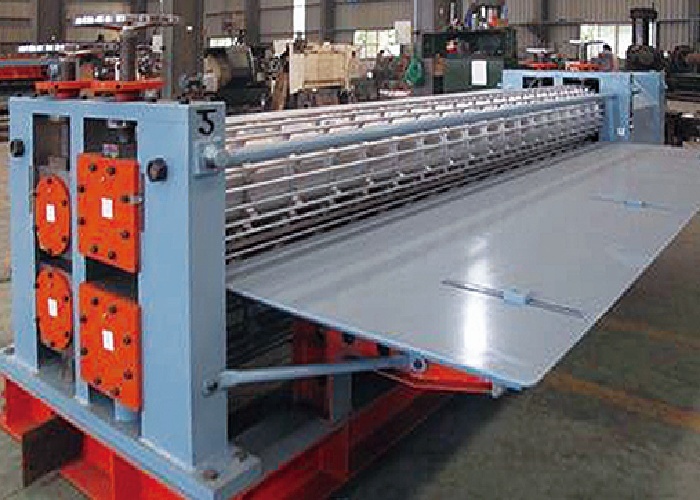

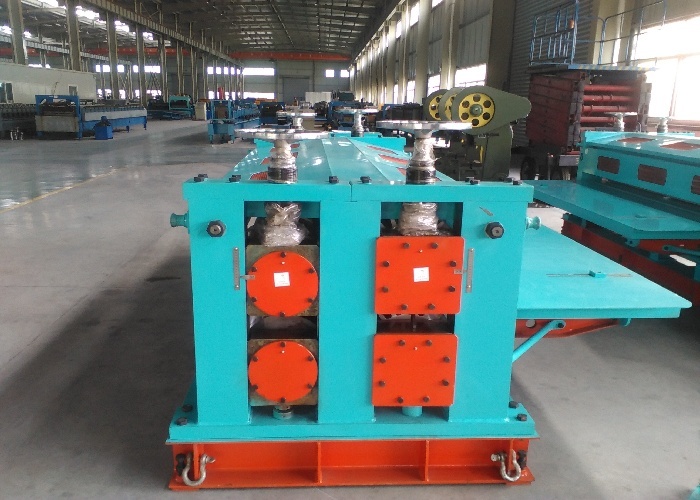

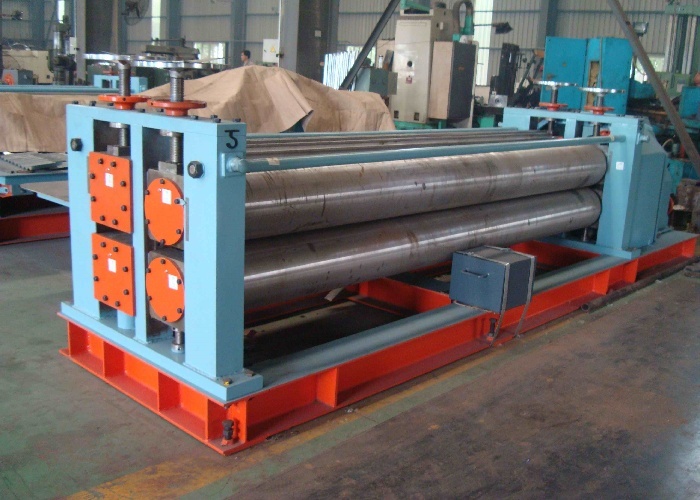

Barrel Corrugated Rolling Machine

No.GWFM800-900
Suitable for GI steel thickness 0.12-0.4mm, width 750-1000mm Sheet length fixed by machine, maximal 3500mm Can feed more than 8pcs to produce together Daily Capacity 48-50T/8 hours Corrugate waves and sizes are adjustable depends on material feeding w
Corrugated rolling machine:
  • Barrel Corrugated Rolling Machine
  • Barrel Corrugated Rolling Machine
  • Barrel Corrugated Rolling Machine
  • Barrel Corrugated Rolling Machine
  • Barrel Corrugated Rolling Machine
  • Barrel Corrugated Rolling Machine
  • Barrel Corrugated Rolling Machine
  • Barrel Corrugated Rolling Machine

Description

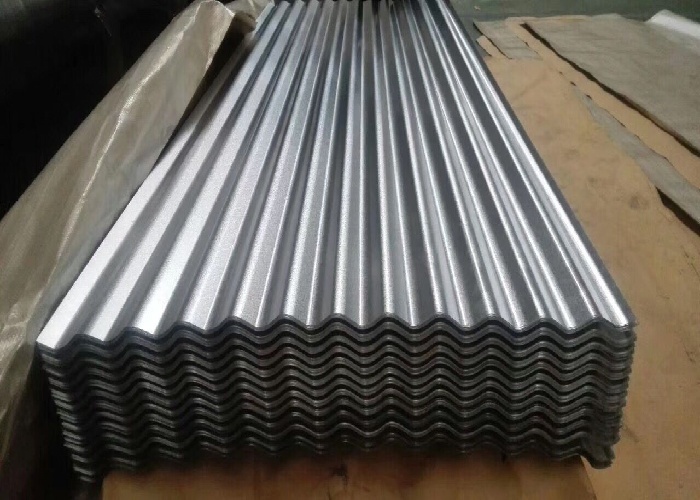

The corrugated roof forming machine is suitable for think thickness, especially for steel sheet thickness 0.11-0.16mm, most suitable for Africa market, widely used for roof and wall panels. Customer can feed 5-8 pieces sheet together to produce at a time, very fast speed, very big production capacity, very good wave shapes.
WORK FLOW
Feeding
Roll Forming
Sheet to Support Table
QUICK DETAIL
MODEL GWFM800-900 OPERATION Touch screen and button
MATERIAL TYPE Galvanized steel sheet HYDRAULIC SYSTEM PRESSURE 12Mpa
MATERIAL THICKNESS 0.12-0.4mm TOTAL THICKNESS 0.4mm for more than 1 piece
MATERIAL FEEDING WIDTH 750-1000mm WORKING SPEED 9-12 times/min
CAPACITY 48-50 tons/8 hour WARRANTY 1 year
ROLLER DRIVEN TYPE Motor CERTIFICATE ISO, CE

PACKING: Packed by bundle or as customers' requirements and shipped by container.

PAYMENT TERM: TT or irrevocable LC at sight

DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.
