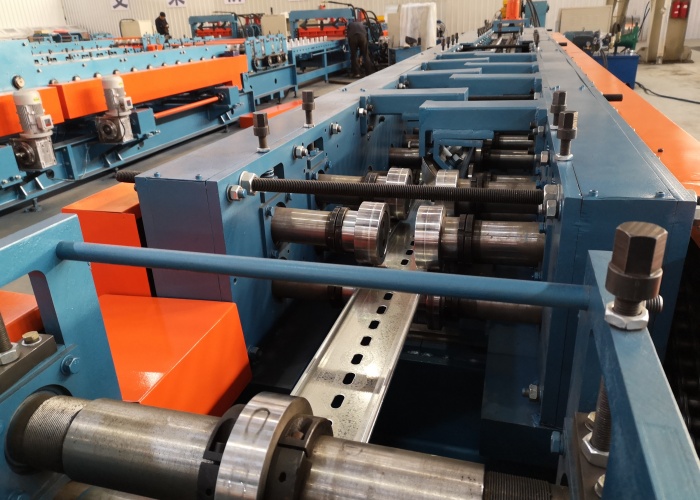

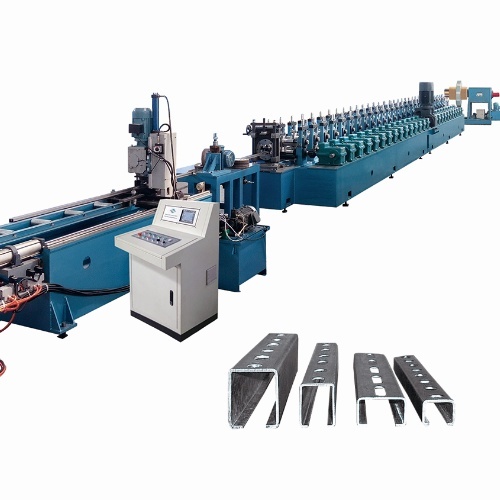

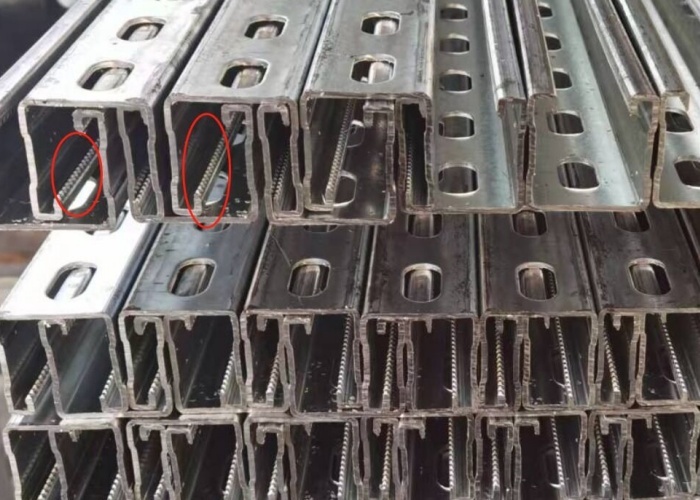

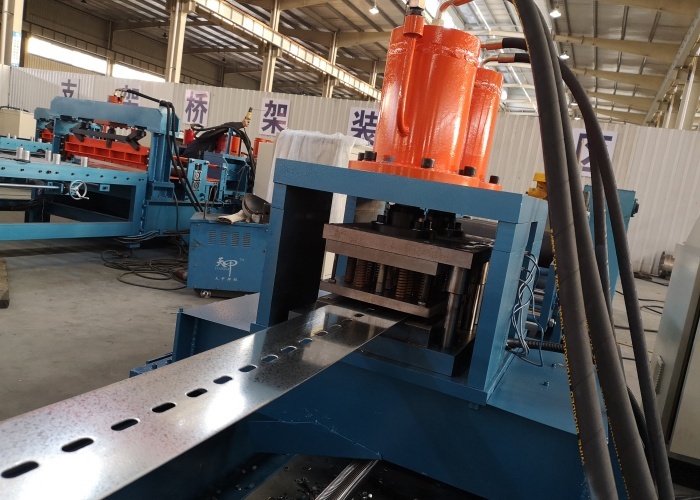

This metal bracket forming equipment is a multi-functional bracket manufacturing machine. It can simultaneously meet the production requirements of brackets with specifications of 41*41mm, 41*21mm and 41*61mm. The punching is carried out by an independent punching press or a tracking punching device. This bracket product is widely used in photovoltaic support systems, cable tray systems and pipe support systems.
| MODEL | GWFM41*41/21 | MATERIAL TYPE | Galvanized steel |
| MATERIAL THICKNESS | 2.0-2.5mm | MATERIAL STRENGTH | 235-345Mpa |
| SIZE | 41*41mm, 41*21mm, 41*61mm, 41*81mm | FEEDING WIDTH | 93-219mm |
| PUNCHING WAT | Punching machine or punching device | SIZE CHANGEING WAY | By spacer or automatic |
| WORKING SPEED | 0-12m/min | SIZE TOLERANCE | +/-2mm |
| PUNCHING DIE MATERIAL | SKD11 | CONTROL SYSTEM | PLC |

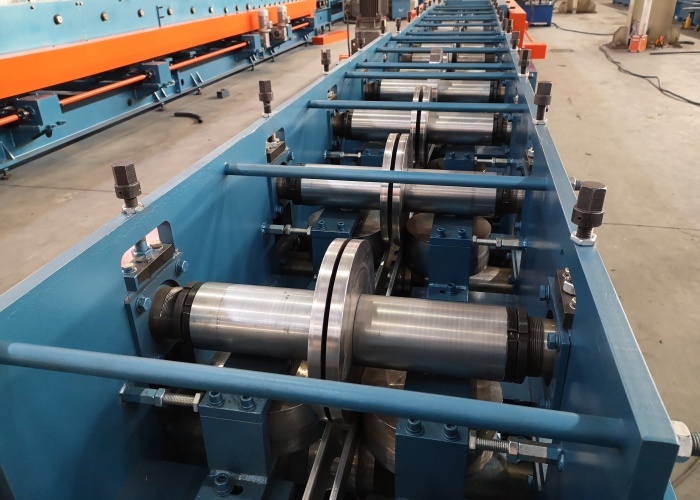

| ROLLER MATERIAL | Cr12 mold steel | CUTTER MATERIAL | Cr12MoV with quenching treatment |
| DIMENSION | About 20000*1000*1500mm (L*W*H) | TOTAL WEIGHT | About 15 tons |
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP+1*20GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.
