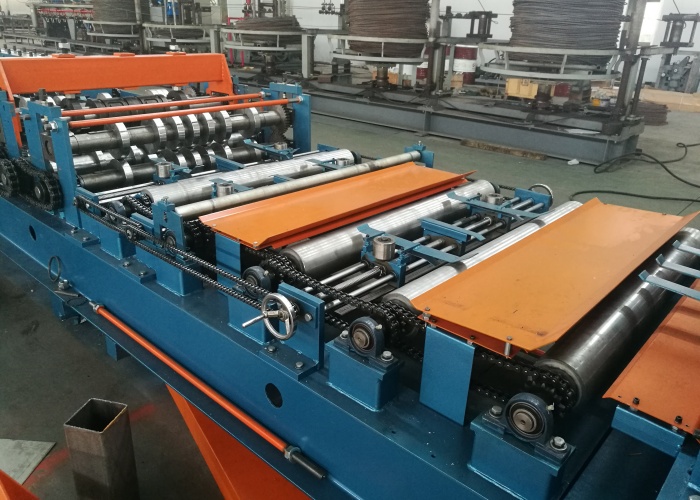

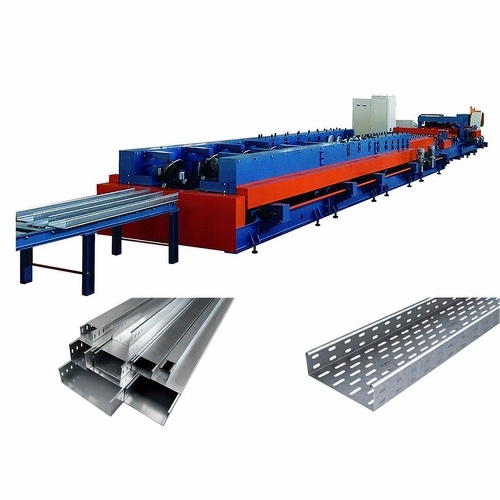

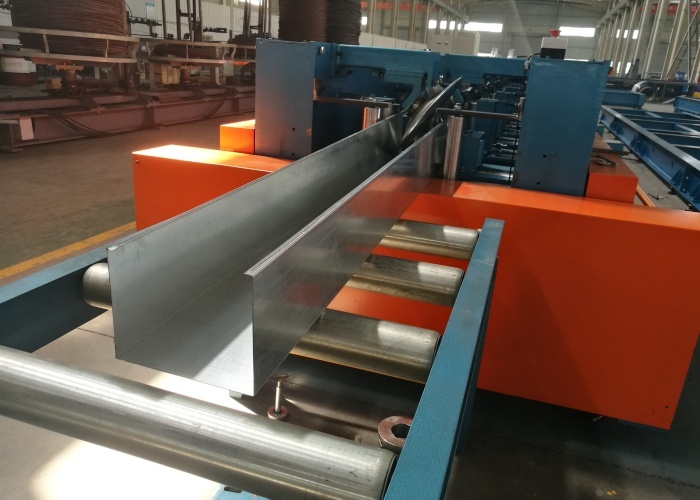

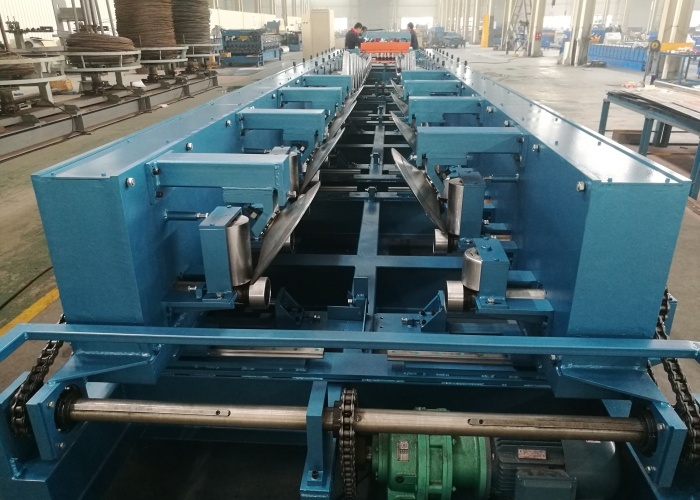

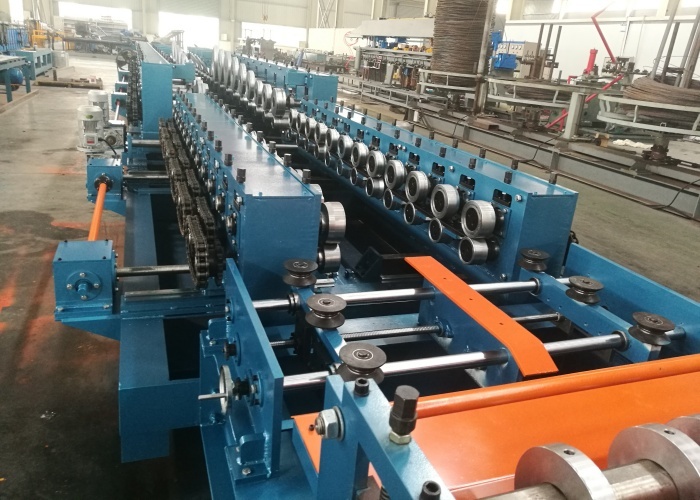

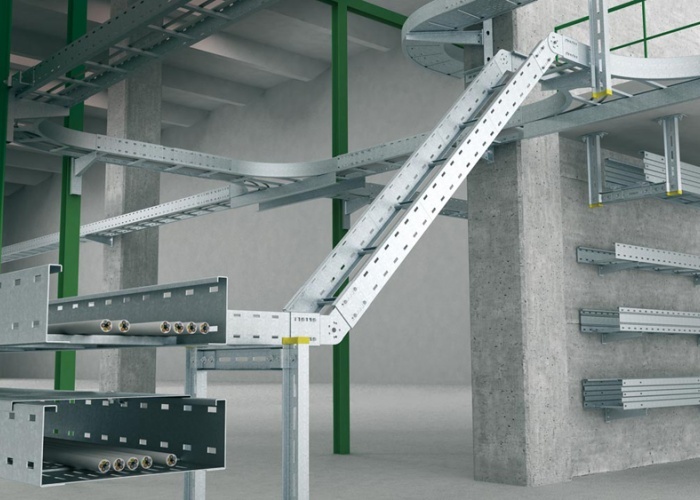

A cable tray forming machine is a specialized equipment designed to fabricate cable trays. This machine automates the production process, transforming metal coils into standardized or custom-shaped trays through a series of steps. It boosts efficiency, reduces manual labor, and accommodates various tray types (ladder, solid-bottom, perforated) by switching tooling. Widely adopted in electrical engineering and infrastructure projects.
| MODEL | GWFM100-600 | MATERIAL TYPE | Galvanized steel |
| MATERIAL THICKNESS | 0.6-2.0mm | MATERIAL STRENGTH | 235-345Mpa |
| CABLE TRAY WIDTH | 100-600mm | CABLE TRAY HEIGHT | 50-200mm |
| MATERIAL FEEDING WIDTH | As design | SIZE CHANGEING WAY | Full automatic |

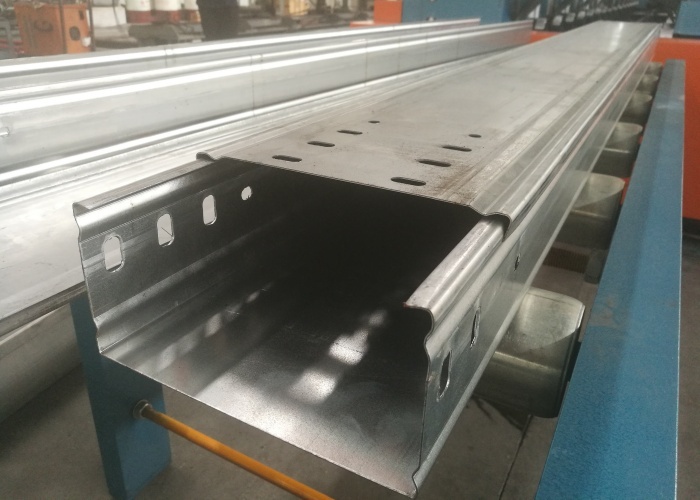

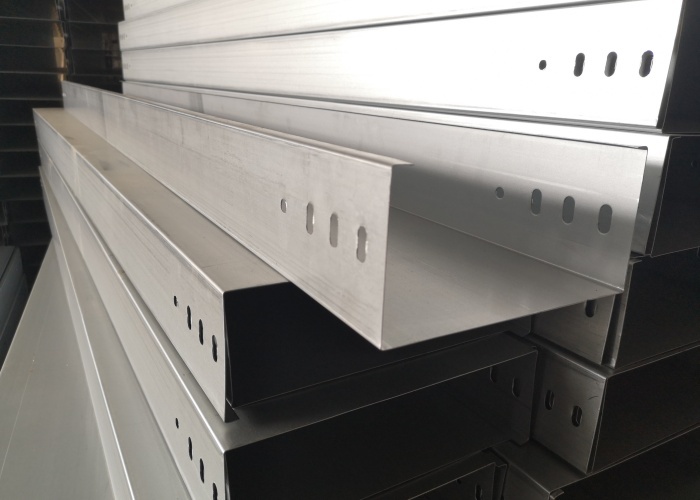

| CABLE TRAY TYPE | Solid-bottom, ladder perforated | SIZE TOLERANCE | +/-1mm |
| WORKING SPEED | 0-12m/min | CONTROL SYSTEM | PLC |
| ROLLER MATERIAL | #45 forged steel with hard chromed treatment | CUTTER MATERIAL | Cr12MoV with quenching treatment |
| DIMENSION | About 20000*2500*1500mm (L*W*H) | TOTAL WEIGHT | About 30 tons |
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 2*40GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.
