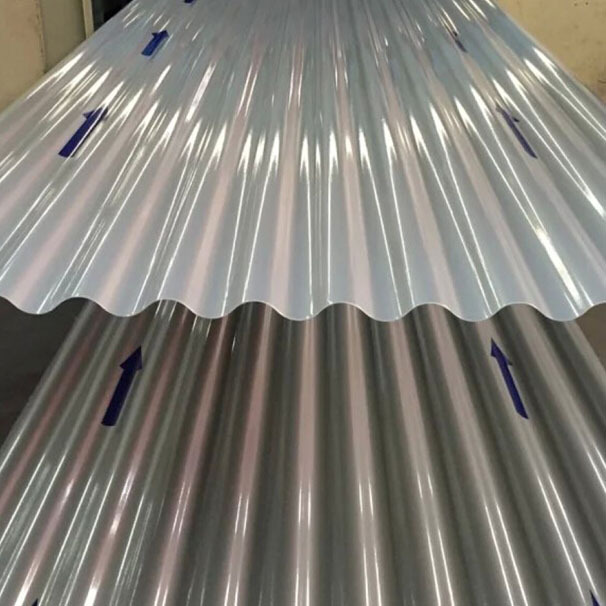

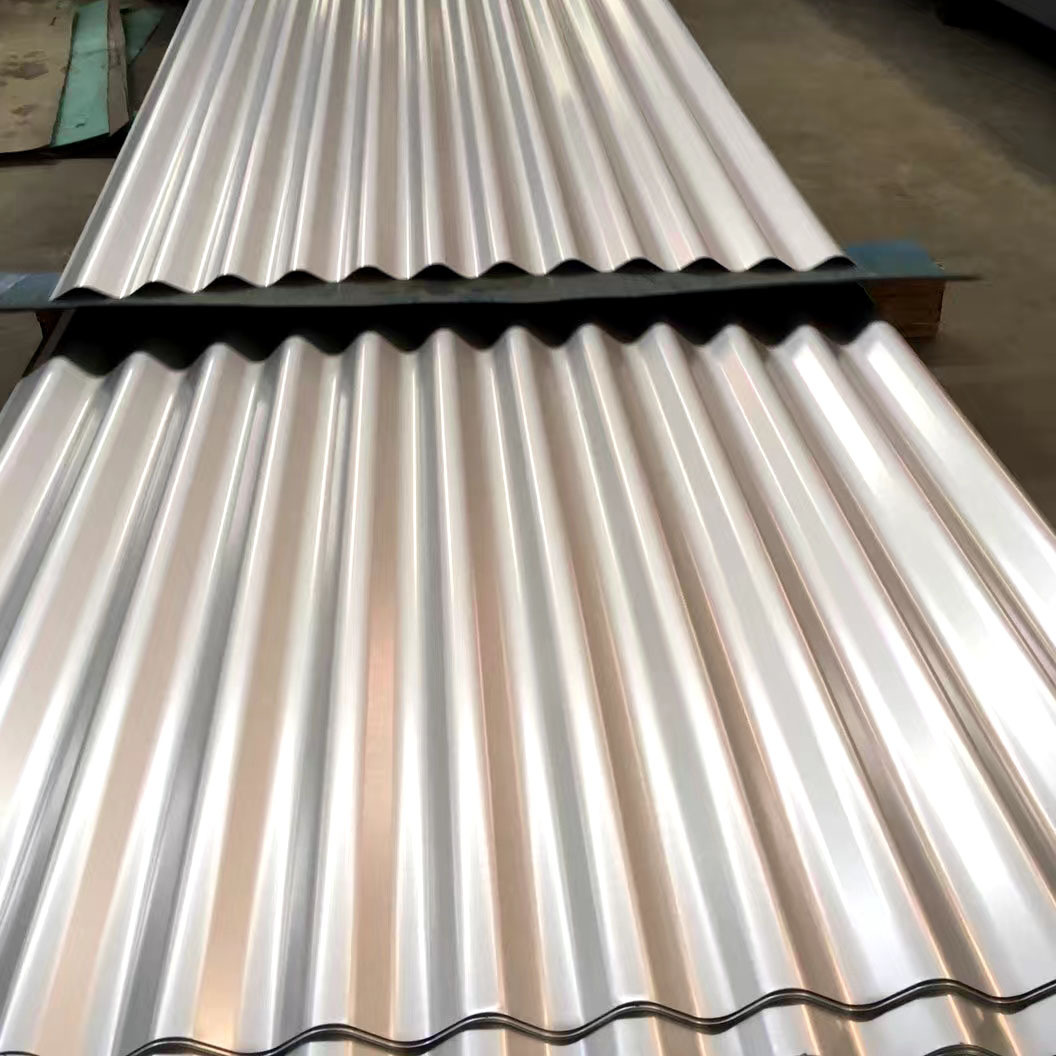

The metal roof panels produced by cold roll forming machine are widely used in factories, warehouses, residences and other places. They are simple, fast, economical, and convenient for construction. We can design different kinds of profiles and fittings for machine as per customers' requirements.
Measuring Length &Shearing
| MODEL |
GW18-76-836 |
OPERATION |
Touch screen and button |
| MATERIAL TYPE |
Color steel sheet |
HYDRAULIC SYSTEM PRESSURE |
12Mpa |
| MATERIAL THICKNESS |
0.3-0.7mm |
MAIN MOTOR POWER |
4Kw |
| MATERIAL FEEDING WIDTH |
1000mm/1200mm/1250mm |
HYDRAULIC MOTOR POWER |
3Kw |
| MATERIAL YIELD STRESS |
235-345Mpa |
DIMENSION |
About 8500*1500*1500mm |
| MAX. FORMING SPEED |
0-30m/min |
WEIGHT |
About 6T |
| ROLLER MATERIAL |
45# steel with hard chromed treatment |
WARRANTY |
1 year |
| ROLLER DRIVEN TYPE |
Chain / Gear-box transmission |
CERTIFICATE |
ISO, CE |
| CONTROLLER |
PLC |
|
|
PACKING
Packed by bundle or as customers' requirements and shipped by container.
Functional Application and Target Users
Engineered for manufacturers and industrial fabricators, this corrugated roll forming machine for sale provides an efficient solution to producing consistent metal roof panels from color steel sheets. It targets mid-scale operations requiring reliable, customizable roof panel outputs for warehouses, factories, and commercial buildings. The system supports multiple profile options and can be adapted to varying roof sheeting requirements, making it suitable for construction and architectural metalwork enterprises focused on high-quality, precise roll-formed outputs.
Engineering Specifications and Measurable Performance

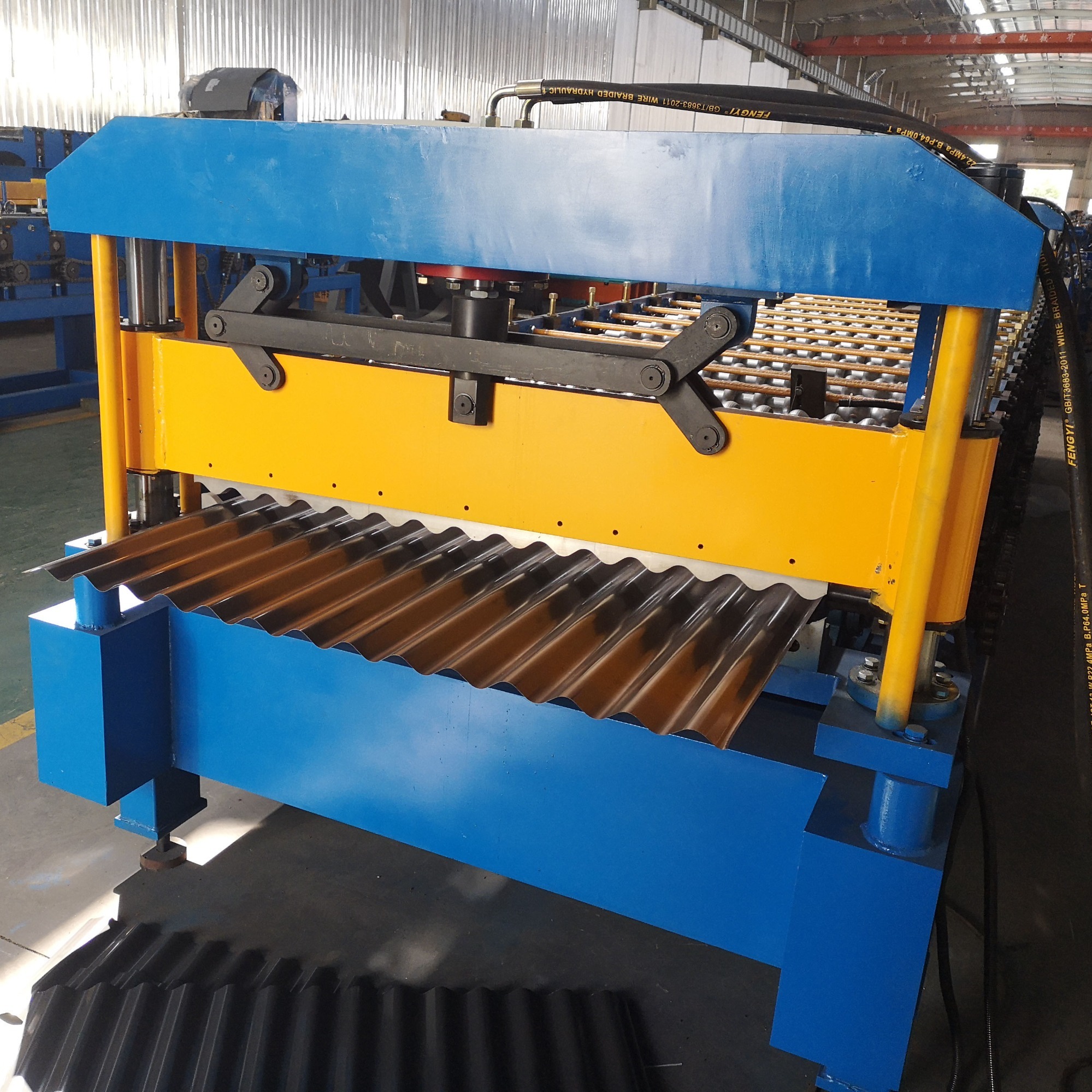

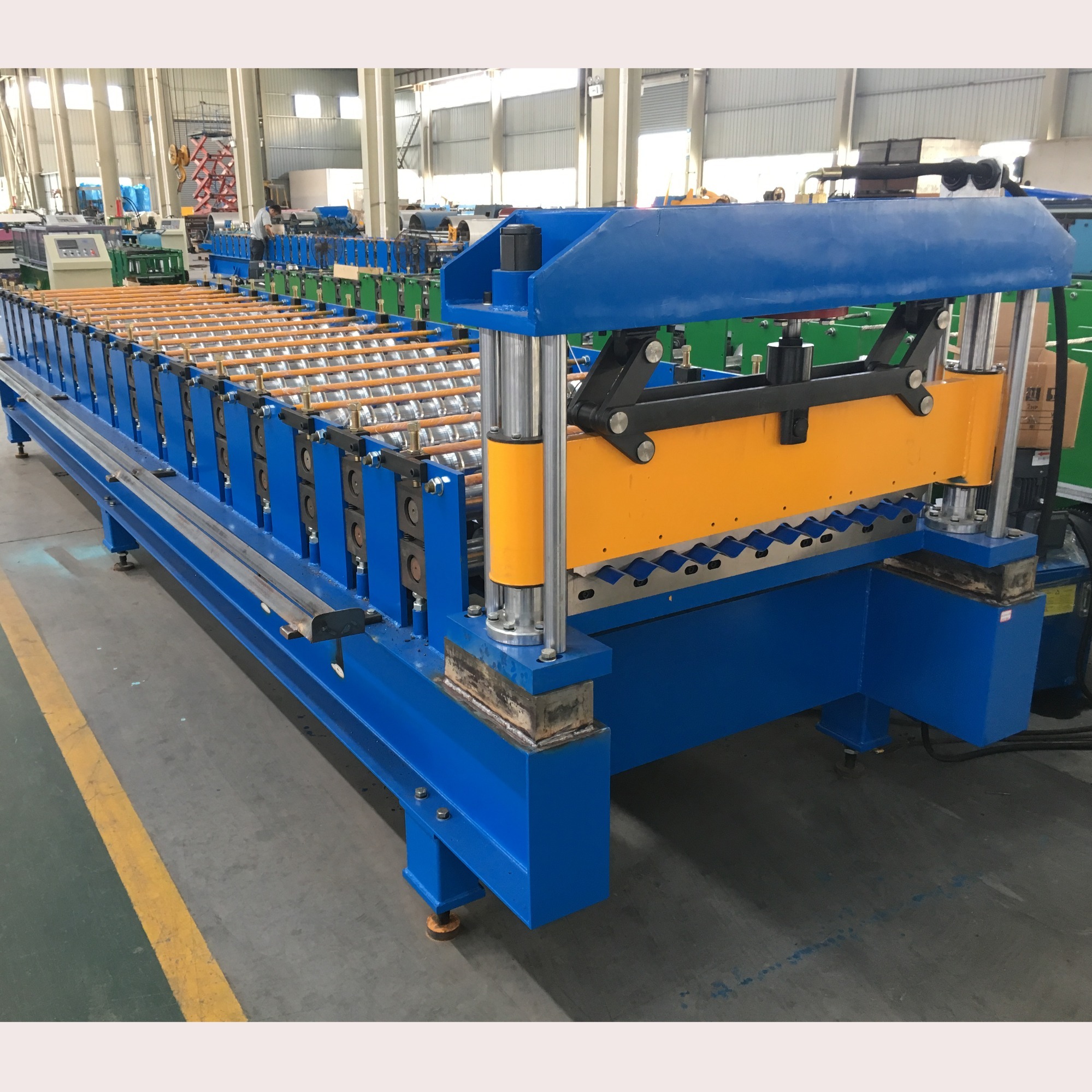

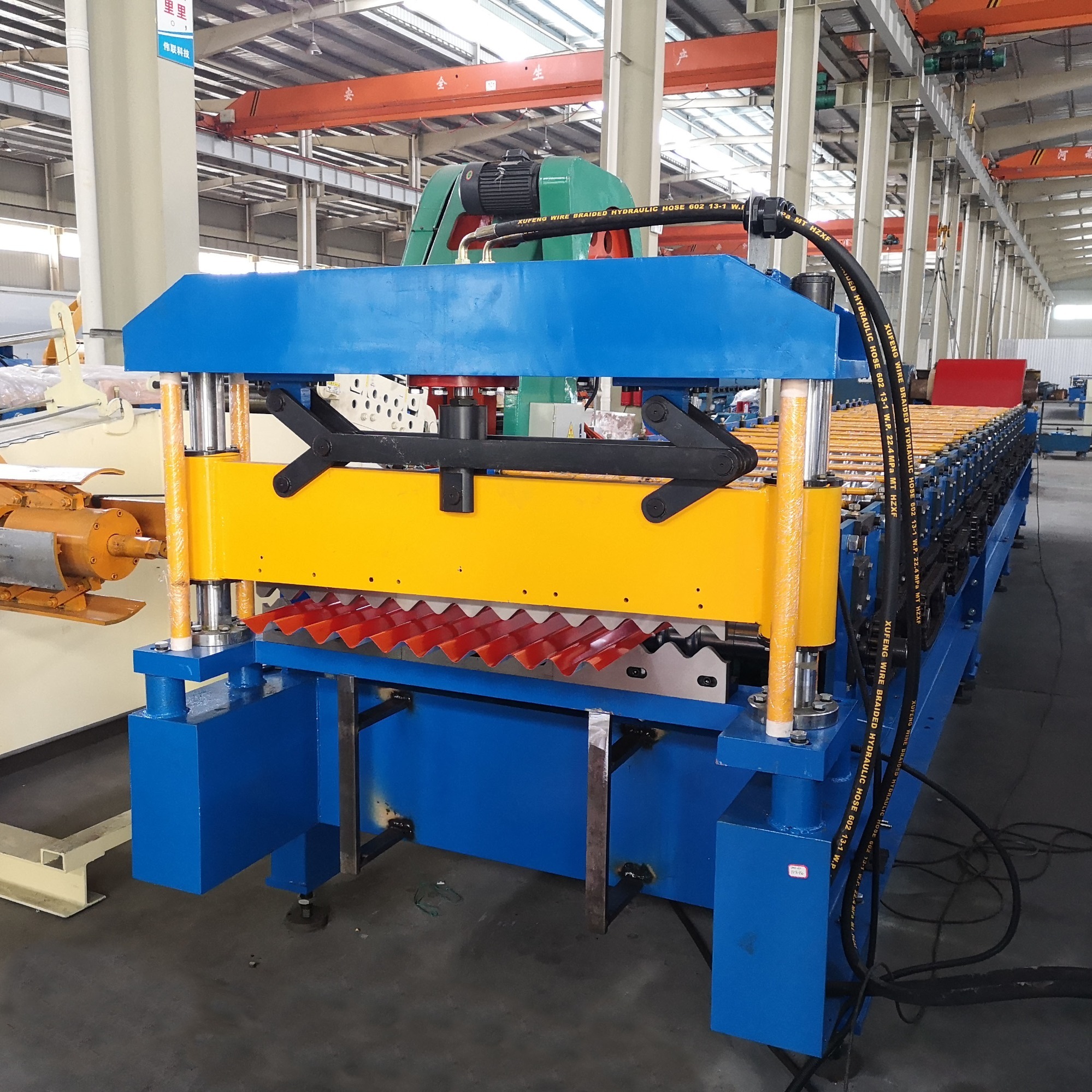

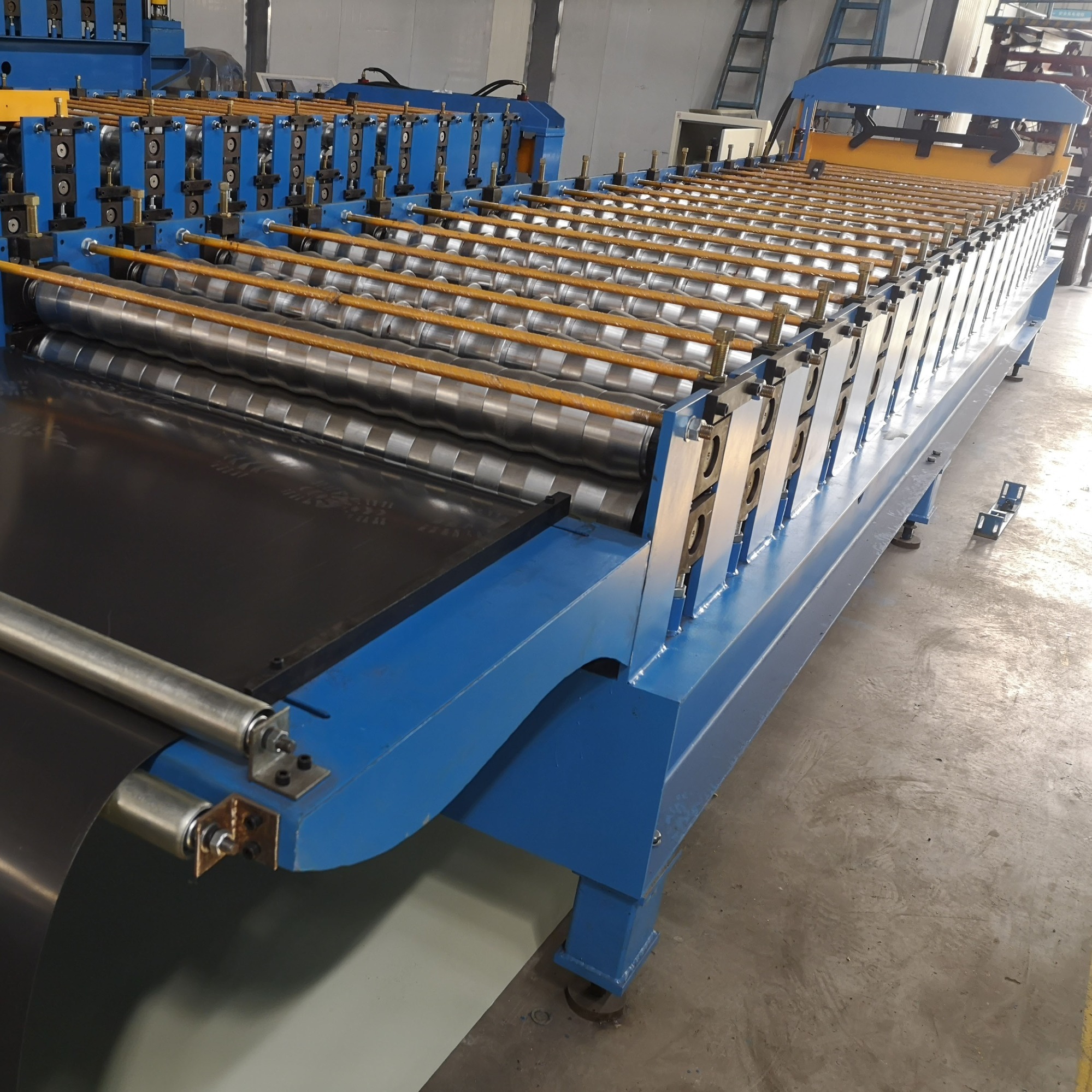

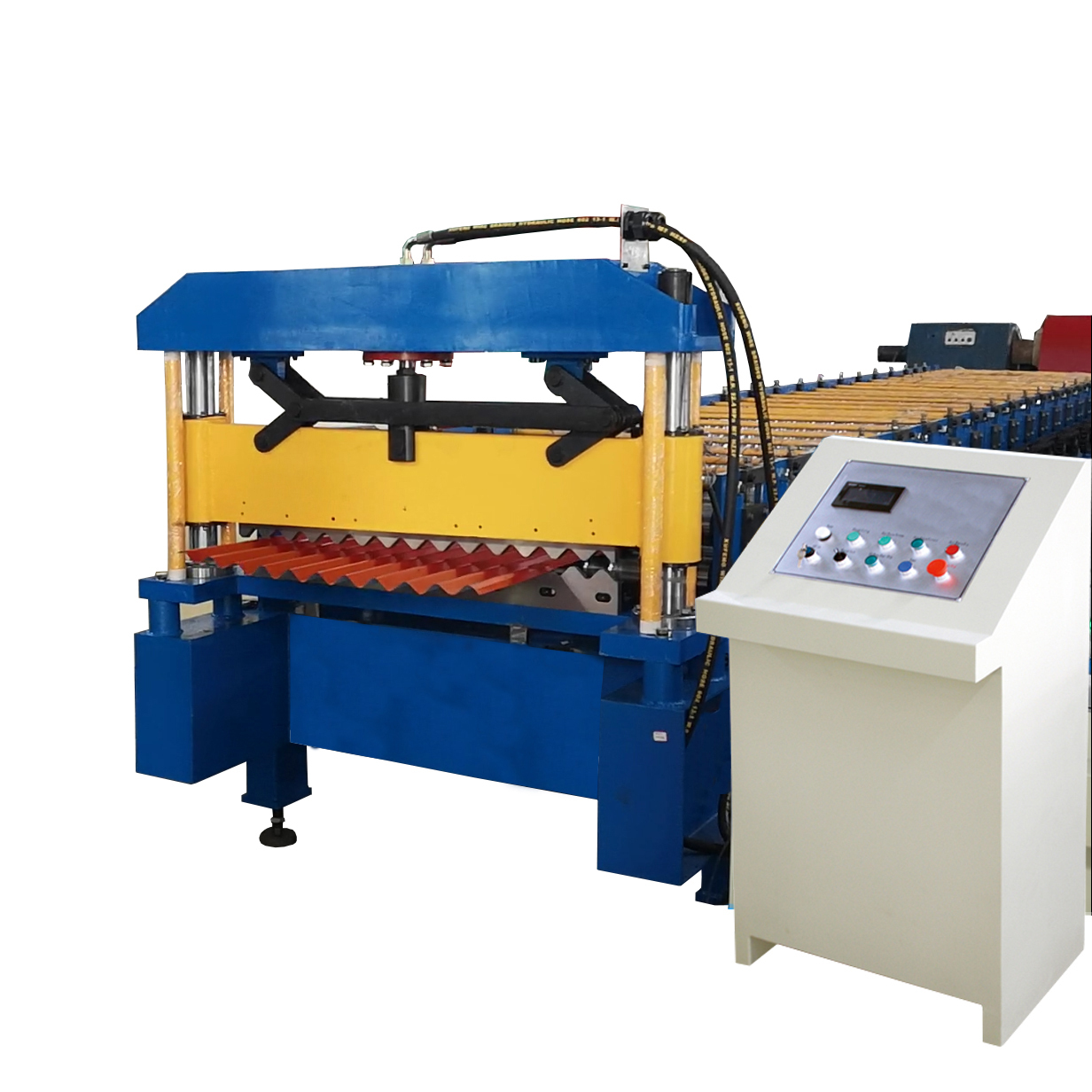

This corrugated roof roll forming machine integrates a hydraulic forming unit powered by a 4 kW main motor and a 3 kW hydraulic motor. It accommodates feed widths of 1000, 1200, and 1250 mm, handling sheet thicknesses between 0.3 and 0.7 mm. The rollers, made from 45 steel with hard chrome plating, ensure durability under a forming speed of up to 30 m/min, driven by a chain and gear-box transmission system. With a compact dimension footprint and ISO/CE certifications, the unit assures compliance with industrial standards while delivering stable operation and easy maintenance.
Industry Integration and Real-World Utility
The machine’s adaptability enables metal roofing producers to respond to diverse project needs, including new builds and renovations. Its capacity for custom profile development supports manufacturers in producing both standardized and bespoke roof sheets that meet stringent structural and aesthetic requirements. Integrated into metal fabricating lines, this corrugated sheet roll forming machine enhances productivity and maintains consistent quality in roofing, facilitating compliance with regulatory standards and minimizing material waste in industrial applications.
Product Advantages
Design and Structural Innovation Benefits
The layout of the corrugated roll forming machine embraces modularity, allowing for straightforward customization of roof profiles and fittings that meet client specifications. The hydraulic system maintains constant pressure at 12 MPa for precise shaping, while hardened chromed rollers increase wear resistance, sustaining long service life. This system architecture combines industrial-grade components and flexible configuration options, ensuring seamless integration into existing production lines and adaptability across different roofing metal types and sheet thicknesses.
Performance Efficiency and End-User Value
The machine delivers significant production efficiency with forming speeds reaching 30 m/min, minimizing downtime through easy operation governed by a PLC control system. It offers rapid profile switching capabilities, reducing lead times for prototype runs or varied batch sizes. The user-oriented design includes safety features and straightforward maintenance protocols, enabling operators to maintain consistent output quality and optimize ROI. This makes the corrugated roof sheet roll forming machine particularly valuable for manufacturers requiring reliable performance and adaptability.
Use Scenarios
Roof Panel Prototyping and Development Facilities
Within R&D environments focused on architectural metal panels, this corrugated roof roll forming machine serves as a vital asset for rapid profile prototyping and validation. It allows engineers to efficiently create and test varied sheet profiles, ensuring compatibility with design intent and structural integrity standards. By integrating with design software and fabrication workflows, this machine accelerates product development cycles while maintaining compliance with industry quality control benchmarks.
Mid-Scale Metal Roofing Production Lines for Renovations
In metal roofing fabrication facilities dedicated to renovation projects, this corrugated sheet roll forming machine provides customized short-run production capabilities that meet specific retrofit requirements. Its hydraulically controlled forming mechanism guarantees precision, essential for compliance with current building code regulations. Positioned within a streamlined production line, it facilitates quick model changeovers and consistent output, helping contractors respond flexibly to on-site demands and reducing material waste.
About Us
Hangzhou Gonawell Machinery Co., Ltd. specializes in steel roll forming equipment with over 15 years of experience. We deliver reliable metal roof and wall panel solutions certified by ISO and CE. Contact us now for your custom quote or technical consultation to support your next steel structure project.
FAQ
What materials and thickness ranges can the Cold Steel Roof Sheet Making Machine handle?
The machine processes color steel sheets with thicknesses from 0.3 to 0.7 mm, accommodating widths of 1000, 1200, or 1250 mm. This flexibility supports various roofing applications, including factory and residential panels made using the corrugated roll forming machine technology.
Can the profiles and sizes of roof sheets be customized?
Yes, the machine supports profile and fitting customization per client specifications. It can produce different panel shapes and widths tailored to project requirements, ensuring precise outcomes with the corrugated roof roll forming machine system for specialized roofing needs.
What are the key considerations for installation and operation?
Installation requires stable foundation support for the machine’s roughly 6-ton weight and dimensions about 8500 × 1500 × 1500 mm. Operation is controlled via PLC with a hydraulic system at 12 MPa, enabling forming speeds up to 30 m/min. Trained operators should follow maintenance guidelines for durability.
What warranty and after-sales support does the company provide?
Hangzhou Gonawell offers a one-year warranty covering manufacturing defects for the corrugated sheet roll forming machine. Technical support and spare parts supply are available post-purchase to ensure consistent performance and longevity of your roofing production equipment.
