High-Speed Floor Deck Forming Machine – Build Stronger, Faster, and Smarter

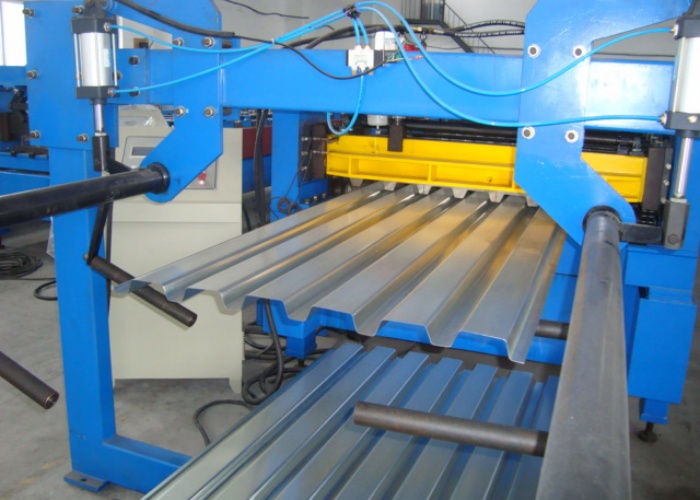

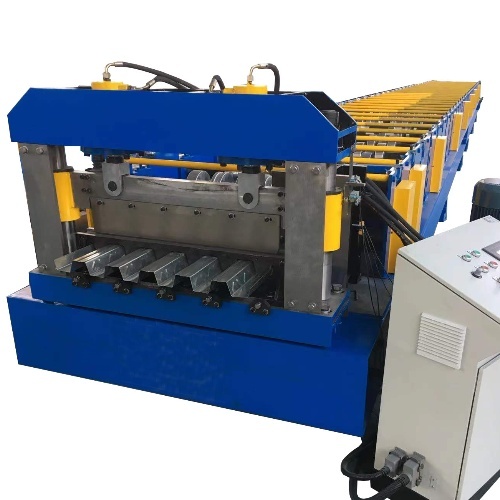

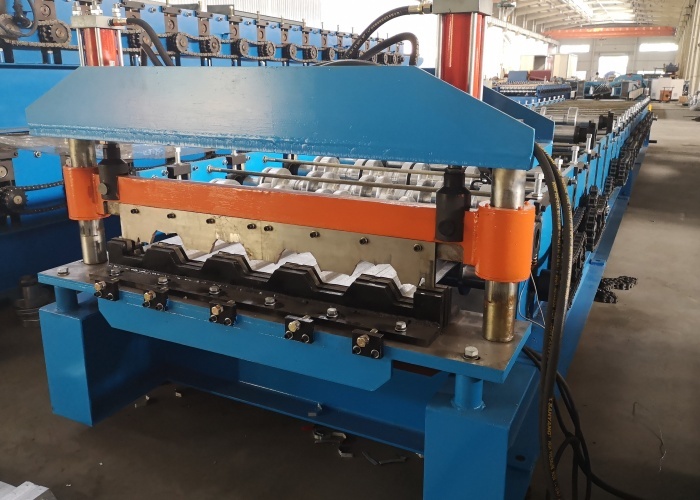

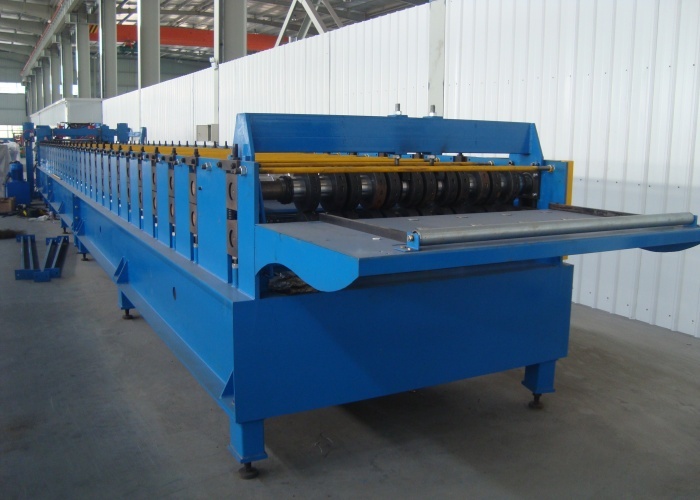

Our floor deck forming machine is engineered for precision and efficiency in producing high-quality metal floor decks for commercial, industrial, and residential construction. With automated roll forming technology, it delivers consistent, durable decking profiles with ±2mm tolerance, ensuring perfect fit and structural integrity.
| MODEL | GWFM75-305-915 | OPERATION | Touch screen and button |
| MATERIAL TYPE | Color steel sheet | HYDRAULIC SYSTEM PRESSURE | 12Mpa |
| MATERIAL THICKNESS | 0.8-1.5mm | MAIN MOTOR POWER | 18.5-30Kw |
| MATERIAL FEEDING WIDTH | 1200mm/1250mm | HYDRAULIC MOTOR POWER | 5.5-7.5Kw |
| MATERIAL YIELD STRESS | 235-345Mpa | DIMENSION | About 15000*1500*1500mm |
| MAX. FORMING SPEED | 0-15m/min | WEIGHT | About 10T |
| ROLLER MATERIAL | GCr15 with hard chromed treatment | WARRANTY | 1 year |
| ROLLER DRIVEN TYPE | Chain / Gear-box transmission | CERTIFICATE | ISO, CE |
| CONTROLLER | PLC |
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.
