High Efficiency: speed 0-15m/min or high speed 0-30m/min High Precision: roller processed by CNC machine Long Life Machine: 15 years long life Easy Operate: PLC controller, Mitsubishi brand Excellent Services: installation and training, lifetime servi

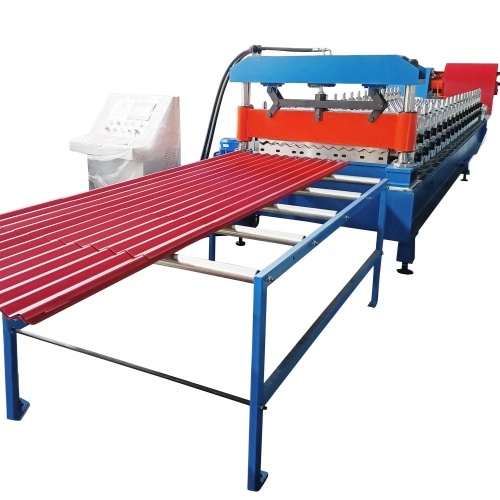

Roof sheet making machine:

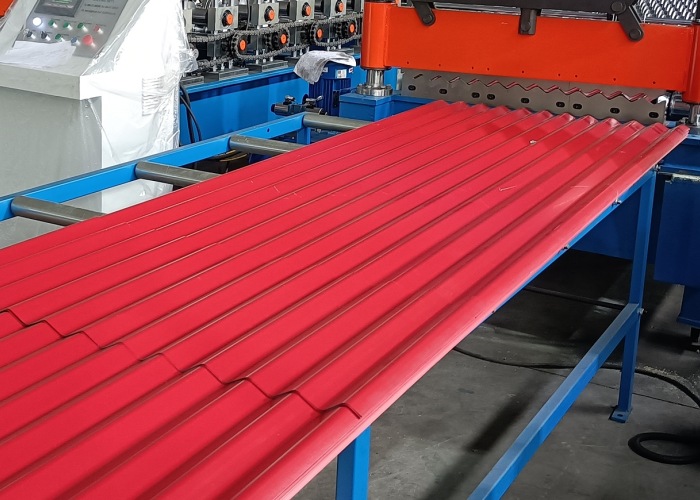

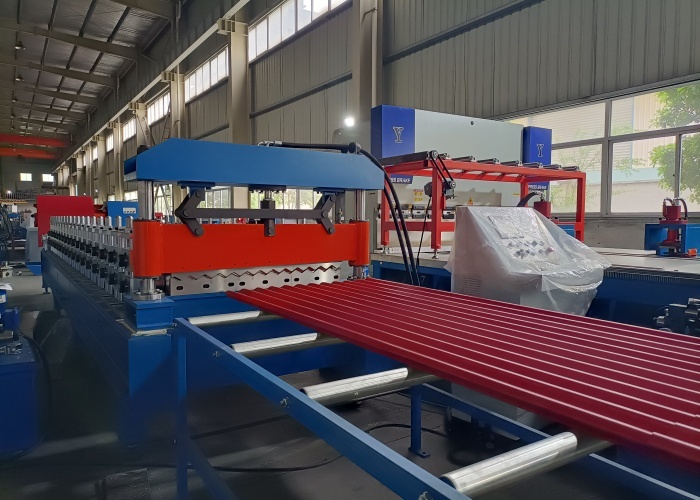

Steel Roof Forming Machine Manufacturer:
High-Speed Metal Roof Panel Roll Forming Equipment:
Our steel roof forming machines are designed for high-speed production of corrugated roofing panels.
Heavy-duty construction for long-lasting performance with minimal maintenance.
Adjustable roll forming system supports various material thicknesses (0.3mm-0.7mm) and panel profiles.
PLC control & touchscreen interface for easy operation and precision forming.
Automatic cutting & stacking for efficient workflow.
CE & ISO certified, ensuring safety and international compliance.
WORK FLOW
Uncoiling

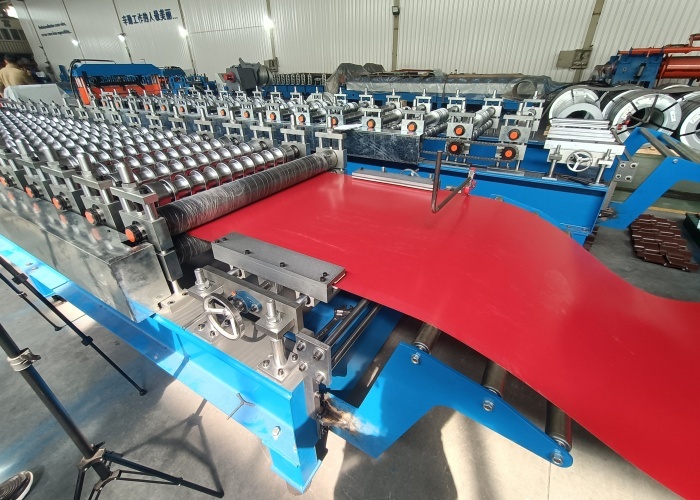

Sheet Guiding

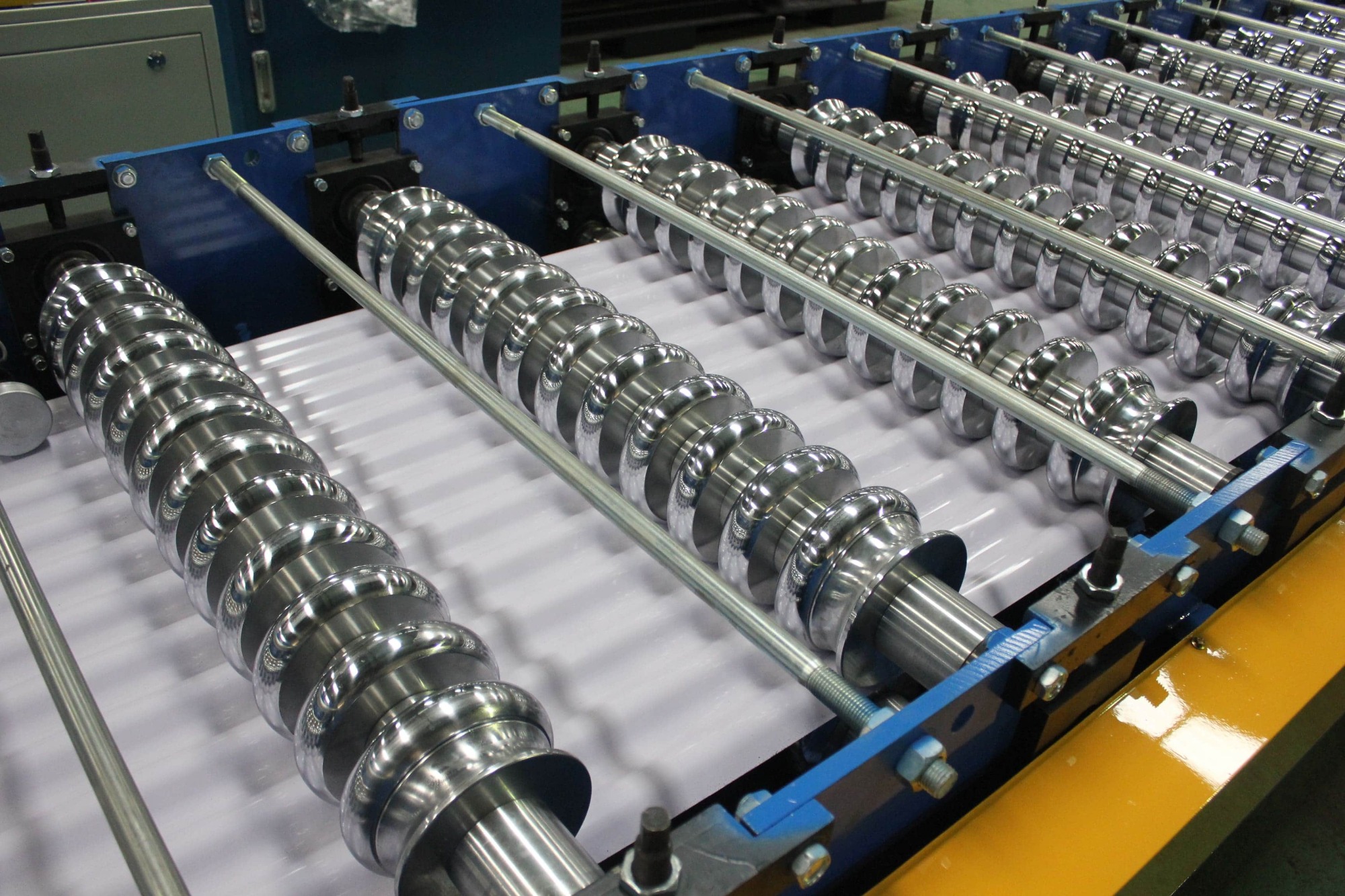

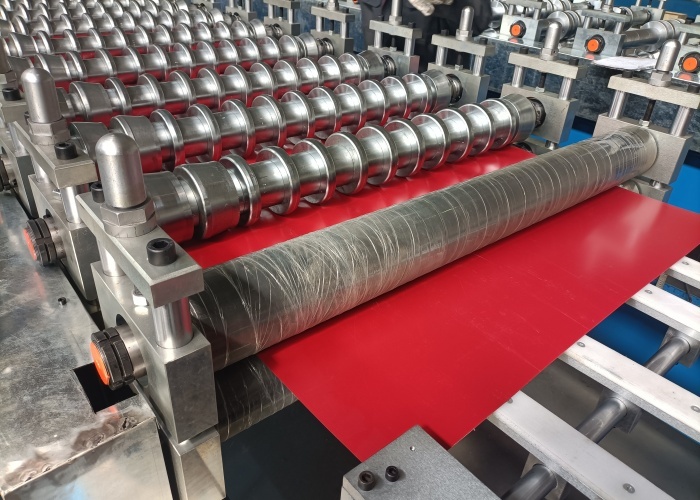

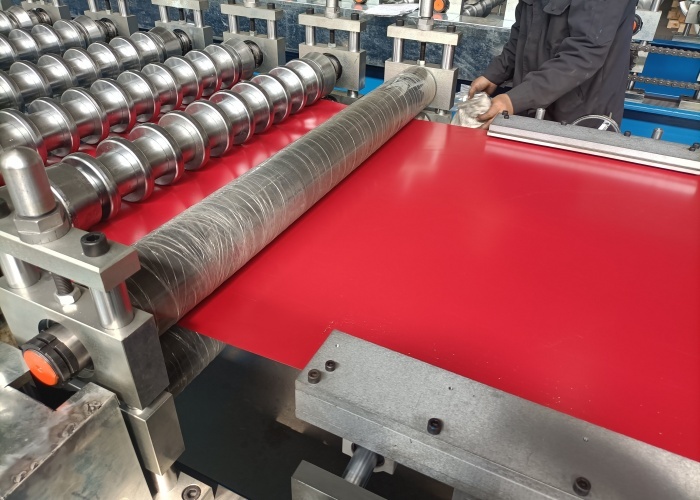

Roll Forming

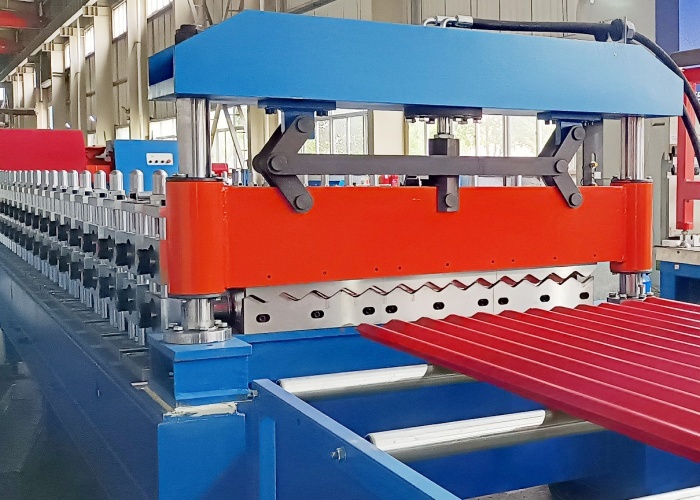

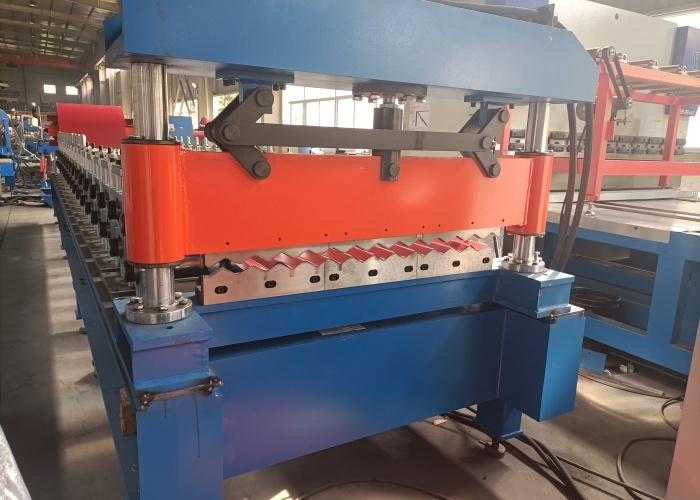

Measuring Length &Shearing
Sheet to Support Table
QUICK DETAIL
MODEL
GWFM18-76-836
OPERATION
Touch screen and button
MATERIAL TYPE
Color steel sheet
HYDRAULIC SYSTEM PRESSURE
12Mpa
MATERIAL THICKNESS
0.3-0.7mm
MAIN MOTOR POWER
4Kw
MATERIAL FEEDING WIDTH
1000mm/1200mm/1250mm
HYDRAULIC MOTOR POWER
3Kw
MATERIAL YIELD STRESS
235-345Mpa
DIMENSION
About 8500*1500*1500mm
MAX. FORMING SPEED
0-30m/min
WEIGHT
About 6T
ROLLER MATERIAL
45# steel with hard chromed treatment
WARRANTY
1 year
ROLLER DRIVEN TYPE
Chain / Gear-box transmission
CERTIFICATE
ISO, CE
CONTROLLER
PLC
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment DELIVERY PORT: Shanghai port, China CONTAINER REQUEST: 1*40GP GUARANTEE PERIOD: 1 year, lifetime technical support and service.
Optimized for Industrial Panel Production
This corrugated roof sheet roll forming machine is engineered to provide industrial manufacturers and steel structure fabricators with a reliable solution for producing consistent roofing panels. Designed for high-volume output, it serves users requiring scalable and standardized panel fabrication. The system accommodates various material thicknesses and profiles, allowing engineering teams flexibility in design adaptations. Our company provides tailored configurations, ensuring a corrugated roll forming machine integrates smoothly into existing production lines, delivering consistent roofing sheets that meet project specifications with minimal downtime.
Advanced Engineering with Precision Control
Featuring a state-of-the-art PLC controller coupled with a touchscreen interface, this corrugated roll forming machine for sale guarantees precision in panel dimensions and profile consistency. The adjustable rollers, CNC machined from hardened steel, support materials from 0.3 mm to 0.7 mm thickness, ensuring adaptability across project requirements. The maximum forming speed of up to 30 meters per minute facilitates rapid throughput, while automatic cutting and stacking functions streamline workflow and reduce manual intervention. Its robust gear-box and chain-driven transmission system ensures stable operation under continuous use, backed by CE and ISO certifications to satisfy international safety and quality standards.
Versatile Applications in Roofing and Construction
This corrugated sheet roll forming machine specializes in fabricating durable corrugated roof panels suitable for residential, commercial, and industrial roofing projects. It supports tailored manufacturing for retrofit and new construction, reducing material waste through precise cut lengths. The system is compatible with automated feed lines and integrates well with metal coil supply systems, making it ideal in production environments demanding efficiency and compliance. By employing this corrugated roof roll forming machine, operators can maintain consistent quality and reduce rework rates across large-scale and specialty builds, ultimately enhancing project ROI through reliable production output.
Product Advantages
Structural and System Design Benefits
The design of this corrugated roll forming machine incorporates modular components, allowing for straightforward maintenance and scalability. Its heavy-duty frame and hard-chromed rollers enhance durability against wear, making it suitable for prolonged industrial use. The chain and gear-box transmission system ensures smooth force transmission and minimizes vibration for precise profile shaping. Furthermore, the PLC control system enables seamless integration with existing production software, offering real-time monitoring and adjustment capabilities. This structural logic results in improved alignment, reduced material deformation, and a flexible machine footprint adaptable to different shop floor layouts.
Enhanced Performance and Operational Efficiency
Performance-wise, the corrugated roof sheet roll forming machine delivers stable forming accuracy at high speeds, which maximizes production efficiency. User-friendliness is central to its operation, as the touchscreen interface allows operators to configure parameters quickly, monitor system status, and trigger automatic cutting and stacking processes. These features reduce manual labor requirements and error rates. Additionally, the machine’s compliance with CE and ISO standards assures users of consistent safety and quality benchmarks. For procurement and engineering managers, the solution offers a reliable return on investment through minimized downtime and predictable maintenance costs.
Use Scenarios
Application in Large-Scale Roofing Manufacturing
In large-scale manufacturing plants, this corrugated roof roll forming machine plays a critical role in producing standard and custom-profile steel roof panels efficiently. Typically operating in facilities specializing in metal roofing systems, it enables mass production optimized by automated feeding and cutting subsystems. Its technical capabilities support compliance with industry standards for roof panel flatness and durability, ensuring panels withstand environmental stressors. Integration into automated workflows enables synchronization with downstream processes such as panel coating and final assembly, making it essential for manufacturers prioritizing speed, quality, and consistency in their product lines.
Role in On-Site Fabrication and Retrofit Projects
In construction environments focused on on-site and retrofit roofing projects, the corrugated roll forming machine enhances adaptability by enabling custom-length panel fabrication directly at or near the job location. This capability reduces transportation costs and material waste while improving project timelines. Its adjustable thickness range allows contractors to match existing roofing profiles precisely, facilitating replacement or extension work. The machine’s relatively compact footprint and electrical system enable deployment in temporary facilities, supporting rapid production cycles and seamless integration with existing construction workflows for renovation projects. This application enhances operational flexibility and project-specific compliance.
About Us
Hangzhou Gonawell Machinery Co., Ltd. is a leading manufacturer specializing in steel roll forming equipment and steel structure enclosure systems. With over 15 years of industry experience, we deliver reliable products supported by ISO and CE certifications. Contact us now for your custom quote or technical consultation.
FAQ
What thickness range of steel sheets can the corrugated roll forming machine process?
The corrugated roll forming machine handles material thicknesses from 0.3mm to 0.7mm, accommodating color steel sheets with yield stresses between 235-345 MPa. This range ensures versatility for different roofing panel requirements and consistent sheet quality.
Can the corrugated steel roof forming machine be customized for different panel profiles?
Yes. The machine features an adjustable roll forming system that supports various corrugated roof profiles. This adaptability allows production of custom-length roofing sheets and prototype profiles, enhancing efficiency for both small-batch and large-scale manufacturing with the corrugated roof roll forming machine.
How is the safety and compliance of the corrugated sheet roll forming machine ensured?
This corrugated sheet roll forming machine meets international safety and quality standards, holding CE and ISO certifications. Its design includes heavy-duty construction and PLC control systems with touchscreen interfaces to optimize safe, reliable operation in industrial environments.
What is the typical delivery time and shipment process for the corrugated roll forming machine for sale?
Typically, the delivery time is about 60 days after payment confirmation. The machine is packaged according to customer requirements and shipped from Shanghai port by container, ensuring safe transport and timely arrival of the corrugated roll forming machine for sale.
