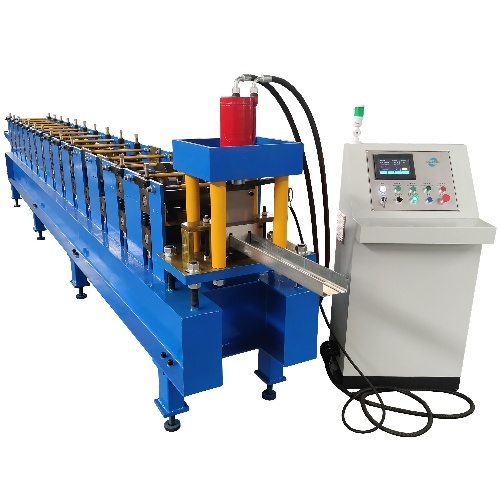

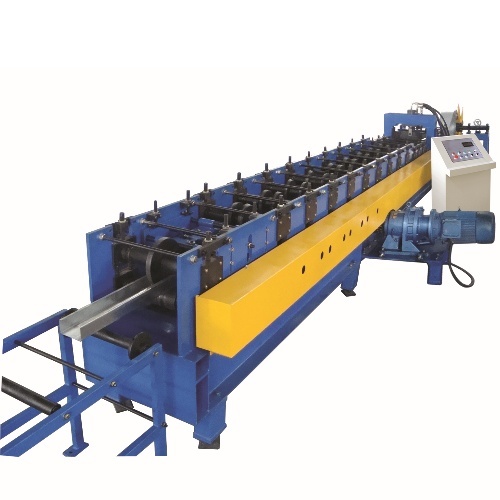

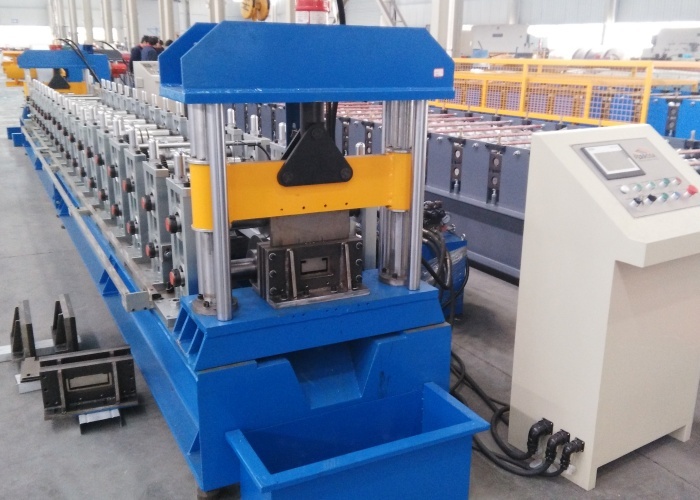

Auto C&Z changeable purlin machine C&Z shape and multi sizes produced by 1 machine Auto change size, auto punch holes, easy operate Suitable for thickness 1.5-3mm Web size 100-450mm, flange size 50-100mm High precision,15 years long lifetime service
High-Speed, Precision CZ Purlin Forming Machine. Produced by CNC high precision machine. Effortlessly produce durable C & Z purlins for robust roof and wall systems. Features PLC control, heavy-duty rollers, and minimal maintenance. Boosts production capacity & structural steel quality for warehouses, factories, hangars. Get Quote Now.
WORK FLOW

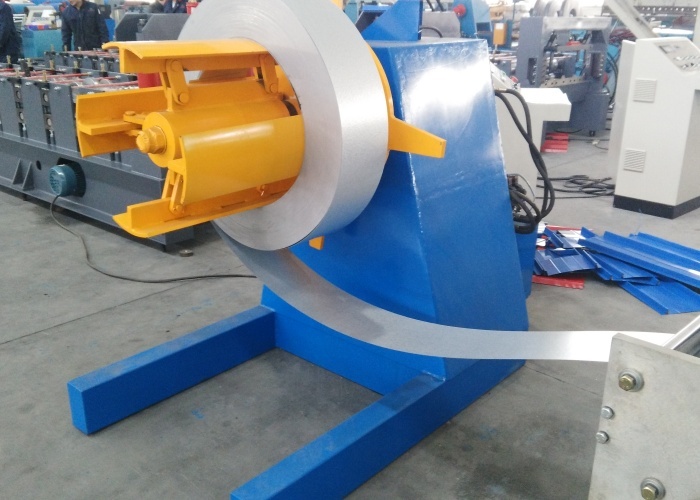

Uncoiling

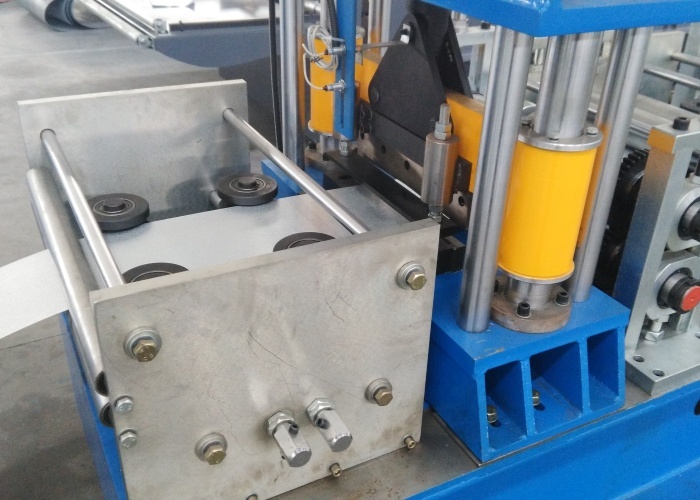

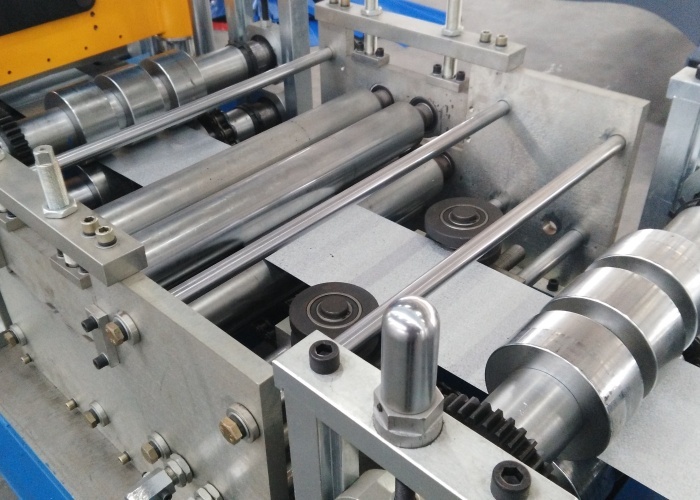

Sheet Guiding
Punching

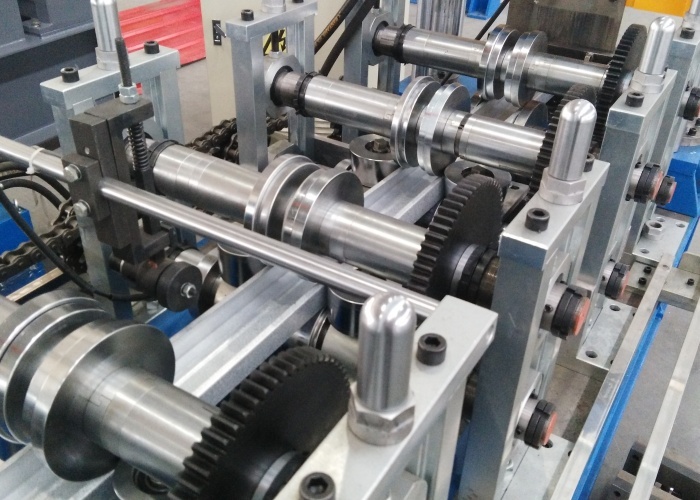

Roll Forming
Measuring Length &Shearing
Sheet to Support Table
QUICK DETAIL
MODEL
GW-CZ
OPERATION
Touch screen and button
MATERIAL TYPE
GI steel sheet
HYDRAULIC SYSTEM PRESSURE
12Mpa
MATERIAL THICKNESS
1.5-3.0mm
MAIN MOTOR POWER
18.5Kw
MATERIAL FEEDING WIDTH
As request
HYDRAULIC MOTOR POWER
7.5Kw
MATERIAL YIELD STRESS
235-345Mpa
DIMENSION
About 10000*1500*1500mm
MAX. FORMING SPEED
0-15m/min
WEIGHT
About 10T
ROLLER MATERIAL
GCr15 hard chromed treatment
WARRANTY
1 year
ROLLER DRIVEN TYPE
Chain / Gear-box transmission
CERTIFICATE
ISO, CE
CONTROLLER
PLC
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment DELIVERY PORT: Shanghai port, China CONTAINER REQUEST: 1*40GP GUARANTEE PERIOD: 1 year, lifetime technical support and service.
Optimized for Industrial Purlin Fabrication and Contractors
This c z purlin roll forming machine is engineered to meet the demands of steel structure manufacturers and contractors requiring scalable, accurate CZ and C purlin production. The system’s automated size adjustment and integrated pre-cutting function reduce manual intervention, enhancing productivity. Built to handle 1.5-3.0 mm GI steel sheets, it supports web widths from 100 to 450 mm and flange widths of 50 to 100 mm, perfectly suited for fabricating primary structural framing components. Our company, a reputable C Z purlin forming machine supplier, delivers a solution emphasizing operational stability and consistent output quality for medium to large-scale metal building projects.
Advanced Mechanical Design and Automation Controls

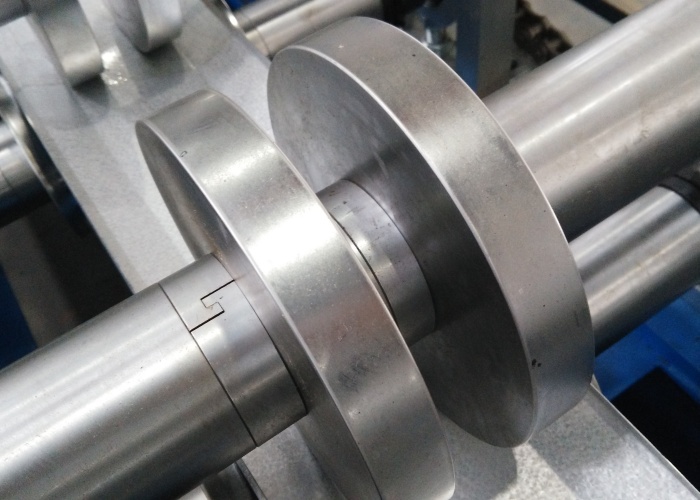

The cz purlin machine integrates heavy-duty GCr15 hard-chromed rollers and a chain/gear-box transmission driven by an 18.5 kW main motor, ensuring precise profile formation. Operating under PLC control, the system allows for intuitive operation via a touchscreen interface, facilitating quick size switches and automatic hole punching. With a maximum forming speed of 15 m/min and robust hydraulic pressure of 12 MPa, this cz purlin roll forming machine maintains accuracy in high-volume production settings. The compact footprint (approximately 10000 x 1500 x 1500 mm) provides flexibility for integration into existing workflows, while ISO and CE certifications underscore compliance and reliability.
Versatile Integration for Structural Steel and Enclosure Systems
This cz purlin forming machine supports diverse applications including roof and wall framing, warehouse racking, and lightweight steel structure assembly. Its ability to perform pre-cutting and hole punching during forming streamlines supply chains and reduces secondary processing steps. Given its compatibility with automated lines and quality assurance workflows, the machine enhances project turnaround and cost-efficiency in construction and fabrication industries. As a trusted C Z purlin forming machine manufacturer, we provide solutions that align engineering precision with operational needs, facilitating improved ROI and reduced downtime.
Product Advantages
Structural and System Design Benefits
Our c z purlin roll forming machine incorporates modular tooling sets and a robust frame designed for long-term stability and reduced vibration. The chain and gear-box transmission system paired with GCr15 hard-chromed rollers optimizes durability and profile accuracy. CNC-driven pre-cutting and automated hole punching are integrated into the forming line, reducing manual handling and improving repeatability. This scalable design allows for size range flexibility across standard C and Z purlin profiles, positioning the machine as a preferred option from a leading C Z purlin forming machine supplier focused on scalable production.
Enhanced Performance and Operational Efficiency
The PLC control system with touchscreen interface enables streamlined operation and remote parameter adjustments, supporting rapid changeovers between purlin sizes. The machine’s hydraulic system maintains consistent pressure to ensure uniform cuts and hole punching, minimizing material waste. Operating speeds up to 15 m/min support high throughput without sacrificing dimensional accuracy. This cz purlin forming machine is engineered to reduce operator fatigue and downtime with automated functions, making it a valuable asset for fabricators investing in production efficiency and quality consistency.
Use Scenarios
Application in Warehouse Framing Fabrication
In warehouse construction, the demand for precise, high-volume purlin profiles is critical to structural integrity and speed of assembly. Our cz purlin roll forming machine plays a pivotal role by delivering uniformly formed C and Z shaped steel purlins with integrated pre-cutting and hole punching, essential for rapid on-site installation. The machine’s automated size adjustment capability enhances adaptability to varying framing standards, while compliance with ISO and CE certifications supports stringent quality requirements. Its seamless integration into existing fabrication lines optimizes workflows from coil feeding to completed framing components.
Role in Prototype Development and R&D Testing
The cz purlin machine supports prototype fabrication and design validation in R&D scenarios by enabling rapid tooling adjustments and precise profile forming. Manufacturers benefit from its auto size change system to test new purlin dimensions with minimal downtime. Its exacting hydraulic control and reinforced roller design facilitate repeatable profile characteristics necessary for dimensional validation and structural testing. This flexibility combined with automated punching and pre-cutting functions accelerates development cycles and enhances testing accuracy within industrial steel structure innovation centers.
About Us
Hangzhou Gonawell Machinery Co., Ltd. specializes in steel roll forming equipment with over 15 years of experience. We manufacture reliable steel structure machinery, including cz purlin forming machines, backed by ISO and CE certifications. Contact us now for your custom quote and technical support.
FAQ
What is the typical lead time for ordering a CZ purlin roll forming machine from Gonawell?
The standard delivery time for the cz purlin roll forming machine is normally 60 days after receipt of payment. This timeframe includes production, quality checks, and packaging to ensure reliable shipment from Shanghai port.
Can the CZ purlin forming machine automatically adjust sizes and punch holes?
Yes, the cz purlin forming machine features automatic size changes and integrates hole punching during forming, enabling efficient production with minimal manual intervention and consistent profile accuracy.
What steel sheet thickness and dimensions are supported by the CZ purlin forming machine?
The machine processes galvanized steel sheets with thicknesses from 1.5 to 3.0 mm, web widths from 100 to 450 mm, and flange widths from 50 to 100 mm. This range suits versatile roof and wall framing applications using a high-precision C Z purlin forming machine supplier product.
What technical support and warranty options are available for the CZ purlin formation system?
Gonawell provides a 1-year warranty with lifetime technical support for the CZ purlin system. This ensures ongoing service for maintenance, troubleshooting, and operational guidance to maintain long-term machine reliability.
