Downspout Roll Forming Machine

Name: Downspout Roll Forming Machine
Brand: www.gonawell.com
SKU: GWDS93-234
Availability: InStock
Rating: 5 (1 reviews)

No.GWDS93-234

Suitable for thickness 0.3-0.7mm Work speed 0-15m/min Accurate size, seamless bite Various sizes can be customized Automatic PLC control system Email: info@gonawell.com WhatsApp: 0086 13456824686

Downspout Roll Forming Machine:

GET A QUOTE

Add to Quote List View Quote List

Description

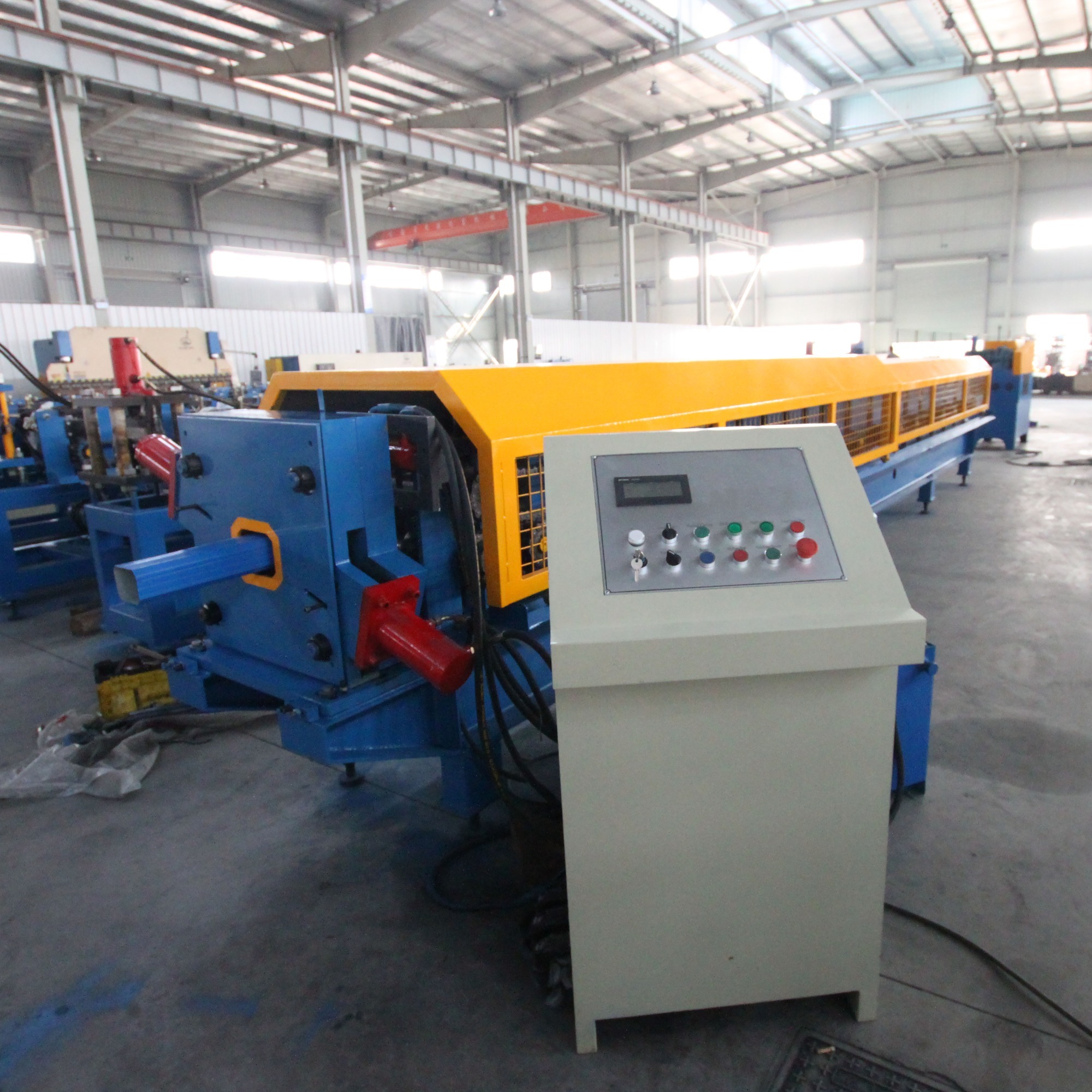

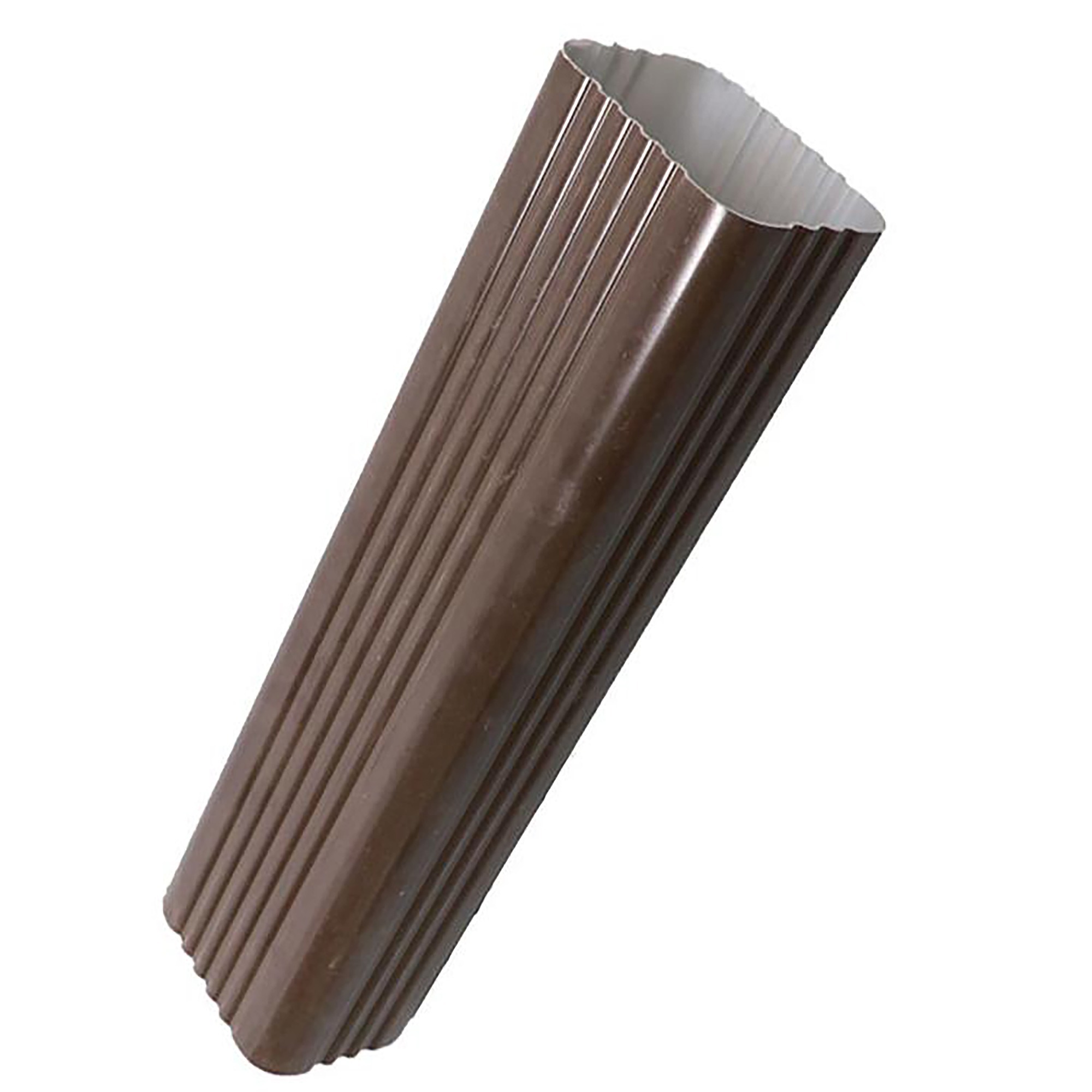

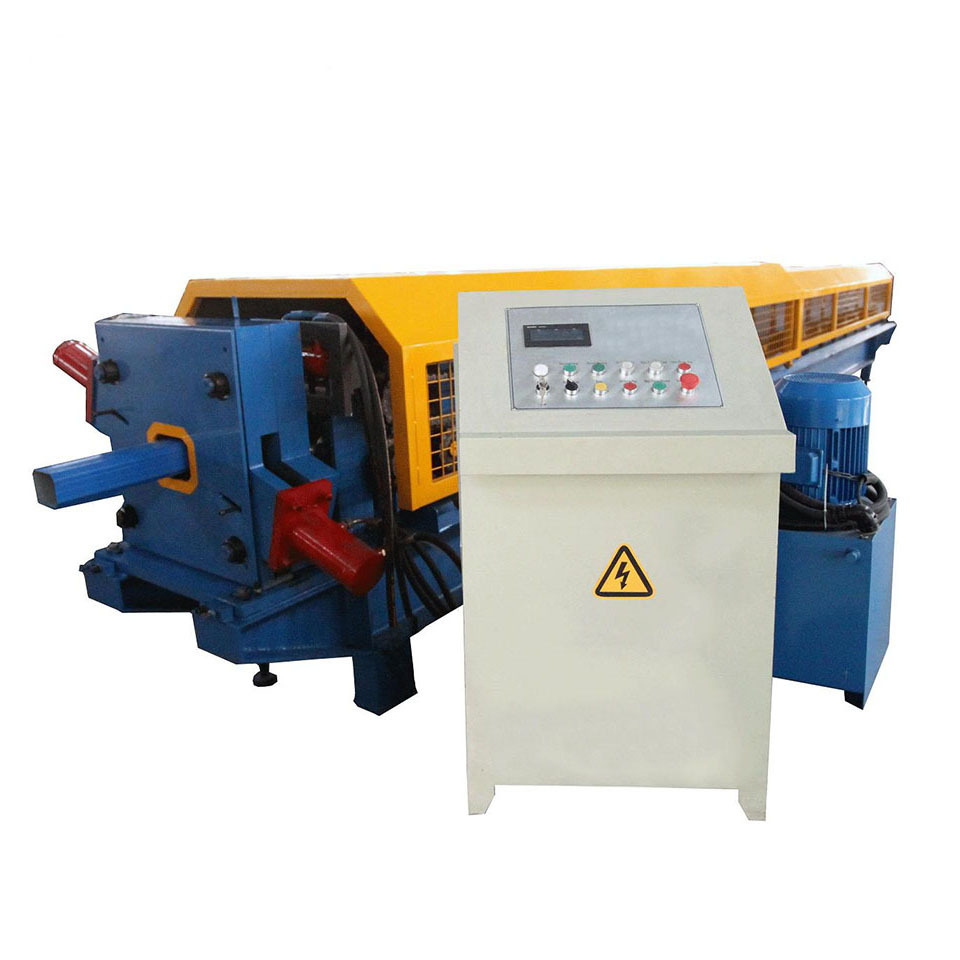

This type of downpipe roll forming machine is cold rolled and automatically edge interlocked, the finished products are of many features, such as good interlocking, no leak, beautiful integrity, long time using and so on. This series machine is matched with downpipe bending (elbow) machine, used for bending and end narrowing.

WORK FLOW

Uncoiling

Sheet Guiding

Roll Forming

Measuring Length &Shearing

Sheet to Support Table

QUICK DETAIL

MODEL	GWDS93-234	OPERATION	Touch screen and button
MATERIAL TYPE	Color steel sheet	HYDRAULIC SYSTEM PRESSURE	12Mpa
MATERIAL THICKNESS	0.3-0.7mm	MAIN MOTOR POWER	5.5Kw
MATERIAL FEEDING WIDTH	437mm or as design	HYDRAULIC MOTOR POWER	3Kw
MATERIAL YIELD STRESS	235-345Mpa	DIMENSION	About 550010001500mm
MAX. FORMING SPEED	0-15m/min	WEIGHT	About 4T
ROLLER MATERIAL	45# steel with hard chromed treatment	WARRANTY	1 year
ROLLER DRIVEN TYPE	Chain transmission	CERTIFICATE	ISO, CE
CONTROLLER	PLC

PACKING

Packed by bundle or as customers' requirements and shipped by container.

PAYMENT TERM:

TT/ LC

DELIVERY TIME

:30-60 days
