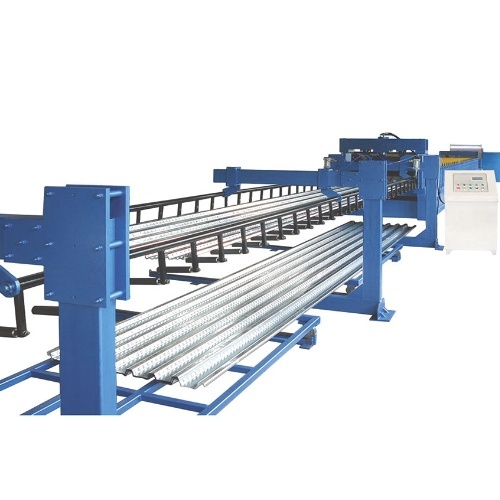

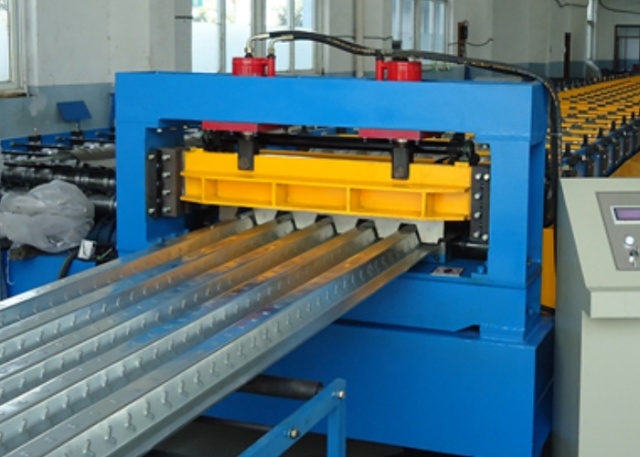

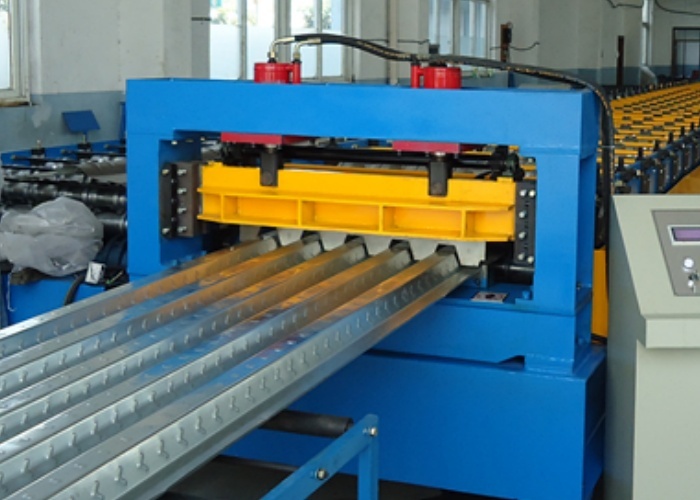

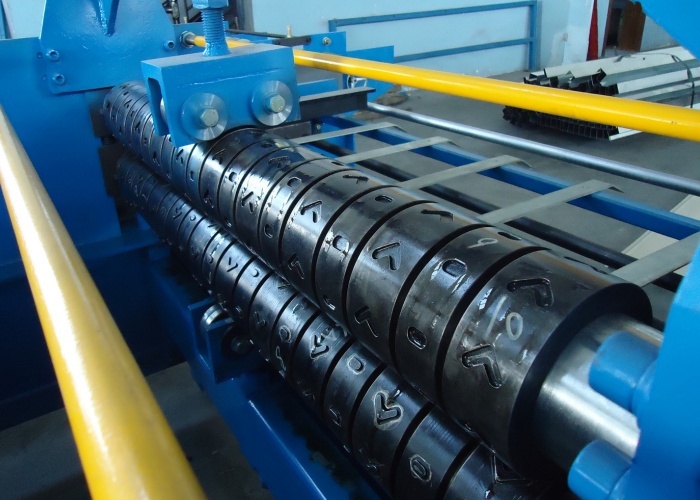

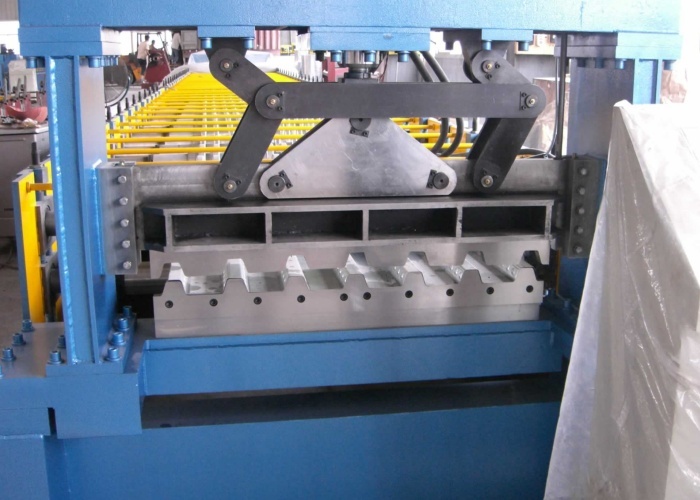

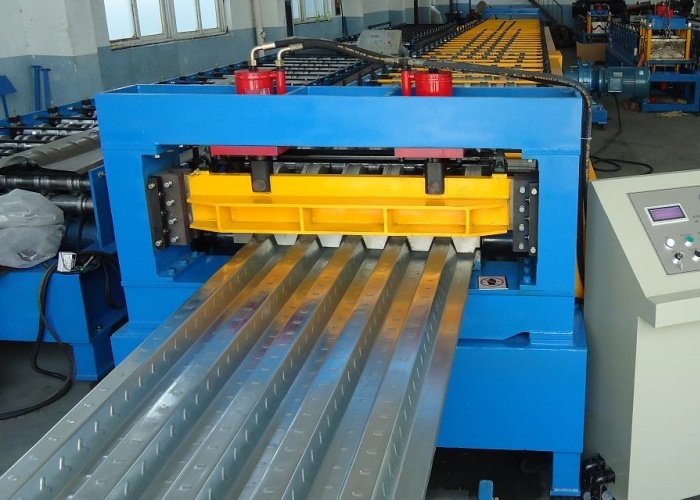

Floor Deck Forming Machine

Name: Floor Deck Forming Machine
Brand: www.gonawell.com
SKU: 00103
Availability: InStock
Rating: 5 (1 reviews)

No.00103

Floor deck roll forming machine Suitable for thickness 0.8-1.5mm High speed production up to 20m/min Customizable for special deck designs Perforated and embossed available Reliable quality, lifetime technical support service

Floor deck forming machine:

Deck floor roll forming machine:

Construction Decking Forming Machine:

GET A QUOTE

Add to Quote List View Quote List

Description

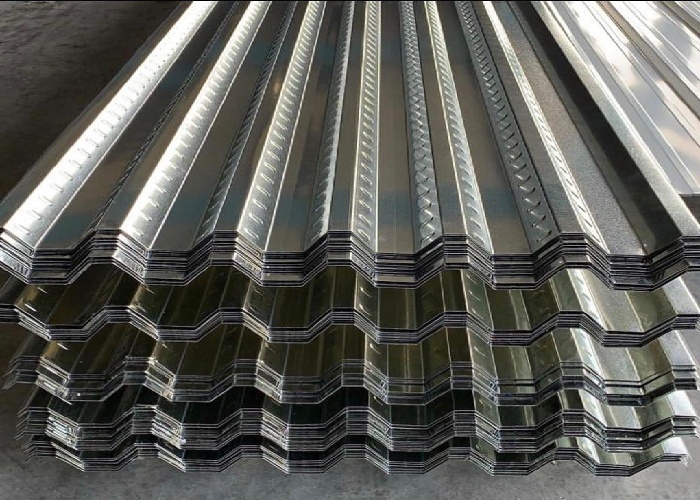

The floor deck forming sheet produced by floor deck roll forming machines are widely used in factories, warehouses, residences and other places. They are simple, fast, economical, and convenient for construction. We can design different kinds of profiles and fittings for machine as per customers' requirements.

WORK FLOW

Uncoiling

Sheet Guiding

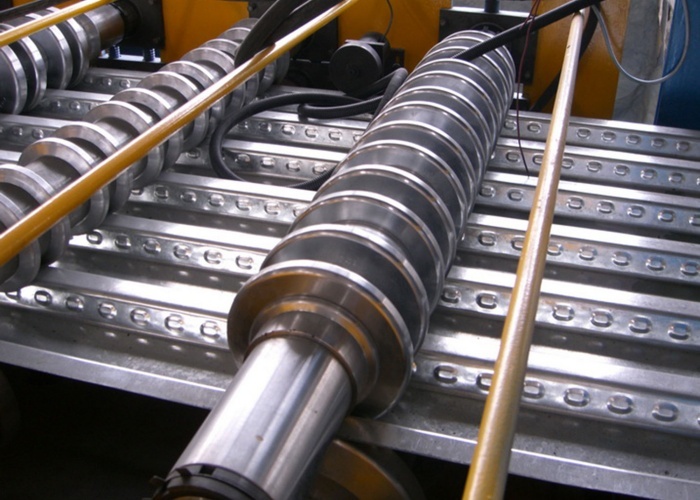

Roll Forming

Measuring Length &Shearing

Sheet to Support Table

QUICK DETAIL

MODEL	GWFM	OPERATION	Touch screen and button
MATERIAL TYPE	Color steel sheet	HYDRAULIC SYSTEM PRESSURE	12Mpa
MATERIAL THICKNESS	0.8-1.5mm	MAIN MOTOR POWER	18.5-30Kw
MATERIAL FEEDING WIDTH	1200mm/1250mm	HYDRAULIC MOTOR POWER	5.5-7.5Kw
MATERIAL YIELD STRESS	235-345Mpa	DIMENSION	About 1500015001500mm
MAX. FORMING SPEED	0-20m/min	WEIGHT	About 10T
ROLLER MATERIAL	GCr15 with hard chromed treatment	WARRANTY	1 year
ROLLER DRIVEN TYPE	Chain / Gear-box transmission	CERTIFICATE	ISO, CE
CONTROLLER	PLC

PACKING: Packed by bundle or as customers' requirements and shipped by container.

PAYMENT TERM: TT or irrevocable LC at sight

DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.
