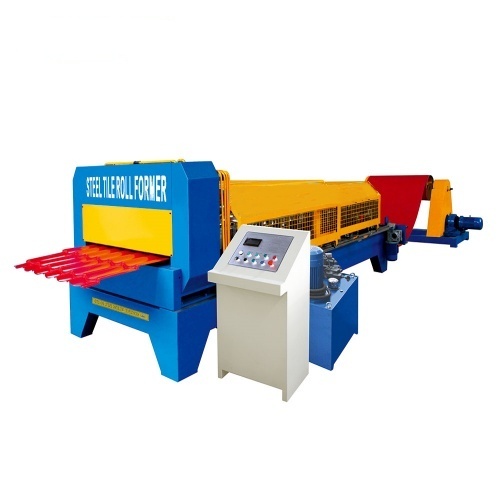

The step roof tile forming machine revolutionizes construction material production. Using advanced tech, it crafts high-precision tiles in multiple sizes, meeting varied market demands. Its robust build ensures stable, low-maintenance operation.
With an automated control system, it simplifies processes, cutting labor costs and boosting productivity. Ideal for both large factories and small businesses, it’s a cost-effective choice. Its energy-saving design reduces operational expenses while supporting sustainability. In the construction machinery field, this machine excels in reliability, versatility, and performance.

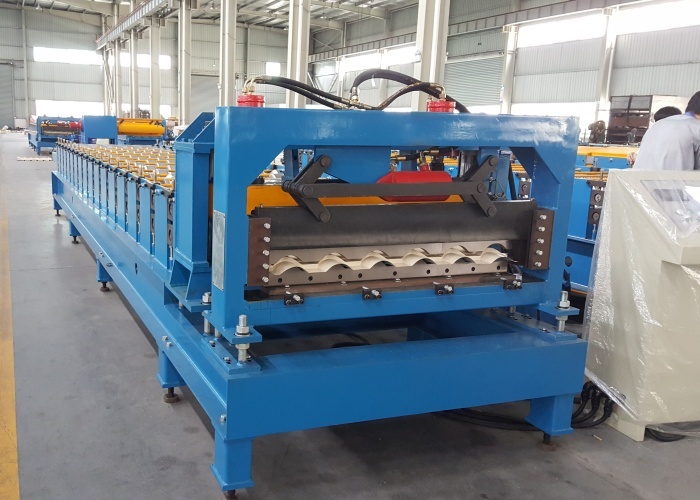

Measuring Length &Shearing
| MODEL |
GWFM16-192-1092 |
OPERATION |
Touch screen and button |
| MATERIAL TYPE |
Color steel sheet |
HYDRAULIC SYSTEM PRESSURE |
12Mpa |
| MATERIAL THICKNESS |
0.3-0.6mm |
MAIN MOTOR POWER |
5.5Kw |
| MATERIAL FEEDING WIDTH |
1250mm |
HYDRAULIC MOTOR POWER |
4Kw |
| MATERIAL YIELD STRESS |
235-345Mpa |
DIMENSION |
About 8500*1500*1500mm |
| MAX. FORMING SPEED |
5-6m/min |
WEIGHT |
About 6T |
| ROLLER MATERIAL |
45# steel with hard chromed treatment |
WARRANTY |
1 year |
| ROLLER DRIVEN TYPE |
Chain / Gear-box transmission |
CERTIFICATE |
ISO, CE |
| CONTROLLER |
PLC |
|
|
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM:
TT/ LC at sight
DELIVERY TIME: Normally 60 days after receive payment or LC
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP
GUARANTEE PERIOD: 1 year counting from the date of B/L.
Functional Positioning and Target Users of the Roof Tile Roll Forming Machine
This roof glazed tile roll forming machine is engineered for manufacturers aiming to produce high-quality glazed roofing tiles with consistent profiles and secure joints. As a leading roof tile roll forming machine supplier, it targets mid-to-large scale factories and small workshops requiring flexible customization options to adapt tile shapes and sizes. The equipment’s design supports production scalability while maintaining precise forming standards. By accommodating different roofing styles, it serves producers focused on delivering durable, visually appealing materials for commercial and residential roofing markets. Its modular nature allows for integration into existing production lines, optimizing operational workflows.
Technical Features and Measurable Specifications of the Roll Forming Machine

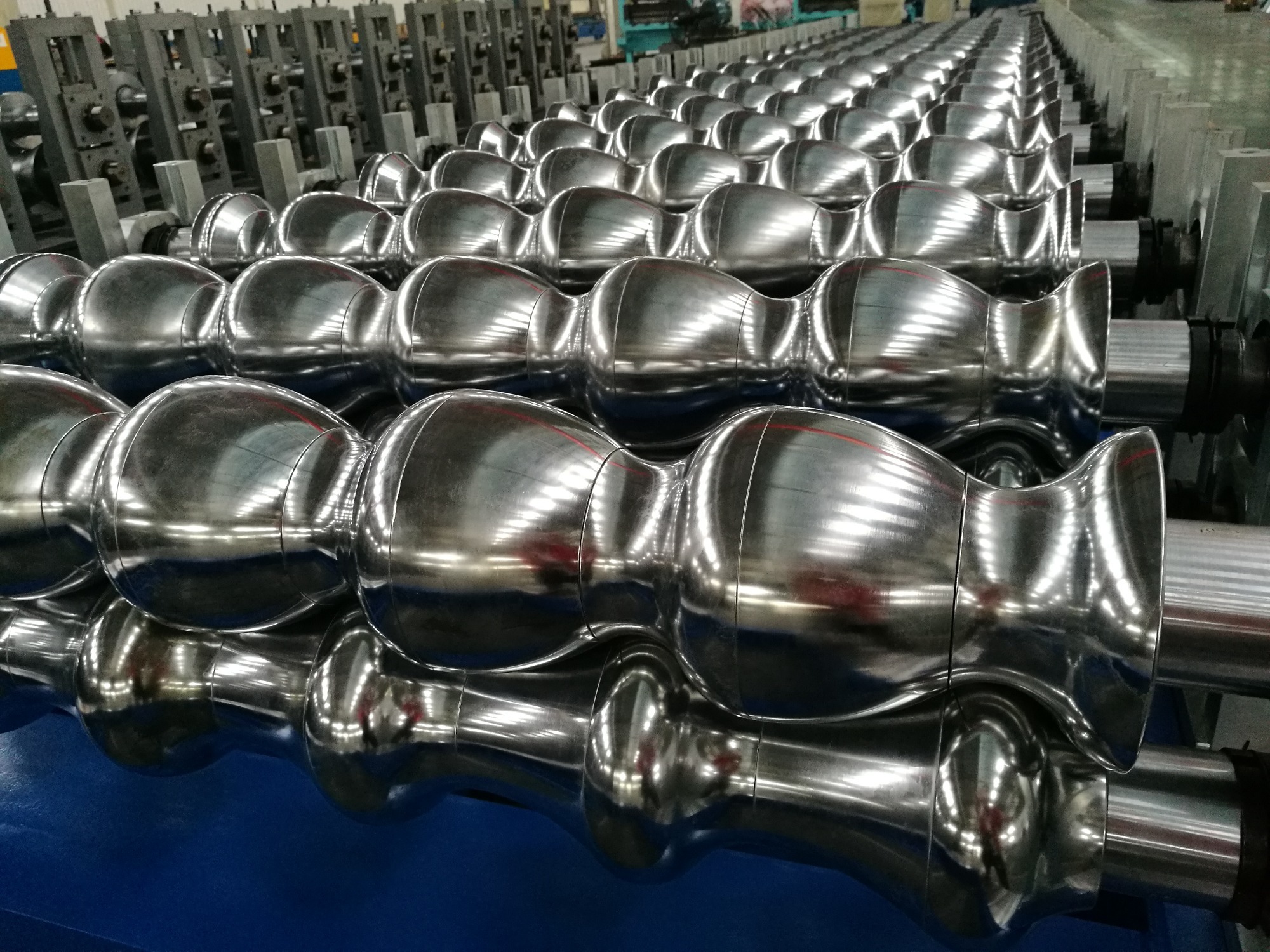

The machine features a robust frame and high-precision rollers constructed from hardened 45 steel, enabling stable operation and durability. Capable of processing color steel sheets ranging from 0.3 to 0.6 mm thickness with a feeding width up to 1250 mm, it supports various tile formats with a forming speed of 5 to 6 meters per minute. Controlled via a Mitsubishi PLC system, the roof tile roll forming machine offers automated, repeatable processes ensuring efficiency and reduced error rates. Hydraulic system pressure reaches 12 MPa, with motor power specifications at 5.5 Kw for the main drive and 4 Kw for hydraulics, highlighting reliable energy performance. Chain and gearbox transmission drive the rollers, conforming to ISO and CE certifications for quality assurance.
Industry Applications and Real-World Value of the Corrugated Roof Tile Roll Forming Machine
Designed primarily for the roofing manufacturing sector, the corrugated roof tile roll forming machine facilitates production of both standard and customized glazed tile profiles with seamless joints, increasing product versatility. This capability supports roofing contractors, fabricators, and suppliers in diverse construction projects, from residential housing to commercial buildings. Its fast production speed and energy-efficient design minimize operational costs and production downtime, enhancing overall ROI for manufacturers. Moreover, the equipment’s compact footprint and easy maintenance enable integration into constrained factory spaces, supporting businesses in upgrading or expanding existing metal roofing lines with advanced roll forming technology.
Product Advantages
Structural and Design Advantages of the Roof Tile Roll Forming Machine Supplier Equipment
The design of this roof tile roll forming machine for sale emphasizes modular tooling that facilitates rapid changeovers and scalable production configurations, ideal for varied tile shapes and profiles. The machine frame combines structural rigidity with compact dimensions, allowing installation flexibility in diverse workshop layouts. Precision-engineered rollers, treated with hard chrome, ensure product surface quality and reduce maintenance frequency. Integration of a Mitsubishi PLC system centralizes operation control and diagnostics, streamlining process management. The robust hydraulic system delivers consistent forming pressure contributing to uniform tile production, underscoring its reliability as a solution sourced from a trusted roof tile roll forming machine supplier.
Performance, Usability, and User Value of the Roof Glazed Tile Roll Forming Machine
This roof glazed tile roll forming machine prioritizes workflow efficiency through automated control and minimal operator intervention, allowing continuous production cycles with stable output quality. Its user interface supports fine-tuning of tile profiles and operational parameters, reducing setup times and operator training requirements. The system’s durability assures extended machine life and predictable maintenance scheduling, key for high-volume manufacturers optimizing downtime. Energy-efficient motors and hydraulic components reduce operational costs, improving cost-effectiveness. The equipment’s compatibility with multiple sheet thicknesses and widths enhances flexibility, allowing end users to respond dynamically to market demands and custom orders while maintaining compliance with industry standards.
Use Scenarios
Pilot Tile Development and Testing Environments
In research and development settings, the roof glazed tile roll forming machine functions as a critical asset for prototype and small-batch manufacturing of glazed roofing tiles. Operating within controlled test workshops, it allows precise shaping and seamless joint verification critical for validating new tile profiles before mass production. The machine’s PLC automation ensures repeatable conditions for material compatibility and process parameter optimization using 0.3-0.6 mm color steel sheets. Integration with quality control systems enables rapid iterations, supporting material scientists and production engineers seeking to refine tile aesthetics and mechanical properties efficiently with trusted roof tile roll forming machine supplier technology.
Scaling Up Full Production in Commercial Roofing Manufacturing
In large-scale industrial environments, the corrugated roof tile roll forming machine plays a pivotal role in achieving high-throughput manufacturing of roofing tiles for commercial distribution networks. Installed within established factories, it delivers continuous, fast-speed forming at 5–6 m/min to meet volume targets while maintaining product uniformity across batches. The equipment's advanced PLC controls facilitate integration with upstream feeding and downstream cutting systems, enabling seamless workflow automation and operational monitoring. Its durable construction reduces downtime risks and supports compliance with ISO and CE standards, enhancing factory production efficiency and ROI for enterprises specializing in roofing material fabrication.
About Us
Hangzhou Gonawell Machinery Co., Ltd. specializes in steel roll forming equipment with over 15 years of industry experience. Located in Hangzhou, China, we provide reliable metal forming solutions backed by ISO and CE certifications. Contact us now for your custom quote and professional support on roof tile roll forming machines.
FAQ
What types of materials and thicknesses does this roof tile roll forming machine support?
The glazed tile roll former processes color steel sheets ranging from 0.3 to 0.6 mm thick with a maximum feeding width of 1250 mm. This range caters to various roofing project requirements, ensuring the roof tile roll forming machine for sale can handle standard industry materials with precision and durability.
Can the tile shapes be customized on the roof glazed tile roll forming machine?
Yes, this machine offers customizable tile profiles to meet diverse architectural and market demands. Its high-precision rollers and modular tooling enable the development of various glazed tile shapes, making the roof glazed tile roll forming machine suitable for both pilot runs and mass production.
What is the expected delivery time after ordering a roof tile roll forming machine?
Typically, the delivery time is around 60 days after receipt of payment or a letter of credit (LC). This timeline allows for careful manufacturing, testing, and packaging to ensure full compliance with the machine specifications before shipment.
How is the installation and maintenance handled for this glazed tile roll former?
The machine features a compact design with modular tooling for easier installation and maintenance. Hangzhou Gonawell offers turnkey service, including on-site commissioning and operator training, ensuring smooth setup and ongoing operational support for this roof tile roll forming machine supplier.
