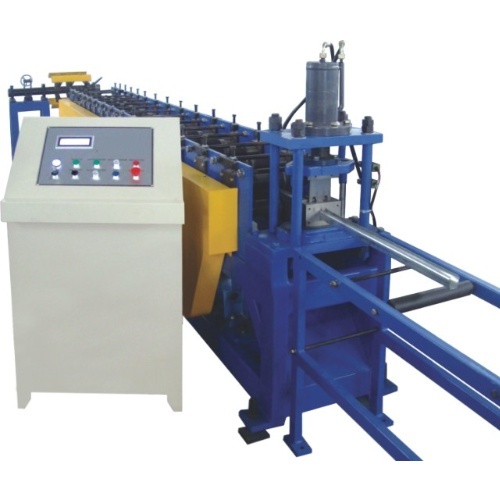

Light Keel Roll Forming Machine

Name: Light Keel Roll Forming Machine
Brand: www.gonawell.com
SKU: 00164
Availability: InStock
Rating: 5 (1 reviews)

No.00164

Light keel roll forming machine Any shape and size customized as request Suitable for thickness 0.5-1.0mm Normal cutting or fly cutting system as demand Reliable quality and excellent service, machine lifetime technical support

Stud & track roll forming machine:

metal stud roll forming machine:

omega roll forming machine:

GET A QUOTE

Add to Quote List View Quote List

Description

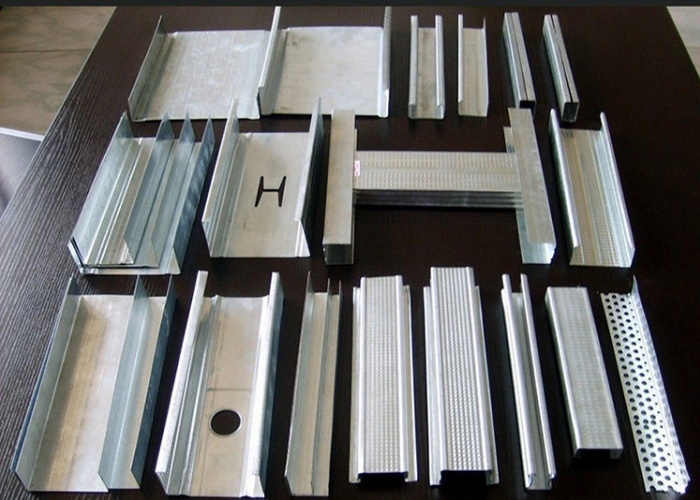

Boost Metal Frame Work Building Construction efficiency with our professional roll forming machines. Specializing in Stud & Track Roll Forming Machine systems, we deliver high-speed Metal Stud and Track Roll Forming Machine units for robust framing. Produce flawless Dry Wall Roll Former components, and Omega Roll Forming Machine/ Keel Roll Forming Machine sections for suspended ceilings & partition systems. Trust our Light Steel Structure Roll Forming Machine for reliable, automated production.

WORK FLOW

Uncoiling

Sheet Guiding

Punching/Embossing

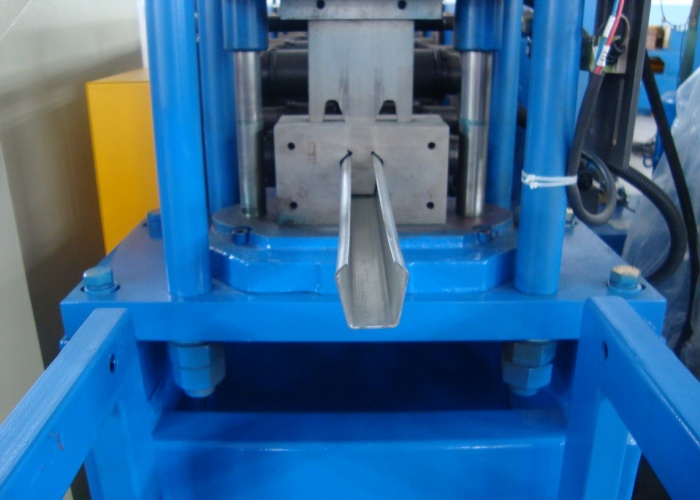

Roll Forming

Measuring Length &Shearing

Sheet to Support Table

QUICK DETAIL

MODEL	GWFM-CU	OPERATION	Touch screen and button
MATERIAL TYPE	GI steel sheet	HYDRAULIC SYSTEM PRESSURE	12Mpa
MATERIAL THICKNESS	0.5-1.0mm	MAIN MOTOR POWER	5.5Kw
MATERIAL FEEDING WIDTH	As request	HYDRAULIC MOTOR POWER	3Kw
MATERIAL YIELD STRESS	235-345Mpa	DIMENSION	About 800015001500mm
MAX. FORMING SPEED	0-15m/min, 0-50m/min	WEIGHT	About 5T

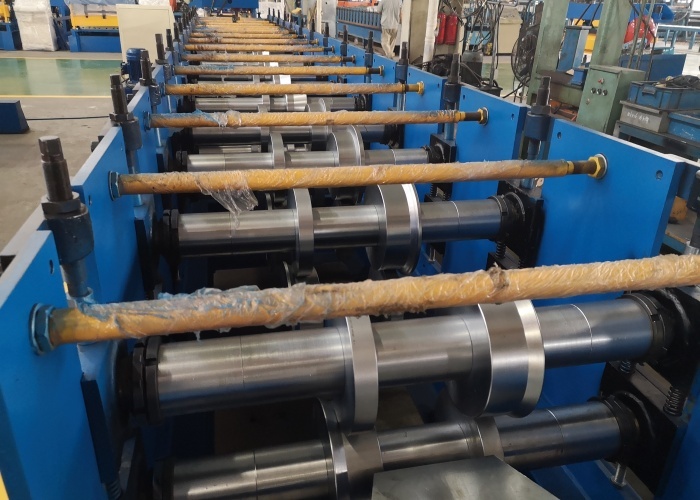

ROLLER MATERIAL	#45 steel with hard chromed treatment	WARRANTY	1 year
ROLLER DRIVEN TYPE	Chain transmission	CERTIFICATE	ISO, CE
CONTROLLER	PLC

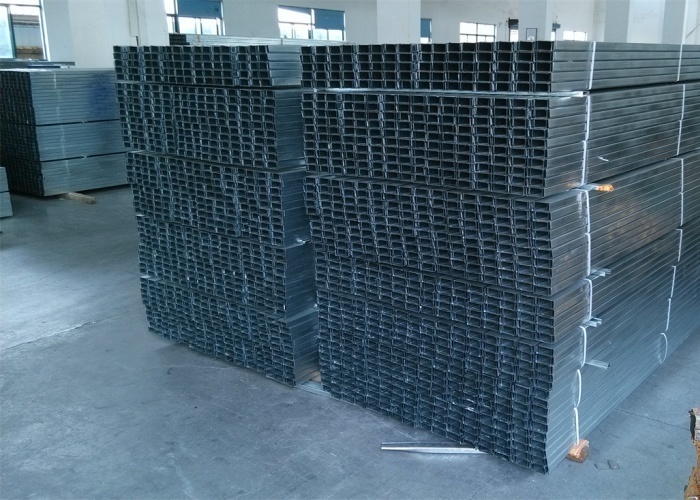

PACKING: Packed by bundle or as customers' requirements and shipped by container.

PAYMENT TERM: TT or irrevocable LC at sight

DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP

GUARANTEE PERIOD: 1 year, lifetime technical support and service.
