High Efficiency: speed 4-6m/min High Precision: roller processed by CNC machine Long Life Machine: 15 years long life Easy Operate: PLC controller, Mitsubishi brand Excellent Services: installation and training, lifetime services
The glazed roof tile sheet is rolled and pressed by series modular tile sheet roll forming machine, it has many features, such as good appearance, primitive simplicity and unique style, noblest grade, and etc. It is widely used in garden style factories, scenic resorts, pavilions, hotels, villas, exhibition halls, country clubs, and so on for outdoor decorations.

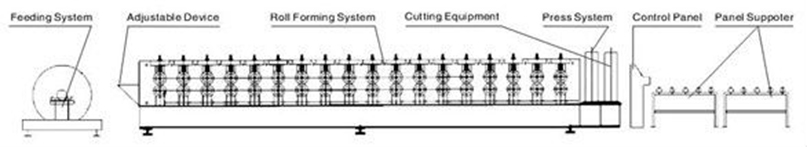

WORK FLOW
Uncoiling
Sheet Guiding
Roll Forming
Pressing
Measuring Length &Shearing
Sheet to Support Table
QUICK DETAIL
MODEL
GW24-183-1100
OPERATION
Touch screen and button
MATERIAL TYPE
Color steel sheet
HYDRAULIC SYSTEM PRESSURE
12Mpa
MATERIAL THICKNESS
0.3-0.6mm
MAIN MOTOR POWER
5.5Kw
MATERIAL FEEDING WIDTH
1000mm/1200mm/1250mm
HYDRAULIC MOTOR POWER
4Kw
MATERIAL YIELD STRESS
235-345Mpa
DIMENSION
About 8500*1500*1500mm
MAX. FORMING SPEED
2-3m/min or 5-6m/min
WEIGHT
About 6T
ROLLER MATERIAL
45# steel with hard chromed treatment
WARRANTY
1 year
ROLLER DRIVEN TYPE
Chain / Gear-box transmission
CERTIFICATE
ISO, CE
CONTROLLER
PLC
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: 60-70 days after receive payment DELIVERY PORT: Shanghai port, China CONTAINER REQUEST: 1*40GP GUARANTEE PERIOD: 1 year, lifetime technical support and service.
Targeted Application and User Base of the Roof Tile Roll Forming Machine
The roof tile roll forming machine supplied by our company is engineered for manufacturers involved in mid-scale tile production lines focusing on decorative and protective roofing products. It is particularly suited for enterprises aiming to produce metal roofing with consistent quality, addressing the needs of construction material producers and structural enclosure system integrators. This equipment effectively serves as a key asset for roof glazed tile roll forming machine applications, providing flexibility through variable feeding widths from 1000 mm to 1250 mm. These capabilities make it well-aligned with users requiring reliable production throughput, supported by comprehensive installation and technical training from a dedicated roof tile roll forming machine supplier.
Technical Features and Operational Specifications of the Machine
This roof tile roll forming machine operates with a CNC-controlled roller assembly manufactured from hardened 45 steel, ensuring exceptionally precise tile profiles. It maintains a forming speed between 4 and 6 meters per minute, delivering consistent tile sheets optimized for structural strength. The machinery utilizes a 5.5 kW main motor combined with a 4 kW hydraulic motor, supported by a hydraulic system pressurized to 12 MPa. Control is managed via a Mitsubishi PLC touchscreen interface, facilitating streamlined setup and operation. Its dimensions of approximately 8500 by 1500 by 1500 mm accommodate a compact footprint suitable for industrial environments. The equipment’s compliance with ISO and CE certifications emphasizes its quality assurance in roof tile roll forming machine applications, including corrugated roof tile roll forming machine variants.
Industry Utilization and Value Contribution of the Roof Tile Roll Forming Equipment
Within the metal roofing manufacturing sector, this roof tile roll forming machine plays a critical role in producing roof glazed tile roll forming machine outputs with high precision and durability. It supports processes such as new product development, customized batch production, and quality control through precise profile replication. The equipment integrates seamlessly into production workflows driven by steel structure enclosure system demands and roofing supply chains. Its robust construction and long expected service life of approximately 15 years provide a significant return on investment. Consequently, it satisfies stringent industry requirements for operational reliability, product uniformity, and user compliance, which are essential for continual production line optimization and client satisfaction.
Product Advantages
Design and Structural Engineering Excellence in the Roof Tile Roll Forming Machine
The structural design of this roof tile roll forming machine emphasizes modular assembly, enabling straightforward replacement or upgrade of key components such as CNC rollers and hydraulic units. The machine’s construction from chromed 45 steel rollers ensures mechanical resilience while allowing high precision over extended production runs. The inclusion of variable feeding widths within a single frame, alongside dual transmission options (chain and gearbox), enhances its adaptability to diverse manufacturing needs. These structural considerations reflect a design philosophy centered on longevity and maintenance efficiency, thoroughly aligned with expectations for a top-tier roof tile roll forming machine supplier offering versatile corrugated roof tile roll forming machines.
Operational Performance and Usability of the Roof Tile Roll Forming Machine
With automated PLC controls and user-friendly touchscreen interfaces, this roof tile roll forming machine delivers consistent production performance with minimal operator input. High forming speed capabilities (4–6 m/min) optimize throughput without sacrificing profile accuracy, supported by CNC-processed rollers that guarantee product quality. The integrated hydraulic system ensures stable pressure during forming while minimizing downtime. Additionally, comprehensive installation guidance and ongoing technical support streamline deployment, allowing users to achieve rapid commissioning and sustained operational reliability. Such performance attributes contribute to maximizing ROI and workflow efficiency for industrial manufacturers utilizing either roof glazed tile roll forming machine or corrugated roof tile roll forming machine configurations.
Use Scenarios
Custom Batch Metal Roofing Production in Manufacturing Facilities
In manufacturing environments requiring small-batch or pilot production of metal roof tiles, the roof tile roll forming machine offers precise control over product dimensions and profile consistency across batch variations. This scenario is critical for manufacturers testing new tile designs or producing customer-specific profiles as marketing samples. The machine facilitates the production of consistent roof glazed tile roll forming machine outputs with selectable feeding widths, ensuring compliance with client specifications and structural standards. Integration with existing production lines is supported through rapid installation and operator training provided by the roof tile roll forming machine supplier, enabling seamless workflow incorporation.
Industrial Quality Control and Product Development Testing Applications
Within research and development departments focused on new roofing solutions, the roof tile roll forming machine serves as an essential tool for generating validated tile profiles used in performance testing and durability evaluation. Material test runs with varying steel sheet thicknesses from 0.3 to 0.6 mm provide critical data for design optimization. The CNC roller precision maintains profile accuracy integral to quality assurance protocols associated with corrugated roof tile roll forming machine products. This role supports a structured development process, ensuring that final production meets stringent industry certifications and operational standards, while installation support allows immediate operational availability in R&D labs and line extensions.
About Us
Hangzhou Gonawell Machinery Co., Ltd. specializes in steel roll forming equipment with over 15 years of industry experience. We deliver reliable solutions for metal structure enclosures, supported by ISO and CE certifications. Contact us now for your custom quote and technical support.
FAQ
What types of materials can the roof tile roll forming machine process?
The roof tile roll forming machine is designed to form color steel sheets with a thickness range of 0.3-0.6 mm and material yield strength between 235-345 MPa, delivering consistent tile profiles suitable for decorative and protective roofing.
Can the feeding width be customized on the roof glazed tile roll forming machine?
Yes, the machine supports feeding widths of 1000 mm, 1200 mm, and 1250 mm, allowing flexibility for different production requirements. This versatility makes the roof glazed tile roll forming machine suitable for mid-size tile manufacturing lines.
What support is provided for installation and machine operation?
The supplier offers onsite installation, commissioning, and operator training to ensure quick start-up and optimal use of the roof tile roll forming machine. Additionally, lifetime technical service is available to support maintenance and operational efficiency.
What is the typical delivery timeline after placing an order?
Once payment is received, the delivery period for the roof tile roll forming machine for sale is generally between 60 to 70 days, allowing adequate time for precise manufacturing and quality assurance before shipment.
