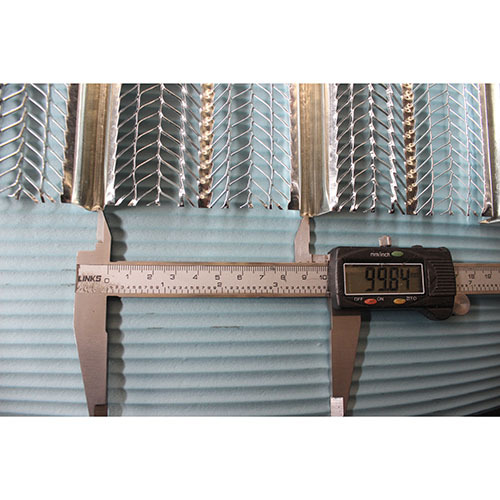

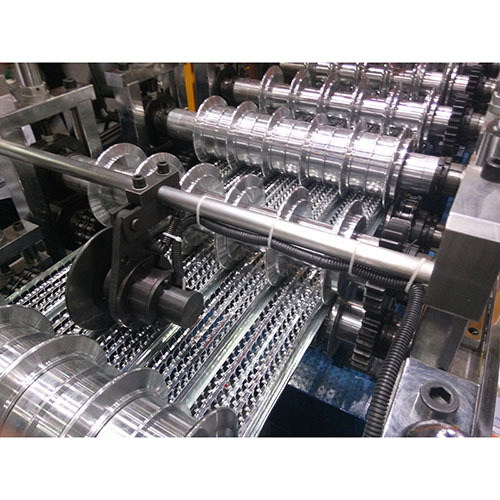

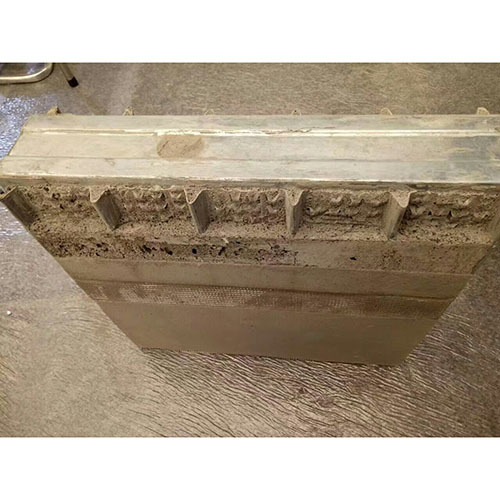

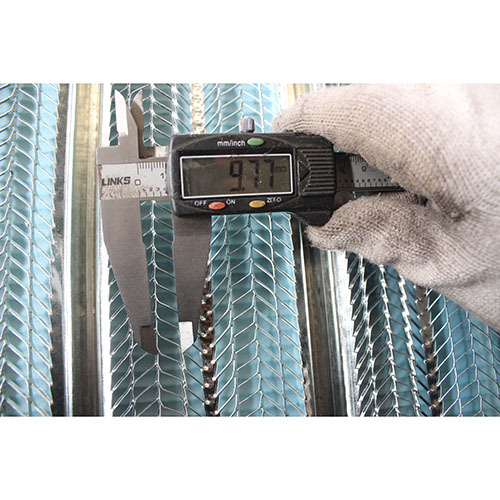

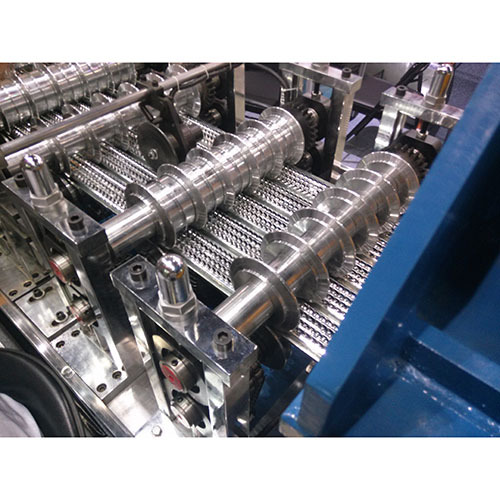

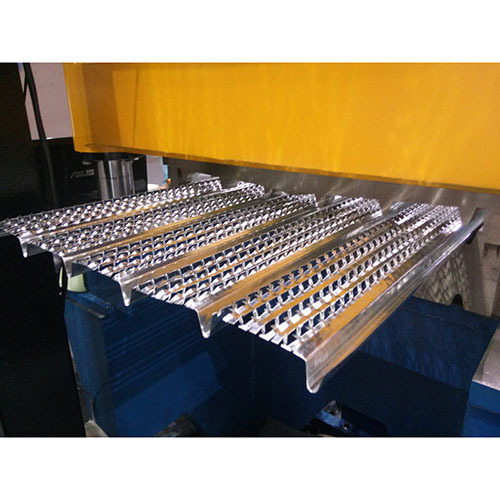

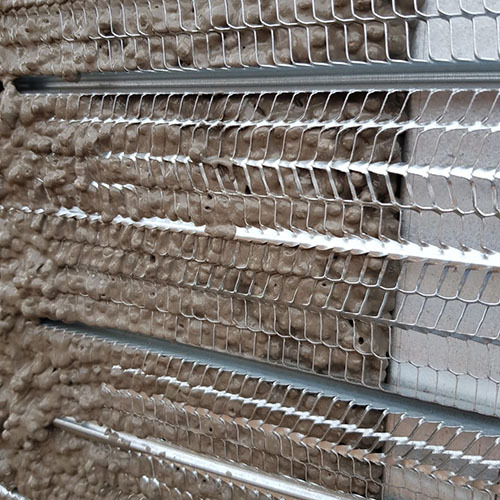

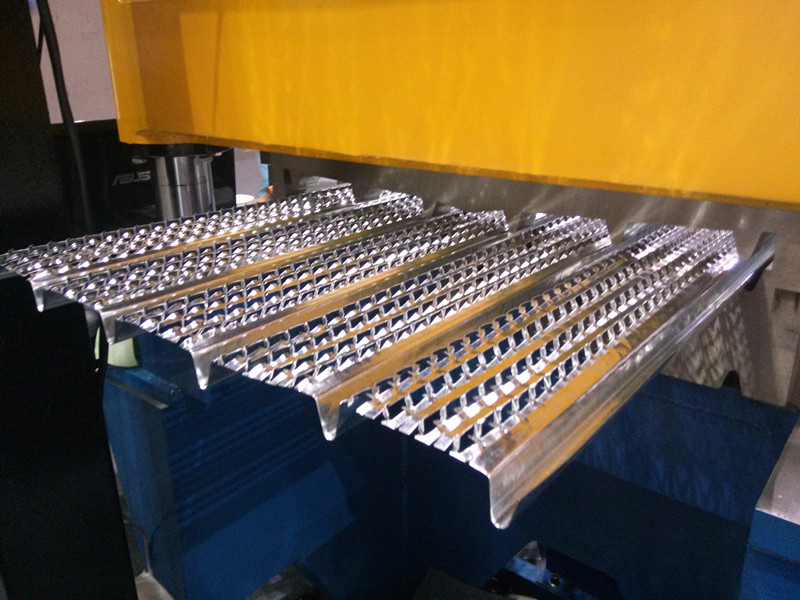

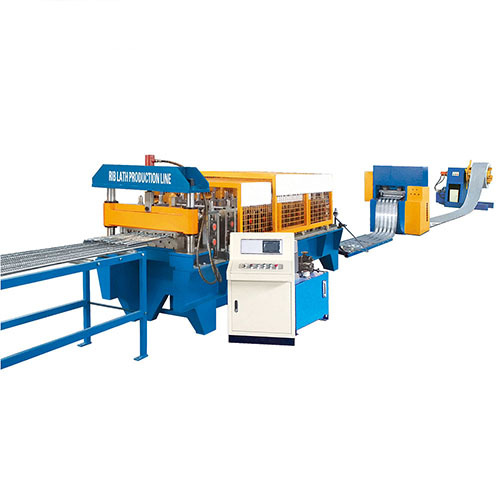

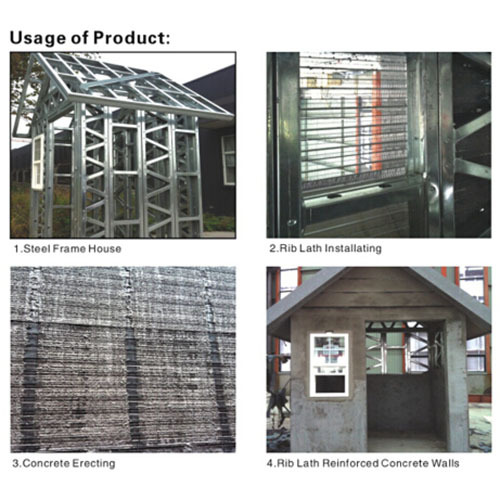

The hi rib lath metal mesh produced by the rib lath production machine line is mainly suitable for gypsum and wall reinforcement. It has excellent mechanical properties and light weight, and is especially suitable for concrete pouring in sections. The machine has advanced science and wide practicability.
| MODEL | GW21 | OPERATION | Touch screen and button |
| MATERIAL TYPE | Color steel sheet | HYDRAULIC SYSTEM PRESSURE | 12Mpa |
| MATERIAL THICKNESS | 0.3-0.6mm | MAIN MOTOR POWER | 4Kw |
| MATERIAL FEEDING WIDTH | 1000mm/1200mm/1250mm | HYDRAULIC MOTOR POWER | 3Kw |
| MATERIAL YIELD STRESS | 235-345Mpa | DIMENSION | About 8500*1500*1500mm |
| MAX. FORMING SPEED | 0-30m/min | WEIGHT | About 6T |
| ROLLER MATERIAL | 45# steel with hard chromed treatment | WARRANTY | 1 year |
| ROLLER DRIVEN TYPE | Chain / Gear-box transmission | CERTIFICATE | ISO, CE |
| CONTROLLER | PLC |
