| MODEL | GW-RS | OPERATION | Touch screen and button |
| MATERIAL TYPE | Galvanized, Pre-painted, Alunimium coils | HYDRAULIC SYSTEM PRESSURE | 12Mpa |
| MATERIAL THICKNESS | 0.5-1.2mm | MAIN MOTOR POWER | 4-7.5Kw |
| MATERIAL FEEDING WIDTH | As request | HYDRAULIC MOTOR POWER | 3-5.5Kw |
| MATERIAL YIELD STRESS | 235-345Mpa | DIMENSION | About 8000*1200*1300mm |
| MAX. FORMING SPEED | 0-15m/min; 0-30m/min | WEIGHT | About 4T |
| ROLLER MATERIAL | #45 steel or GCr15 with hard chromed treatment | WARRANTY | 1 year |
| ROLLER DRIVEN TYPE | Chain / Gear-box transmission | CERTIFICATE | ISO, CE |
| CONTROLLER | PLC | PUNCHING | possible |
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.

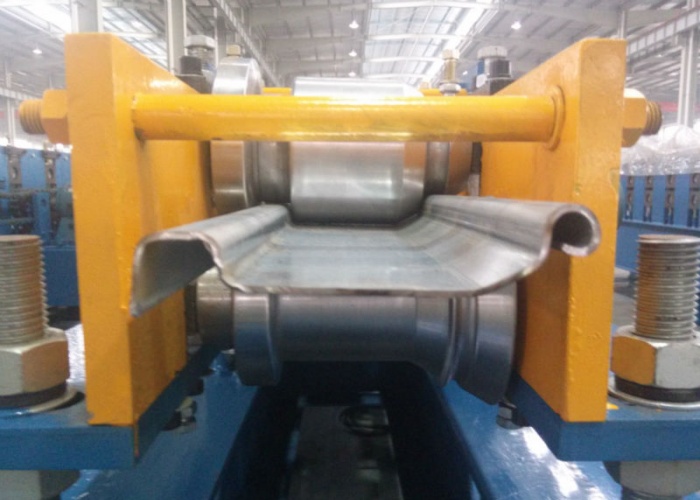

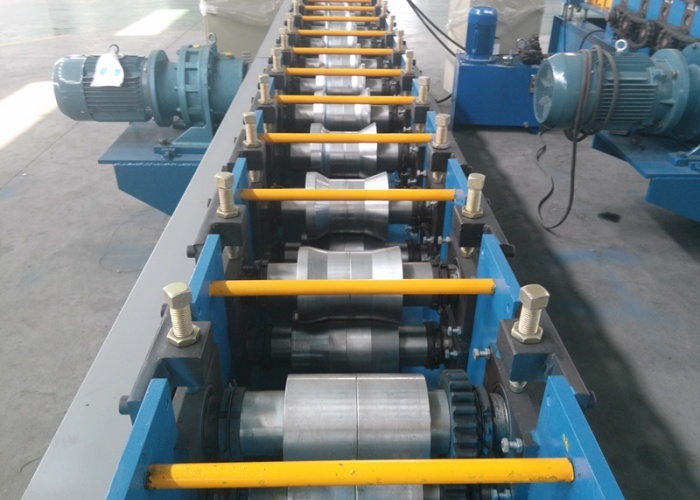

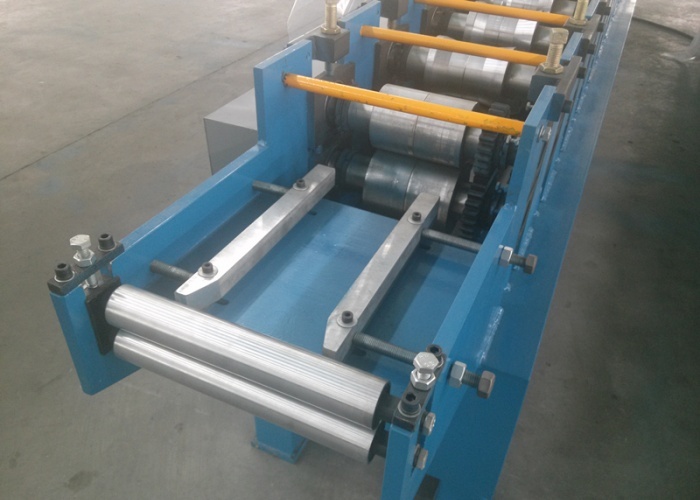

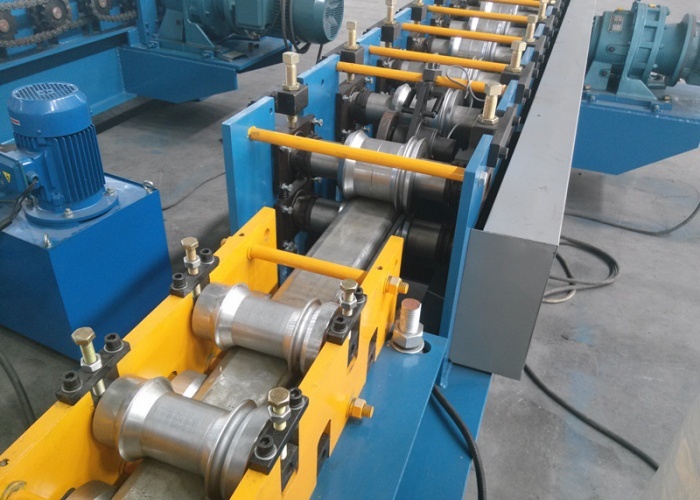

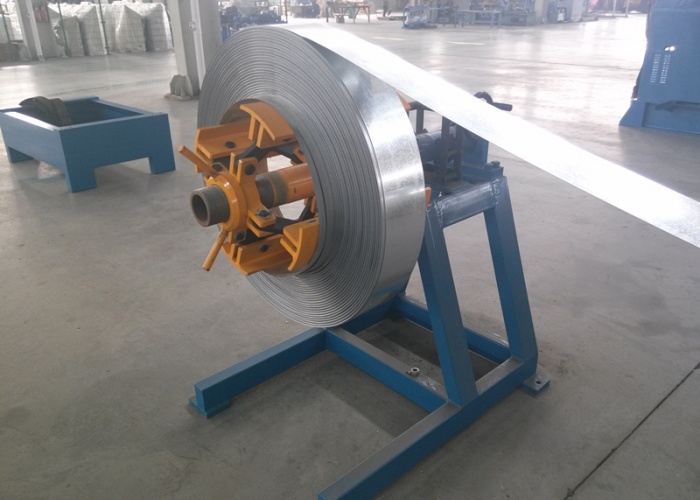

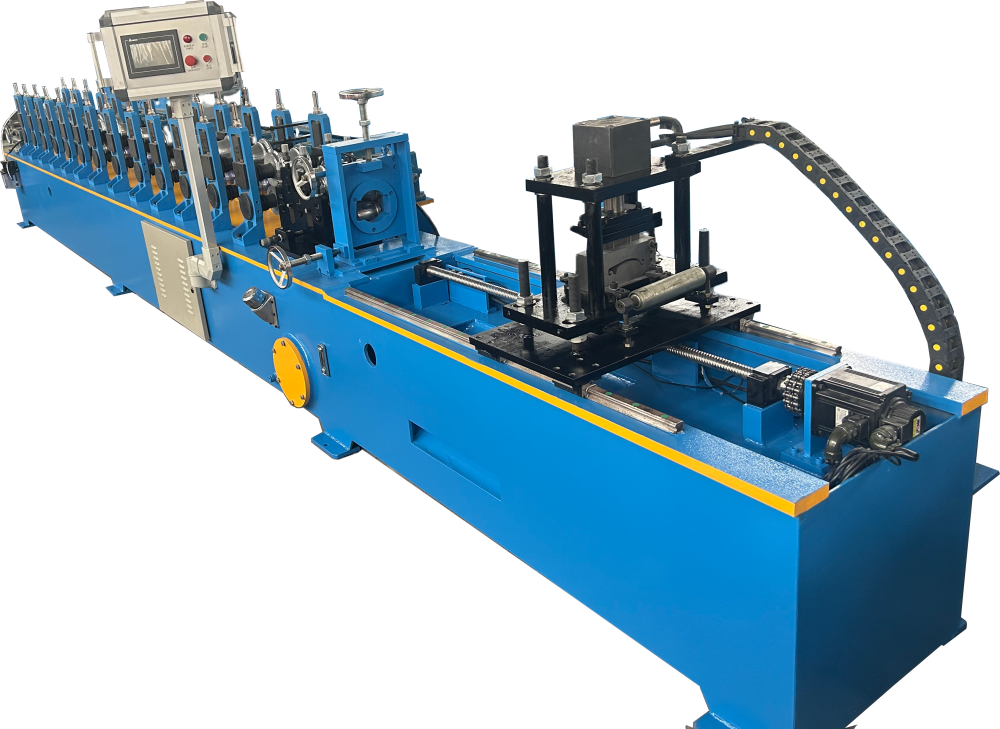

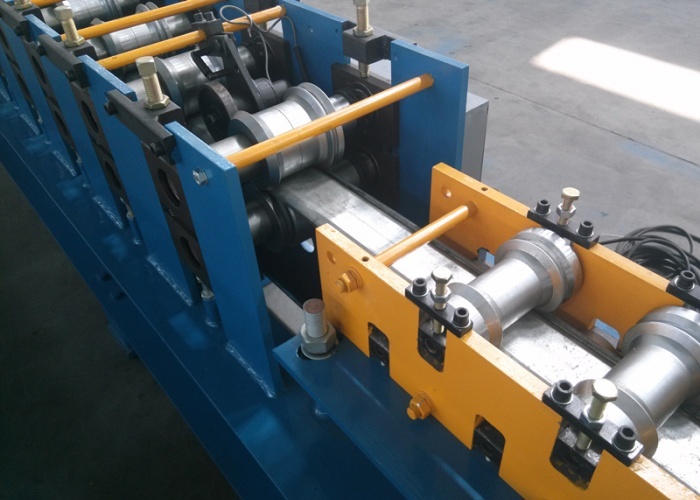

The roller shutter door roll forming machine is automatic equipment specially designed for manufacturing metal roller shutter doors, including anti-theft shutters, garage doors, shop shutters, and industrial roller doors.
Through the roll forming process, it continuously forms metal coils such as galvanized steel, color-coated steel, and aluminum alloy into customized shutter slats, which can be assembled into complete roller shutter doors.
Roll forming machines from GONAWELL feature high precision and stable performance. According to customers' specific requirements, we can accurately process raw materials into various roller shutter door components in preset sizes and profiles.
Our automatic roller shutter door forming machine is widely used for manufacturing high-quality roller shutter doors for industrial, commercial, residential, and logistics projects. It supports galvanized steel, aluminum, and PPGI coils, producing stable and durable shutter slats with high precision.
This roll forming machine is ideal for warehouse roller shutters, factory security doors, shop rolling shutters, garage doors, wind-resistant shutters, and fire-resistant roller doors. With PLC control and customizable profiles, it helps clients improve productivity and product quality.
Our roller shutter door forming machine has been exported to markets including the Middle East, Southeast Asia, Africa, Europe, and North America, providing reliable and cost-effective solutions for shutter door manufacturers worldwide.
About Us
Hangzhou Gonawell Machinery Co., Ltd. specializes in steel roll forming equipment with over 15 years of experience. We manufacture reliable steel structure machinery, including roller shutter door forming machines, backed by ISO and CE certifications. Contact us now for your custom quote and technical support.
FAQ
1, What is the typical lead time for ordering a roller shutter door forming machine from Gonawell?
The standard delivery time for the roller shutter door forming machine is normally 60 days after receipt of payment. This timeframe includes production, quality checks, and packaging to ensure reliable shipment from Shanghai port.
2, Can the roller shutter door forming machine automatically adjust sizes and punch holes?
The roller shutter door forming machine features one machine produce one size and integrates hole punching during forming, enabling efficient production with minimal manual intervention and consistent profile accuracy.
3, What steel sheet thickness and dimensions are supported by the steel roller shutter door forming machine?
The machine processes galvanized or pre-painted steel sheets with thicknesses from 0.5-1.5mm, widths according to customer's profile.
4, What technical support and warranty options are available for the rolling shutter door formation system?
Gonawell provides a 1-year warranty with lifetime technical support for the rolling shutter door system. This ensures ongoing service for maintenance, troubleshooting, and operational guidance to maintain long-term machine reliability.
