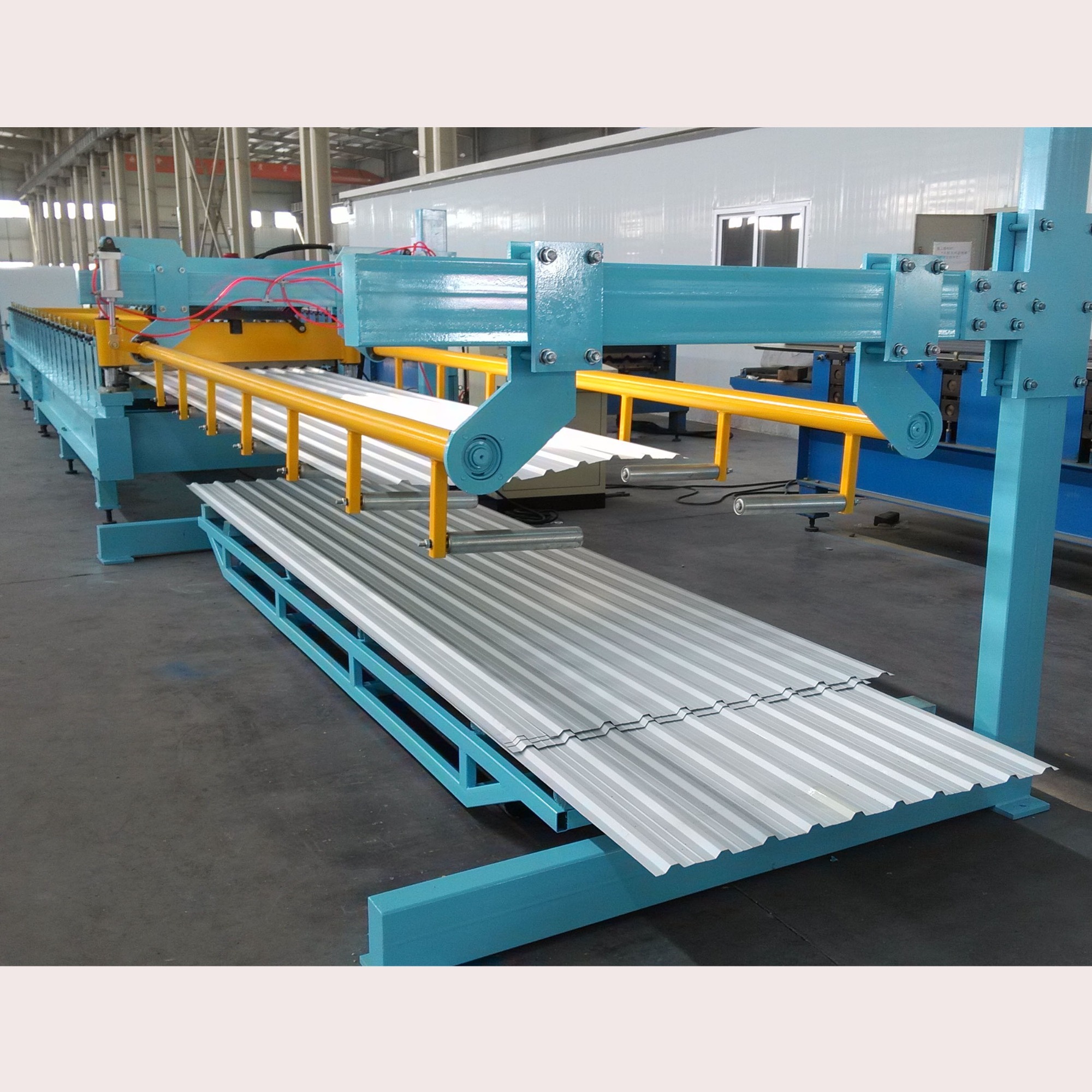

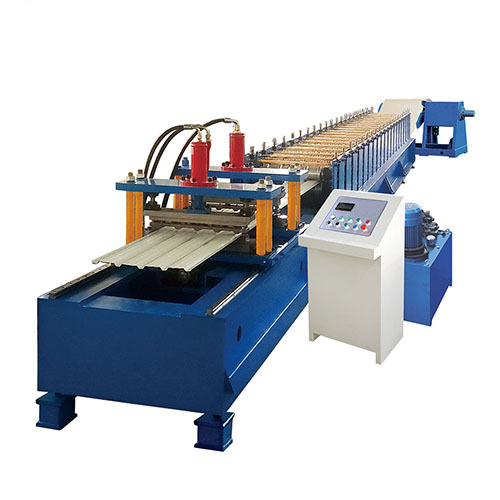

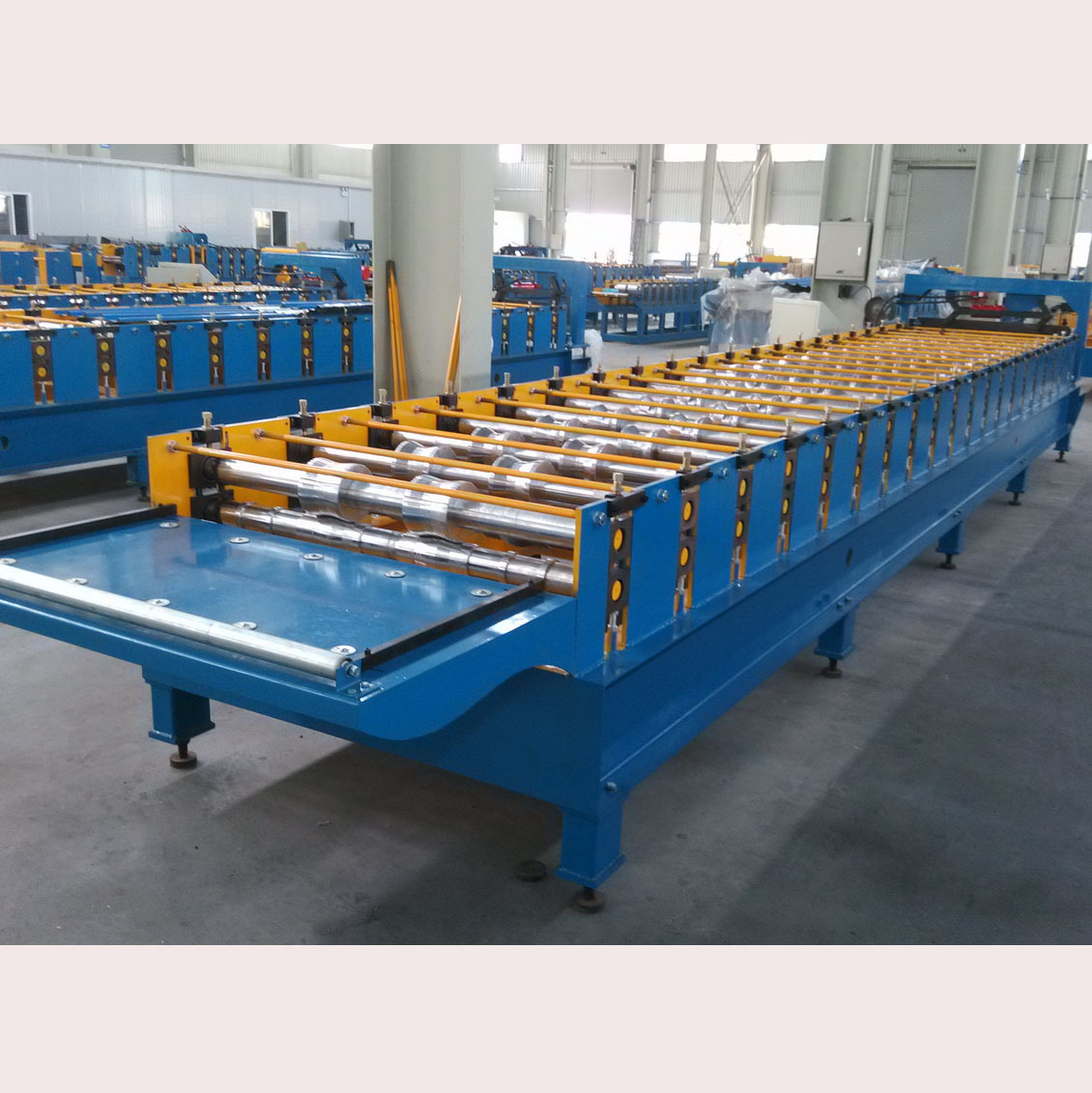

This full auto IBR shape roof and wall forming machine is widely used for metal roofing system, The shape is popular, we can customize different shapes as your request.

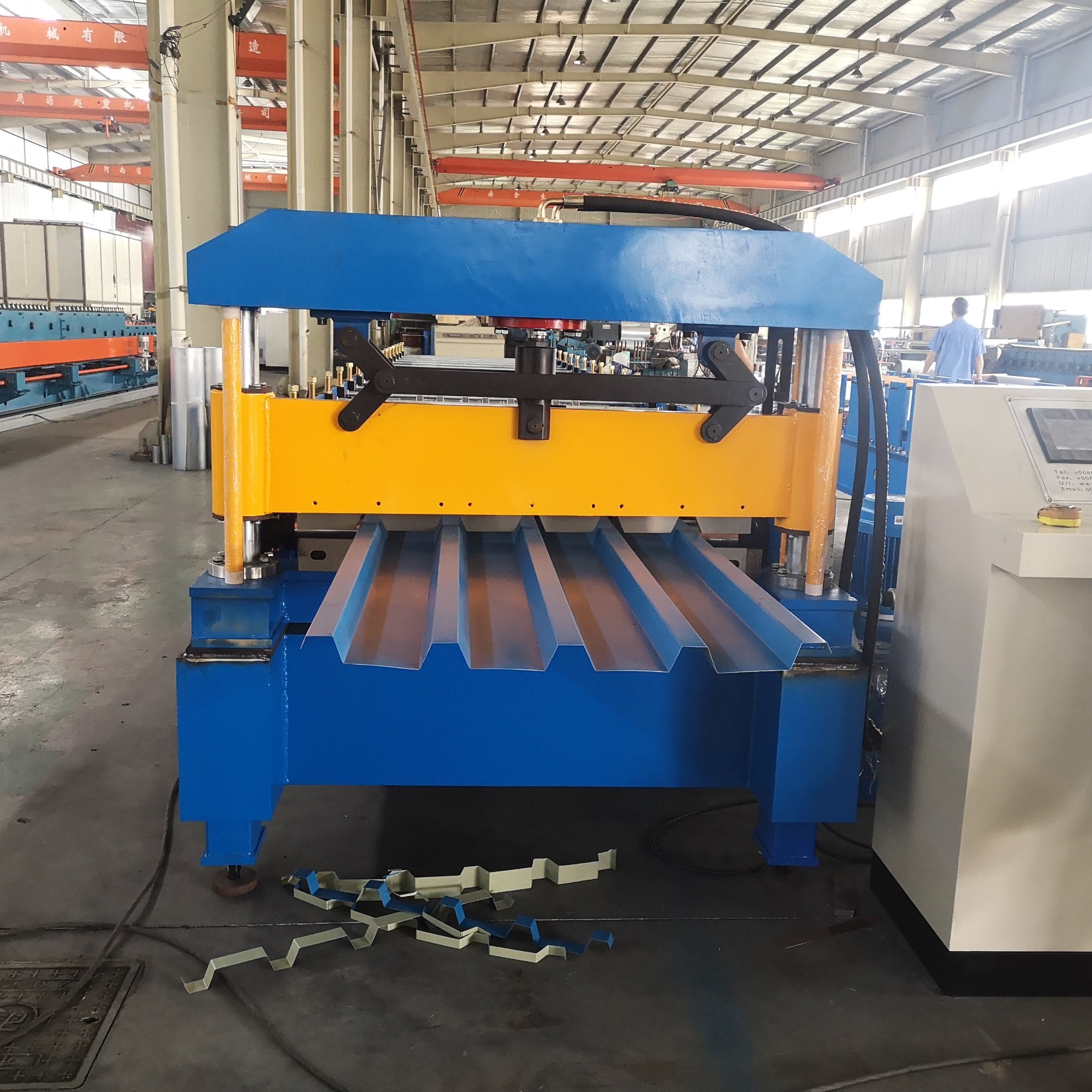

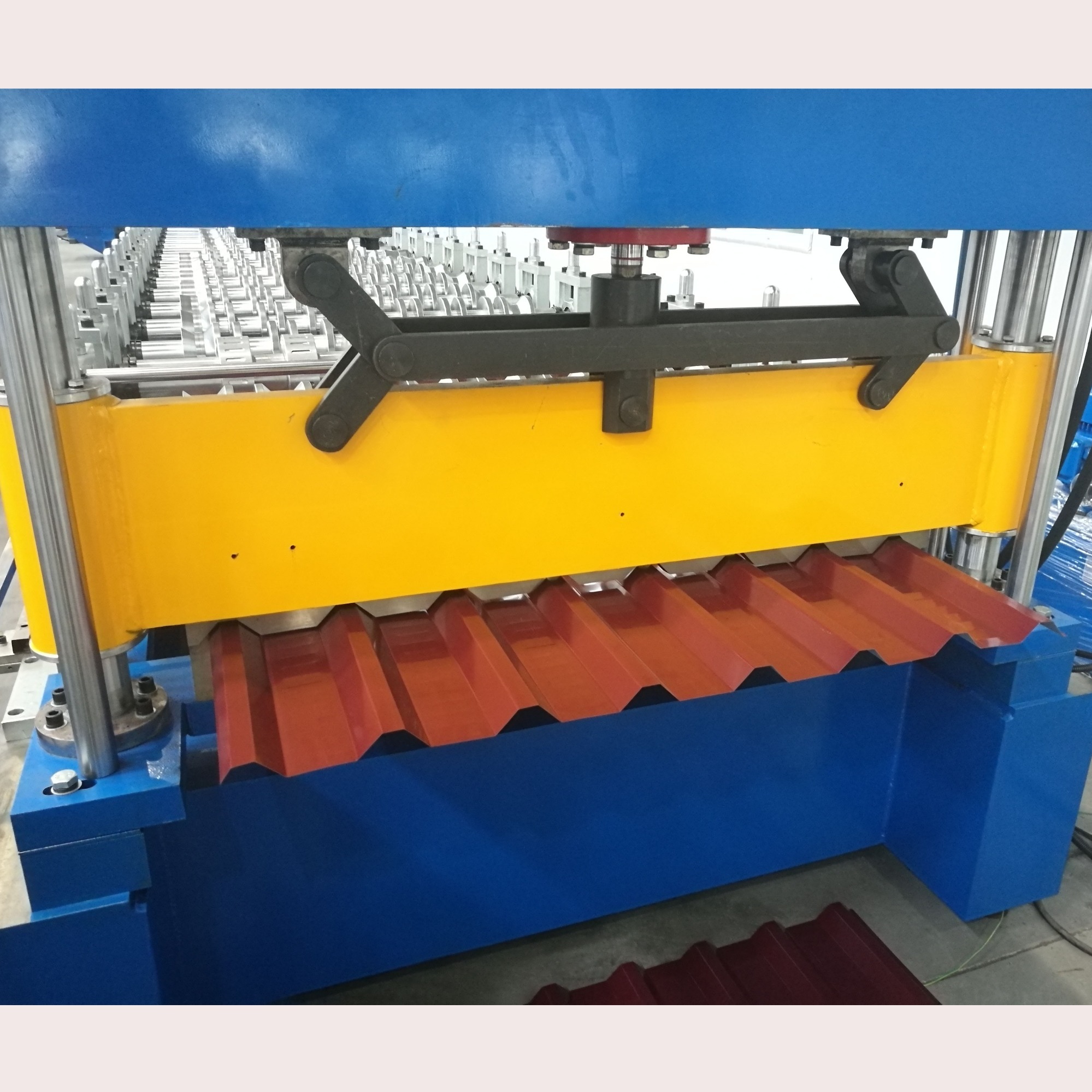

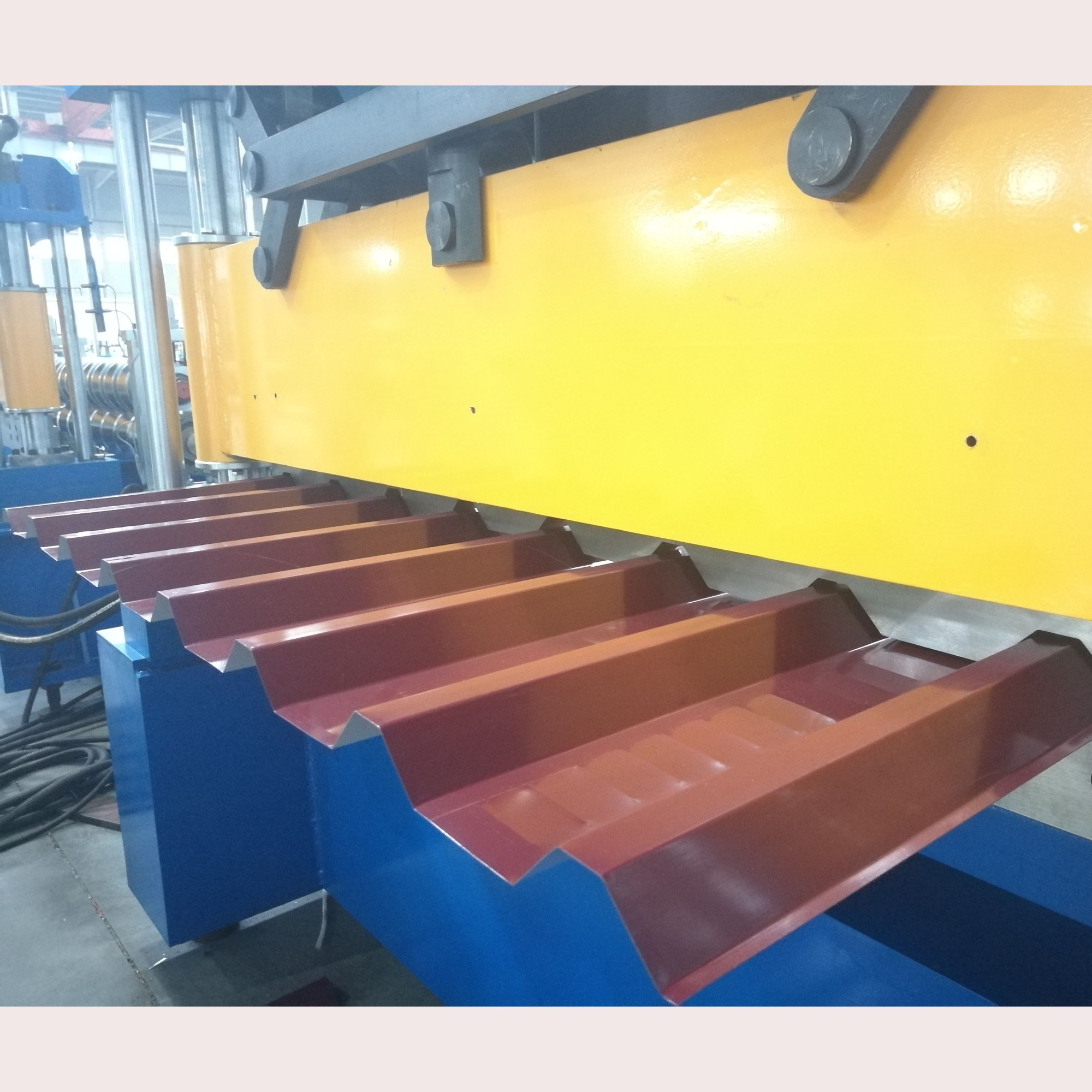

Measuring Length &Shearing
| MODEL |
GW25-205-820 |
OPERATION |
Touch screen and button |
| MATERIAL TYPE |
Color steel sheet |
HYDRAULIC SYSTEM PRESSURE |
12Mpa |
| MATERIAL THICKNESS |
0.3-0.7mm |
MAIN MOTOR POWER |
4Kw |
| MATERIAL FEEDING WIDTH |
1000mm/1200mm/1250mm |
HYDRAULIC MOTOR POWER |
3Kw |
| MATERIAL YIELD STRESS |
235-345Mpa |
DIMENSION |
About 8500*1500*1500mm |
| MAX. FORMING SPEED |
0-15m/min |
WEIGHT |
About 6T |
| ROLLER MATERIAL |
45# steel with hard chromed treatment |
WARRANTY |
1 year |
| ROLLER DRIVEN TYPE |
Chain / Gear-box transmission |
CERTIFICATE |
ISO, CE |
| CONTROLLER |
PLC |
|
|
PACKING
Packed by bundle or as customers' requirements and shipped by container.
Functional Design Tailored for Industrial Users
The roof sheet making machine is engineered primarily for industrial manufacturers and construction material providers focused on producing metal roofing sheets with consistent quality. It suits companies requiring a robust, automatic solution capable of processing color steel sheets precisely. As a reliable steel roll forming machine, it integrates streamlined controls via PLC systems and touch screen interfaces facilitating accurate operation. This equipment targets operators needing flexible feeding width options to produce various roof sheet profiles essential in modern architectural and structural projects, delivering efficiency and repeatability in large-scale roll forming production lines.
Comprehensive Technical Capabilities and Specifications
Equipped with a 12 MPa hydraulic system, the machine processes metal sheets ranging from 0.3 to 0.7 mm in thickness with a maximum speed of 15 meters per minute. The forming rollers, manufactured from hardened 45 steel, guarantee long-lasting precision shaping with minimal wear. The system adopts a robust chain/gear-box drive mechanism, ensuring stable, synchronized operation. Available in feeding widths of 1000, 1200, and 1250 mm, the metal roll forming machine accommodates diverse roofing dimensions, certified with ISO and CE standards validating its engineering reliability. Operators benefit from automated PLC control and user-friendly touch screen interfaces, supporting customizable roof sheet designs while ensuring compliance with industrial performance requirements.
Industrial Applications and Integration into Roofing Systems
This solution excels in producing metal roof sheets for construction, roofing retrofitting, and architectural development sectors. As a versatile roll forming machine for sale, it enables manufacturers to create IBR or corrugated profiles rapidly for metal roofing systems, providing seamless integration into existing production workflows. The machine’s adaptability supports prototyping new sheet shapes and facilitates operator training, vital for maintaining consistent output quality. Its incorporation into end-to-end roof panel lines enhances manufacturers’ capacities to generate custom profiles, serving regional suppliers and large-scale projects where efficiency, quality control, and precision are critical parameters.
Product Advantages
Structural and Design Engineering Benefits
The machine’s structural design emphasizes modular construction, allowing easy maintenance and part replacement to reduce downtime. Its hardened 45 steel rollers with hard chroming provide excellent abrasion resistance, minimizing wear over extended production cycles—a crucial factor for any reliable steel roll forming machine. The chain and gear-box driven transmission ensures synchronous, uniform force distribution, improving profile accuracy and surface smoothness. Customized feeding widths permit flexible adaptation to various client specifications, showcasing the system’s versatility from roll forming machine manufacturers dedicated to durable industrial machinery design.
Performance Optimization and User-Centric Operation
Performance enhancements include stable operation at speeds up to 15 m/min and precision forming that ensures profile consistency with minimal surface defects. An automatic PLC controller coupled with a touch screen interface simplifies operational complexity, reducing training time for technical staff and lowering the risk of human error. The system’s comprehensive user settings facilitate quick adjustments for different metal roofing profiles, delivering repeatable high-quality output critical to industrial users. The robust construction and certified quality provide assurance for long-term ROI, addressing key concerns of facilities investing in a high-performance metal roll forming machine.
Use Scenarios
Manufacturing Custom Metal Roof Sheets for Construction Projects
In the metal roofing manufacturing environment, the roof sheet making machine operates as a core production unit, enabling rapid customization of roof sheet profiles conforming to project specifications. Its ability to handle different feeding widths and thicknesses supports a broad range of roofing designs from corrugated to IBR sheets, which are essential in residential, commercial, and industrial roofing applications. The machine’s automated PLC control ensures consistent shaping accuracy and surface quality, critical in meeting building codes and client standards. Integration into high-volume production lines supports streamlined workflows and reduces lead times, improving supply chain efficiency for steel roll forming machine users.
On-Site Fabrication and Retrofit Applications in Roofing
For on-site fabrication and retrofit activities, this roll forming machine for sale provides a mobile, precise solution capable of producing replacement roof panels to exact specifications. The stainless steel or color steel roll forming capabilities deliver corrosion-resistant profiles required in diverse climates and structural settings. Its compact footprint and straightforward operation via PLC systems allow operators to manufacture sheets adjacent to construction sites, minimizing transportation risks and optimizing project timelines. This technical flexibility and compliance with ISO and CE standards ensure that site-specific manufacturing meets project demands while integrating fluidly with broader construction and roofing management systems.
About Us
Hangzhou Gonawell Machinery Co., Ltd. specializes in steel roll forming equipment with over 15 years of industry experience. We provide reliable, ISO- and CE-certified machinery and solutions for metal structure manufacturing. Contact us now for your custom quote or technical consultation to support your next project.
FAQ
What materials can the Roof Sheet Making Machine process and what thickness range does it support?
The GW25-205-820 Roof Sheet Making Machine processes color steel sheets with thickness ranging from 0.3 to 0.7 mm. It handles materials with yield strength between 235-345 MPa, ensuring compatibility with typical metal roofing materials for efficient roll forming machine production.
Can the machine create different roof sheet profiles for custom projects?
Yes, this metal roll forming machine supports multiple feeding widths (1000, 1200, 1250 mm) and allows customizable roof sheet shapes. The automatic PLC control system maintains precision and repeatability, ideal for businesses seeking tailored roof sheet designs.
What are the delivery lead times and warranty conditions for this steel roll forming machine?
The Roof Sheet Making Machine is typically delivered within 30 to 60 days after order confirmation. It comes with a 1-year warranty covering manufacturer defects, providing industrial buyers with assurance and long-term reliability when investing in a steel roll forming machine.
Are installation and maintenance services available for this roll forming machine for sale?
While the product page specifies machine operation is user-friendly with touch screen controls and PLC automation, professional installation and operator training are recommended to ensure optimal operation and maintenance. Contact the manufacturer for detailed support services.
