Size accurate, and seamless lap joint Various shapes can be customized, beautiful version Fast production speed and high work efficiency Email: info@gonawell.com WhatsApp: 008613456824686

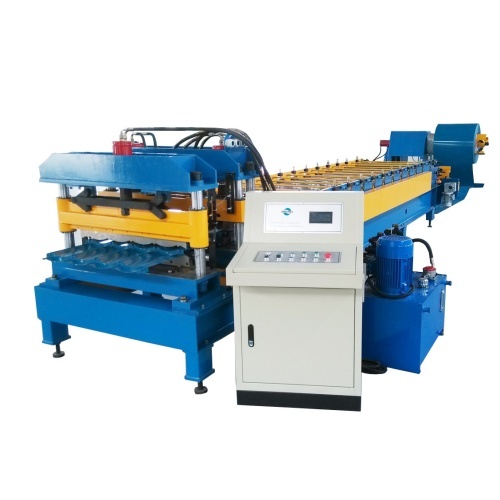

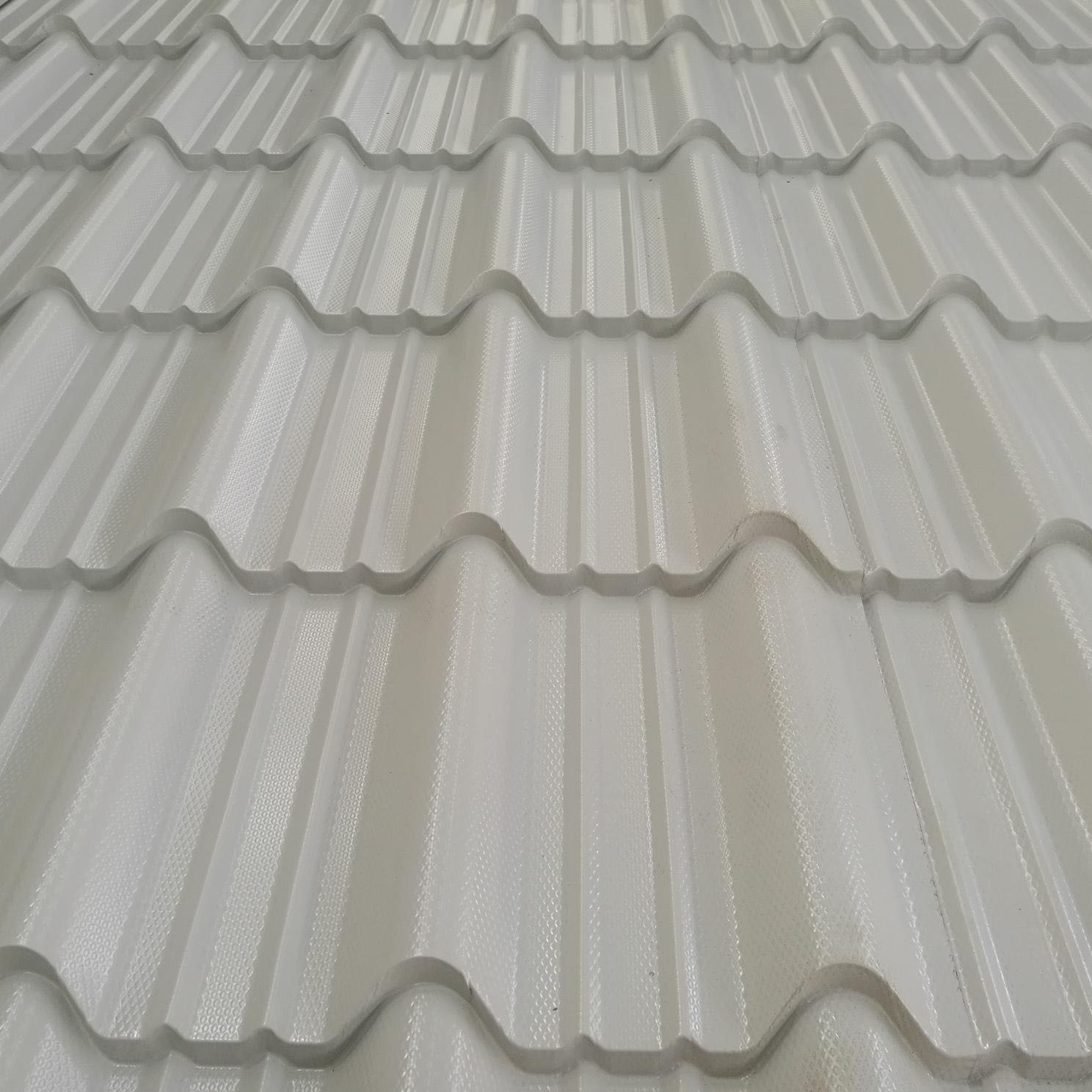

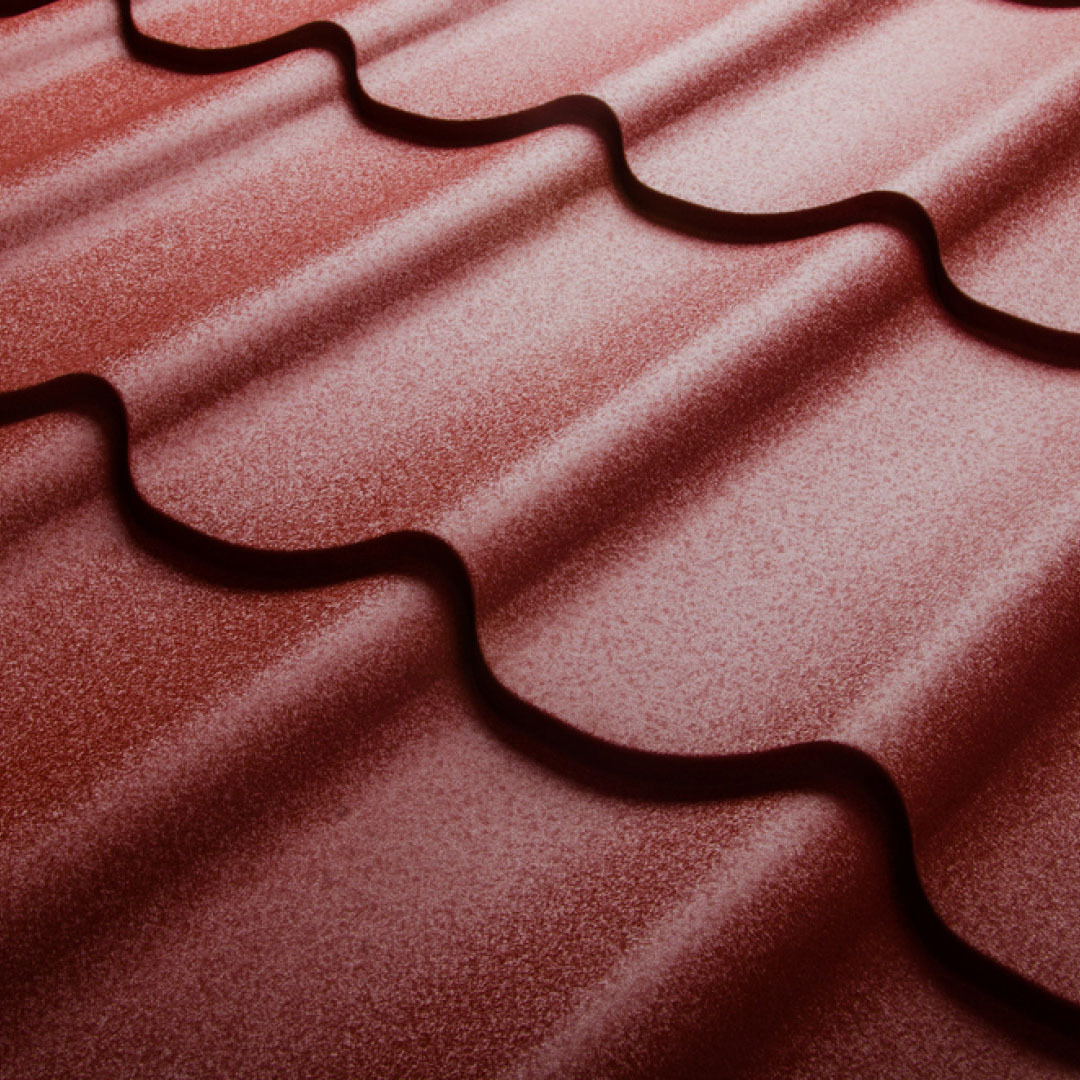

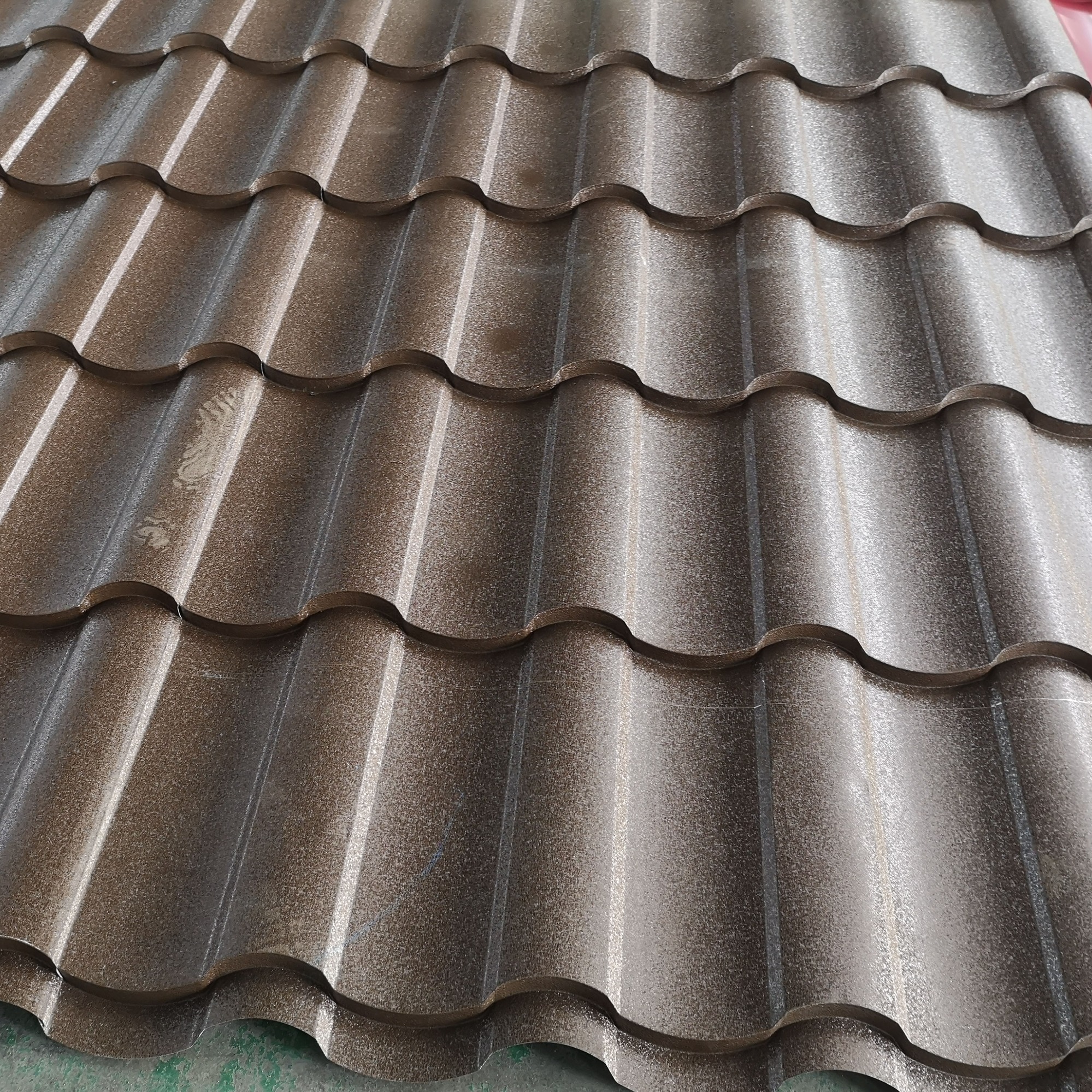

The glazed roof tile sheet is rolled and pressed by series modular tile sheet roll forming machine, it has many features, such as good appearance, primitive simplicity and unique style, noblest grade, and etc. It is widely used in garden style factories, scenic resorts, pavilions, hotels, villas, exhibition halls, country clubs, and so on for outdoor decorations.
WORK FLOW
Uncoiling
Sheet Guiding

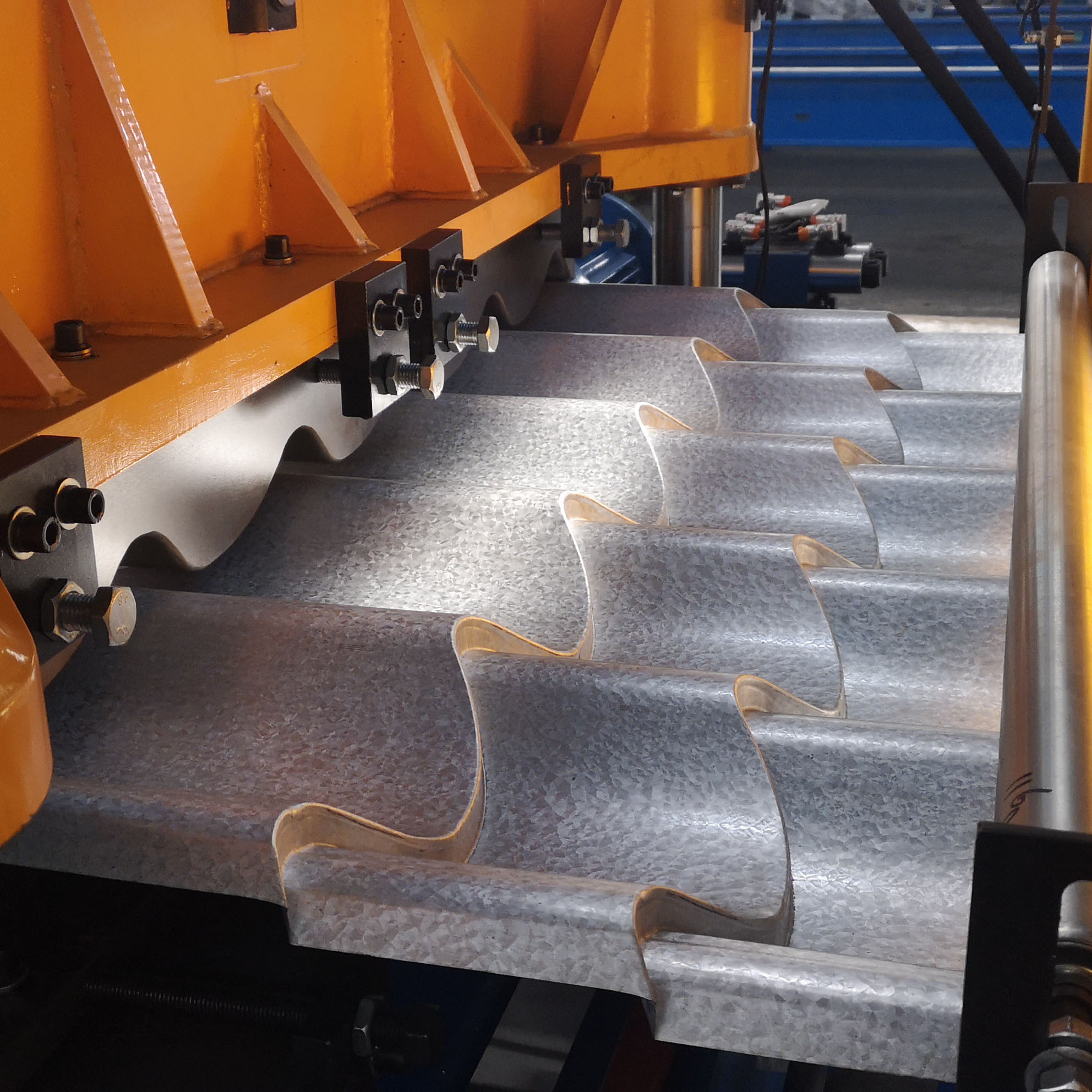

Roll Forming

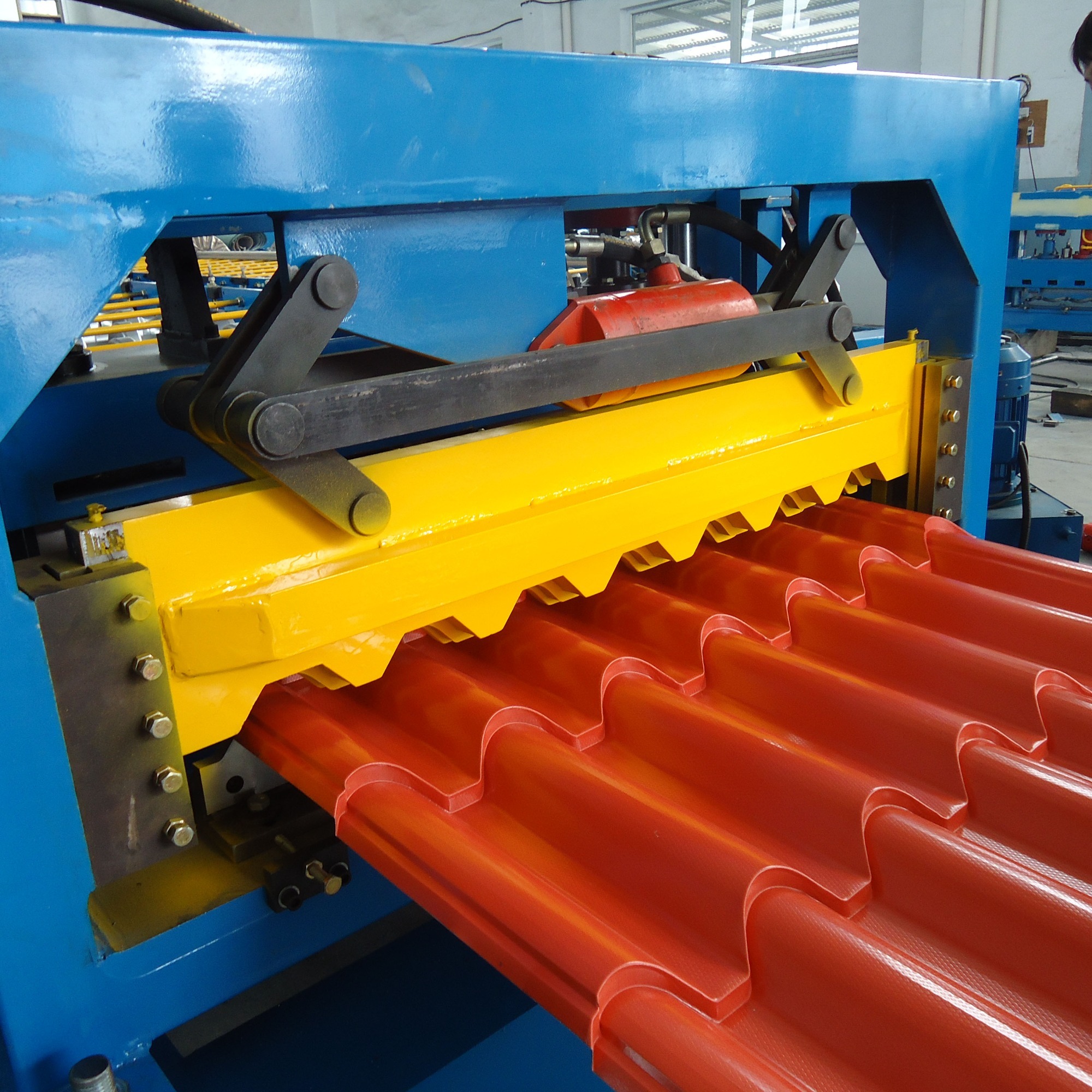

Pressing
Measuring Length &Shearing
Sheet to Support Table
QUICK DETAIL
MODEL
GWFM28-207-828
OPERATION
Touch screen and button
MATERIAL TYPE
Color steel sheet
HYDRAULIC SYSTEM PRESSURE
12Mpa
MATERIAL THICKNESS
0.3-0.6mm
MAIN MOTOR POWER
5.5Kw
MATERIAL FEEDING WIDTH
1000mm/1200mm/1250mm
HYDRAULIC MOTOR POWER
4Kw
MATERIAL YIELD STRESS
235-345Mpa
DIMENSION
About 8500*1500*1500mm
MAX. FORMING SPEED
2-3m/min or 5-6m/min
WEIGHT
About 6T
ROLLER MATERIAL
45# steel with hard chromed treatment
WARRANTY
1 year
ROLLER DRIVEN TYPE
Chain / Gear-box transmission
CERTIFICATE
ISO, CE
CONTROLLER
PLC
PACKING
Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM:
TT/ LC
DELIVERY TIME
30-60 days
Functional Focus on Industrial Roofing Production
This roof tile roll forming machine is engineered for manufacturers targeting the roofing segment, including producers of commercial and residential roofing tiles. Designed by a reputable roof tile roll forming machine supplier, it caters to mid-to-large scale production environments requiring consistent tile profiles with seamless lap joints. The system enables fast processing of color steel sheets into glazed or corrugated tile patterns suitable for diverse architectural requirements. Its adaptability for various feeding widths and material thicknesses ensures compatibility with multiple production demands and operational workflows in roofing material fabrication.
Technical Composition and Operational Specifications

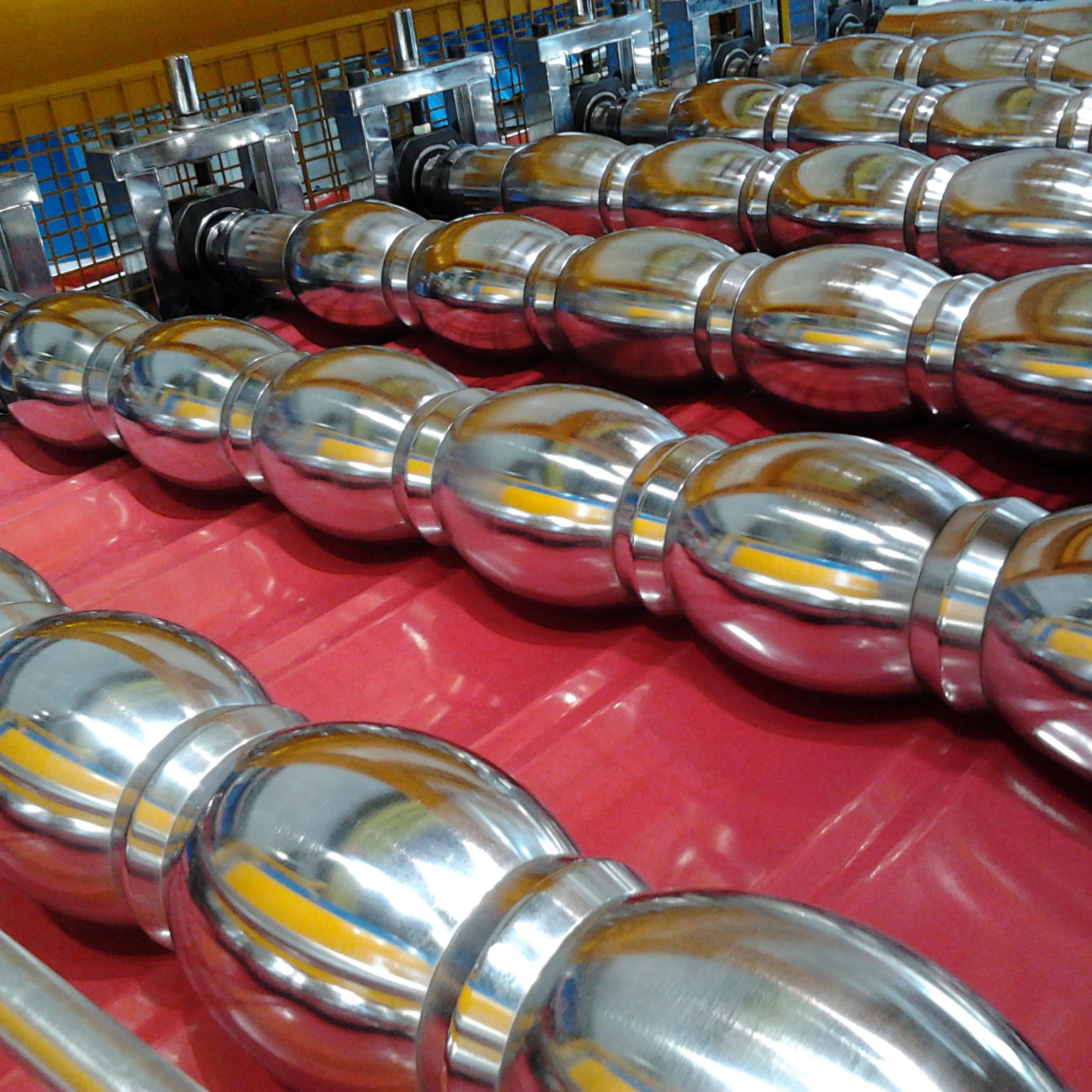

Featuring 45 steel rollers treated with hard chrome, this roof glazed tile roll forming machine offers exceptional durability and precision forming capability. The equipment runs with a 5.5 kW main motor supported by a 4 kW hydraulic motor operating at 12 MPa pressure, delivering forming speeds from 2 to 6 meters per minute depending on selected settings. This corrugated roof tile roll forming machine accommodates material thickness ranging from 0.3 to 0.6 mm and feeding widths of 1000, 1200, or 1250 mm. Its integrated control system utilizes a touch screen and manual buttons for intuitive setup, length measurement, and sheet handling, ensuring reproducible tile dimensions and seamless production cycles.
Applications and Operational Value in Roofing Manufacturing
Primarily deployed in roofing material manufacturing facilities, this roof tile roll forming machine for sale provides a reliable, efficient solution for producing consistent roof tiles used in new construction, renovation, and custom design applications. Its ability to generate multiple tile shapes with precise laps facilitates rapid inventory production and batch customization. The machine integrates seamlessly into production lines requiring ISO and CE compliance, supporting workflow efficiencies from sheet uncoiling through final tile handling. Its robust build and certified quality permit long-term service in demanding industrial settings focused on metal roof system components.
Product Advantages
Structural Design and System Integration
This roof tile roll forming machine is built on a robust structural frame capable of supporting around 6 tons, optimizing stability for continuous operation. The design incorporates advanced chain and gearbox transmission for roller drive ensuring consistent force application and minimal mechanical wear. Featuring 45 steel rollers with hard chrome treatment, this roof glazed tile roll forming machine guarantees longevity and precision forming accuracy. Modularity in tile profile tooling allows users to switch between various preset or customized designs, enhancing versatility for different roofing product lines.
Performance Efficiency and User-Oriented Features
Operational ease is ensured by a PLC-controlled interface with touch screen and manual button options, simplifying machine setup and real-time monitoring for operators. The roof tile roll forming machine for sale delivers consistent forming speeds up to 6 m/min, balancing throughput with precision. Hydraulic systems running at 12 MPa pressure provide stable forming force while minimizing material deformation defects. This corrugated roof tile roll forming machine is designed for reliable uptime with minimal maintenance, reducing total cost of ownership and maximizing production yield for manufacturing facilities.
Use Scenarios

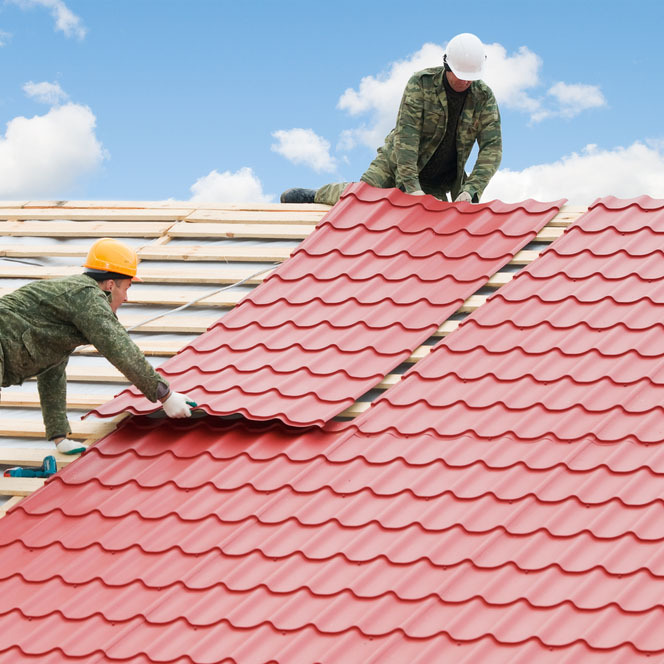

Use in Residential and Commercial Roofing Production
In the manufacturing environment dedicated to residential and commercial roofing tile production, the roof tile roll forming machine supplier provides a critical apparatus for forming uniform roof tiles with precise lap joints. This machine efficiently processes high-quality color steel sheets into glazed roofing products, meeting rigorous industry standards. Its adaptability to various tile widths and thicknesses ensures conformity with diverse architectural designs while maintaining fast production cycles. Integration with existing production workflows enhances inventory control and just-in-time manufacturing strategies, critical for large-scale roofing suppliers and fabricators.
Role in Renovation and Custom Tile Manufacturing
Within renovation projects or specialty tile production shops, the roof tile roll forming machine serves as an essential tool for matching and replacing existing roof tiles or developing prototype profiles. Its capacity for customization and fast adjustment allows rapid response to specific project requirements, ensuring compatibility with older or specialized architectural styles. The machine’s precise forming and cutting capabilities improve material usage efficiency and reduce waste. It complements quality assurance procedures by consistently producing tiles with uniform dimensions and clean finish, supporting both operational efficiency and customer satisfaction in renovation workflows.
About Us
Hangzhou Gonawell Machinery Co., Ltd. specializes in steel roll forming equipment for metal structure enclosures, with over 15 years of industry experience. We deliver durable, efficient solutions certified to ISO and CE standards. Contact us now for your custom quote and professional support.
FAQ
What material thickness range can the roof tile roll forming machine handle?
The roof tile roll forming machine processes color steel sheets with thicknesses from 0.3 to 0.6 mm. This range ensures compatibility with various roofing requirements while maintaining precision and durability in finished tile profiles.
Can the machine produce multiple tile profiles to match architectural designs?
Yes, this roof tile roll forming machine is configurable to form various tile shapes and widths, including feeding widths of 1000, 1200, or 1250 mm, enabling customization to suit different project specifications.
How long is the delivery time after placing an order for the roof tile roll forming machine?
Typical delivery timelines for the roof tile roll forming machine for sale range between 30 to 60 days, depending on order specifics and customization requirements. This allows for proper assembly and quality assurance before shipment.
What type of maintenance is required to ensure reliability of the roof tile roll forming machine?
Regular maintenance includes lubrication of the 45 steel rollers with hard chrome treatment, hydraulic system checks at 12 MPa pressure, and periodic inspection of transmission components. These actions help sustain the machine’s high throughput and long service life.
