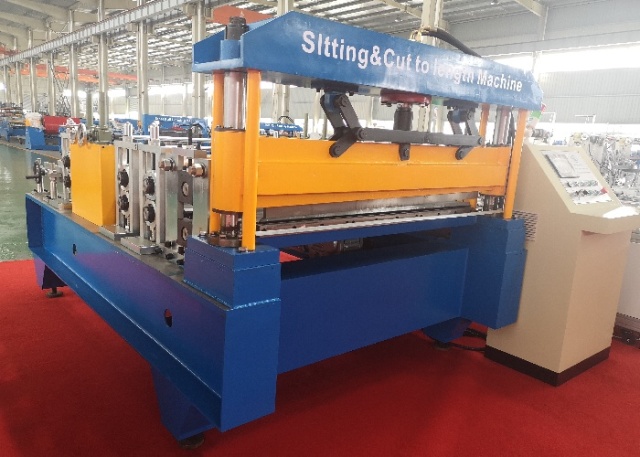

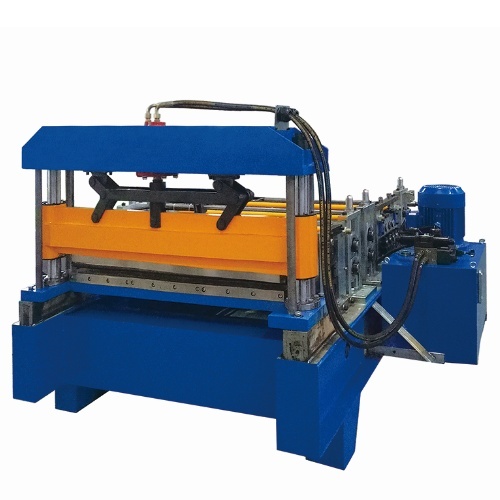

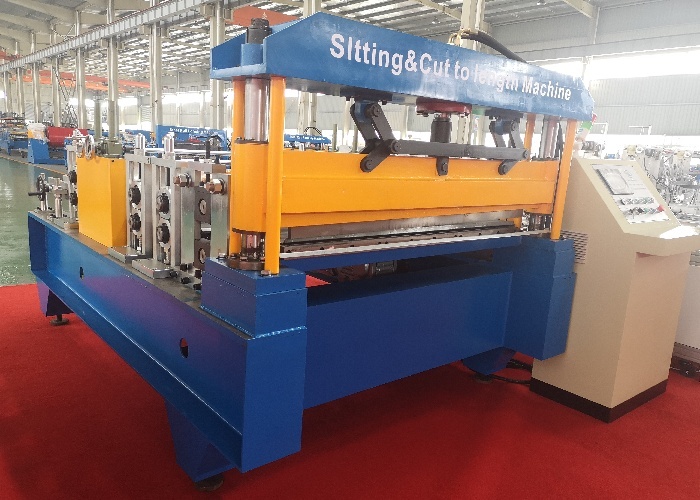

A slitting, leveling and cut to length machine is a vital piece of equipment in metal fabrication, designed to flatten coiled metal sheets and cut them into precise lengths. Whether handling steel, aluminum, or other alloys, this machine ensures consistent flatness, eliminating warping or unevenness from the coiling process—critical for industries like automotive, construction, and aerospace.
| MODEL | GWFM | OPERATION | Touch screen and button |
| MATERIAL TYPE | Steel, Aluminium alloy | LENGTH CUT | 10-9999mm |
| MATERIAL THICKNESS | 0.2-1.0mm | STACKER LENGTH | 3000-6000mm |
| MATERIAL FEEDING WIDTH | 1000mm/1250mm | COIL WEIGHT | 5-10T |
| MATERIAL YIELD STRESS | 235-345Mpa | DIMENSION | About 10000*1500*1500mm |
| MAX. WORKING SPEED | 0-30m/min | CONTROL SYSTEM | PLC |
| SLITTING &CUTTING PRECISSION | +/-0.5mm | WARRANTY | 1 year |
| MIN. SLITTING SIZE | 60mm | CERTIFICATE | ISO, CE |
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.
