Standing Seam Forming Machine

Name: Standing Seam Forming Machine
Brand: www.gonawell.com
SKU: GW-470
Availability: InStock
Rating: 5 (1 reviews)

No.GW-470

Suitable for thickness 0.3-0.7mm Work speed 0-15m/min Accurate size, seamless lap joint Various sizes can be customized Automatic PLC control system Email: info@gonawell.com WhatsApp: 0086 13456824686

Standing Seam Roof Forming Machine:

GET A QUOTE

Add to Quote List View Quote List

Description

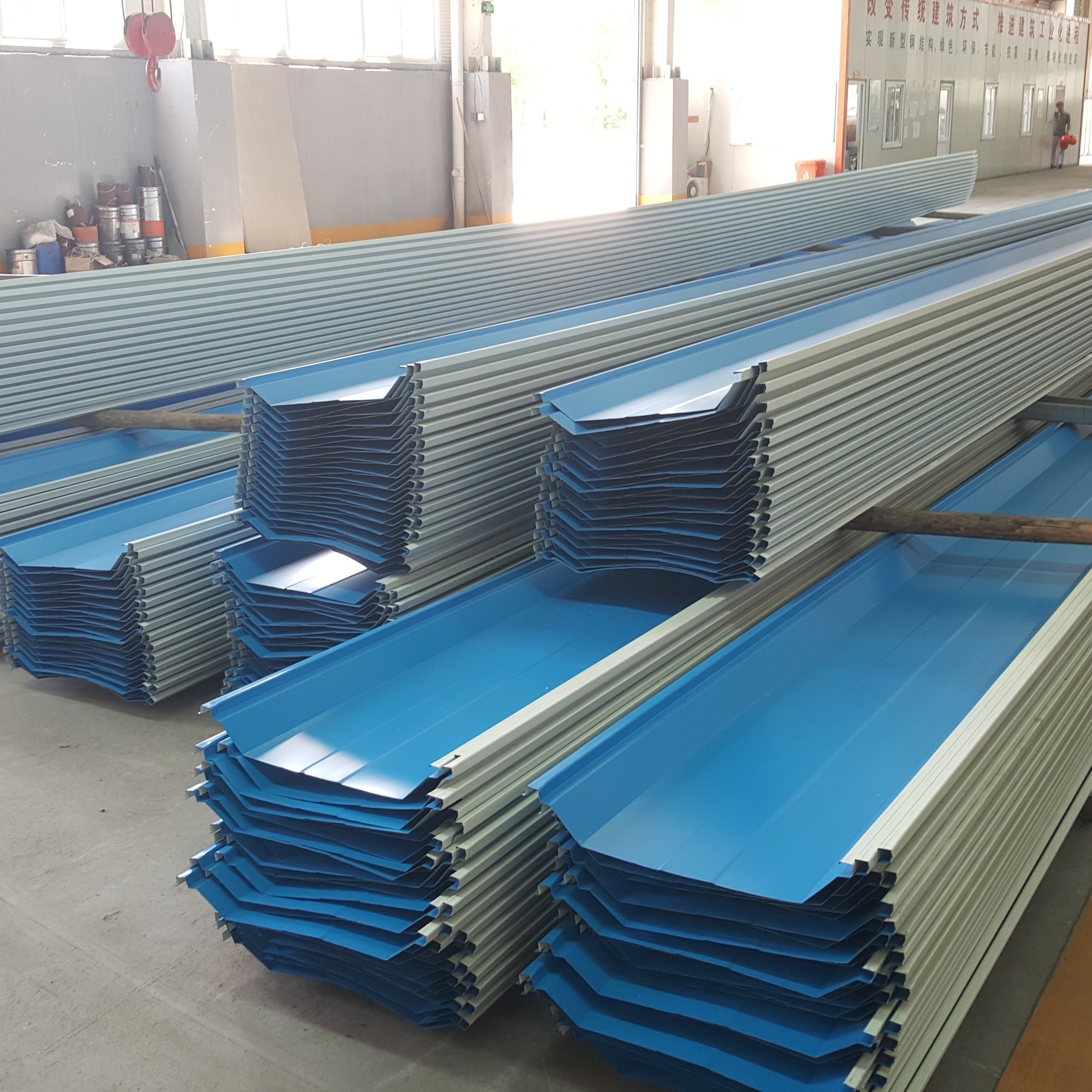

The standing seam metal roof system is a special plate-shaped metal plate based on standing seam interlocking design. This advantage is reflected in the ability to produce longitudinally extra-long panels without deformation due to stress. Profiles and size are customized as per customers' requirements.

WORK FLOW

Uncoiling

Sheet Guiding

Roll Forming

Measuring Length &Shearing

Sheet to Support Table

QUICK DETAIL

MODEL	GW-470	OPERATION	Touch screen and button
MATERIAL TYPE	Color steel sheet	HYDRAULIC SYSTEM PRESSURE	12Mpa
MATERIAL THICKNESS	0.3-0.7mm	MAIN MOTOR POWER	5.5Kw
MATERIAL FEEDING WIDTH	600mm or as design	HYDRAULIC MOTOR POWER	3Kw
MATERIAL YIELD STRESS	235-345Mpa	DIMENSION	About 550010001500mm
MAX. FORMING SPEED	0-15m/min	WEIGHT	About 4T
ROLLER MATERIAL	45# steel with hard chromed treatment	WARRANTY	1 year
ROLLER DRIVEN TYPE	Chain transmission	CERTIFICATE	ISO, CE
CONTROLLER	PLC

PACKING

Packed by bundle or as customers' requirements and shipped by container.

PAYMENT TERM:

TT/ LC

DELIVERY TIME

:30-60 days
