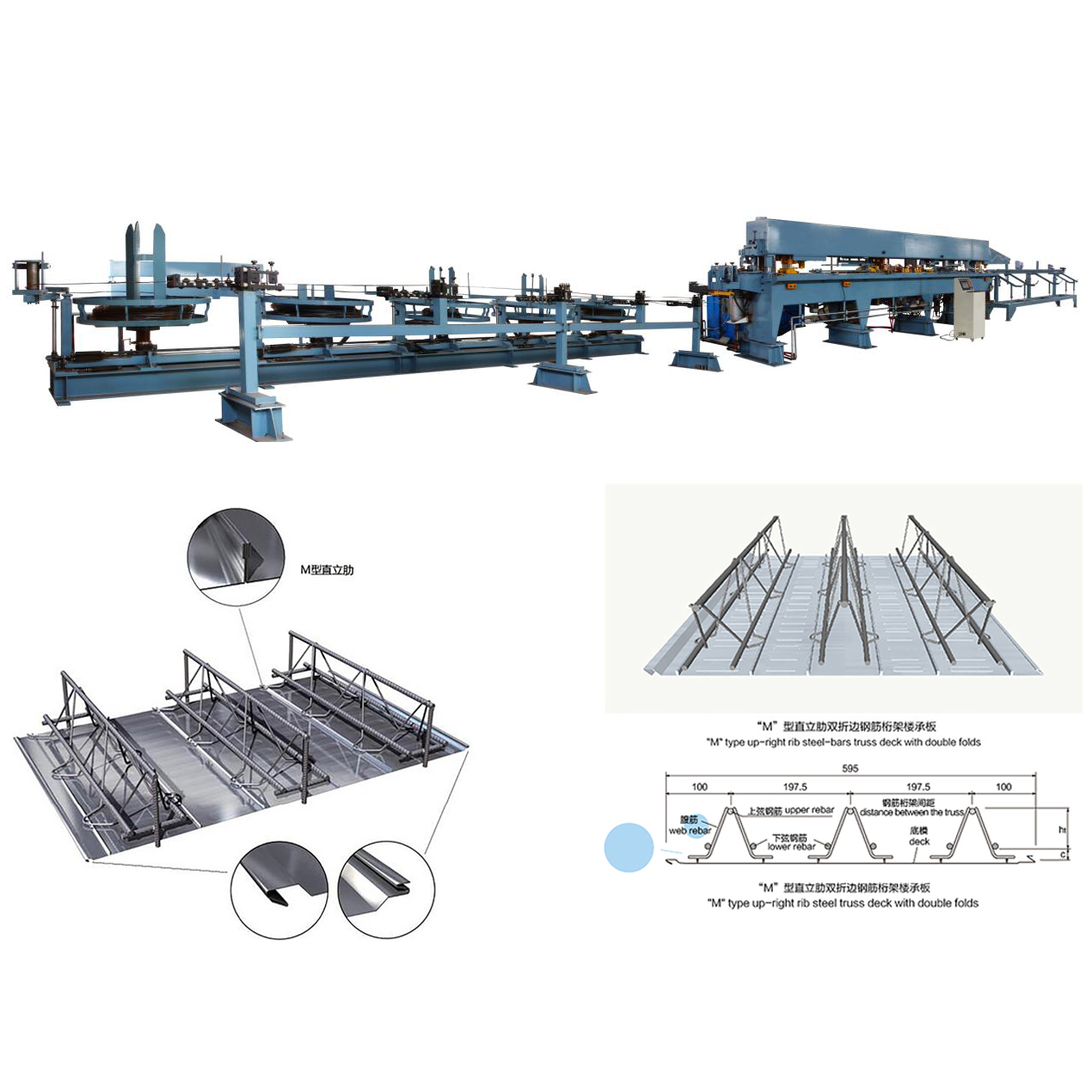

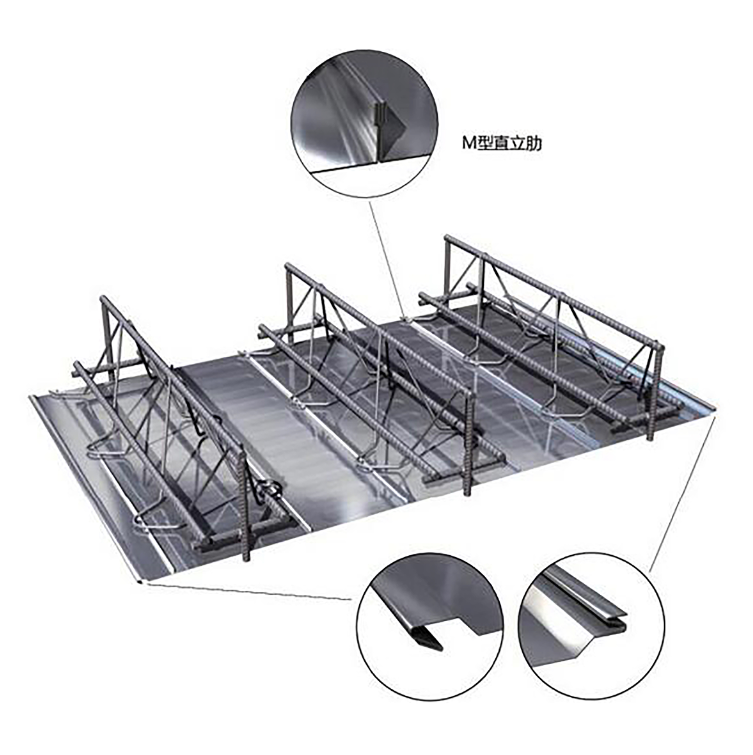

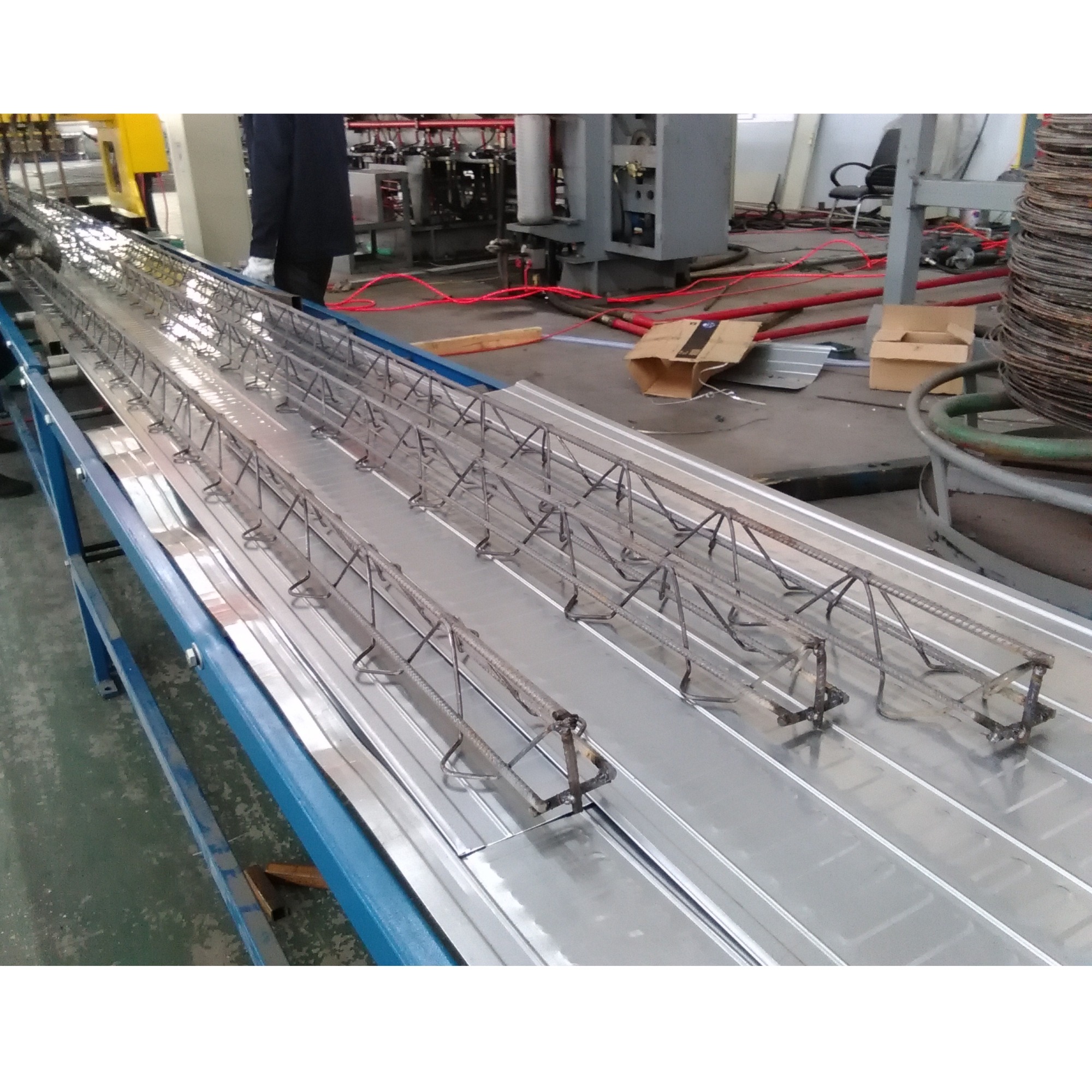

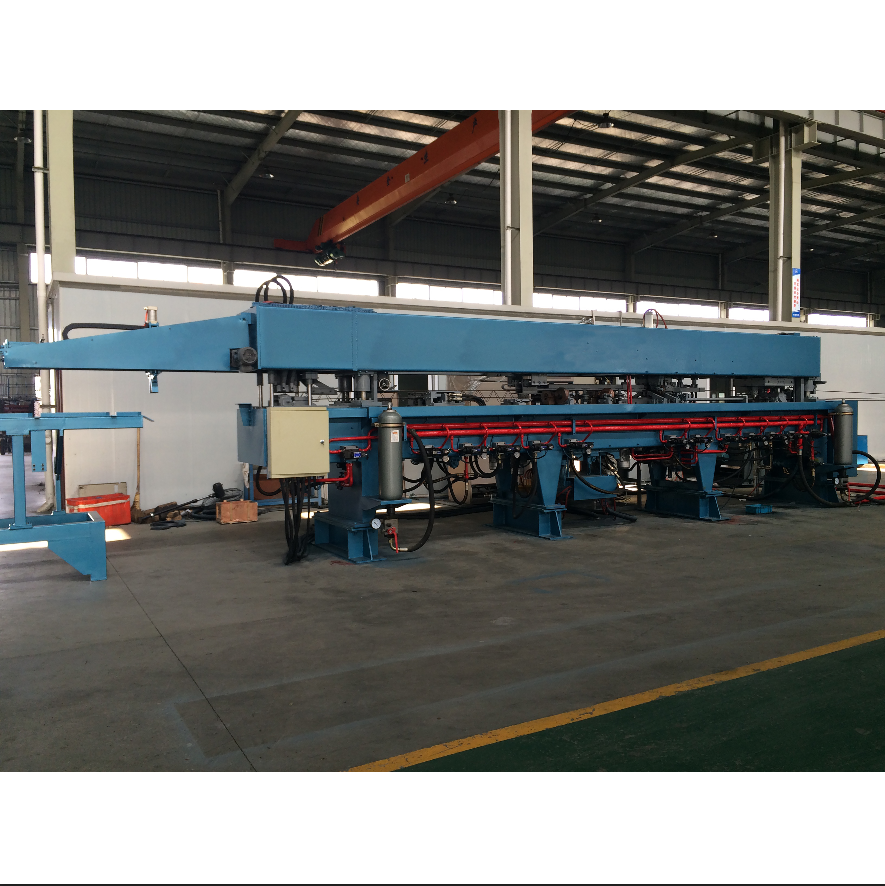

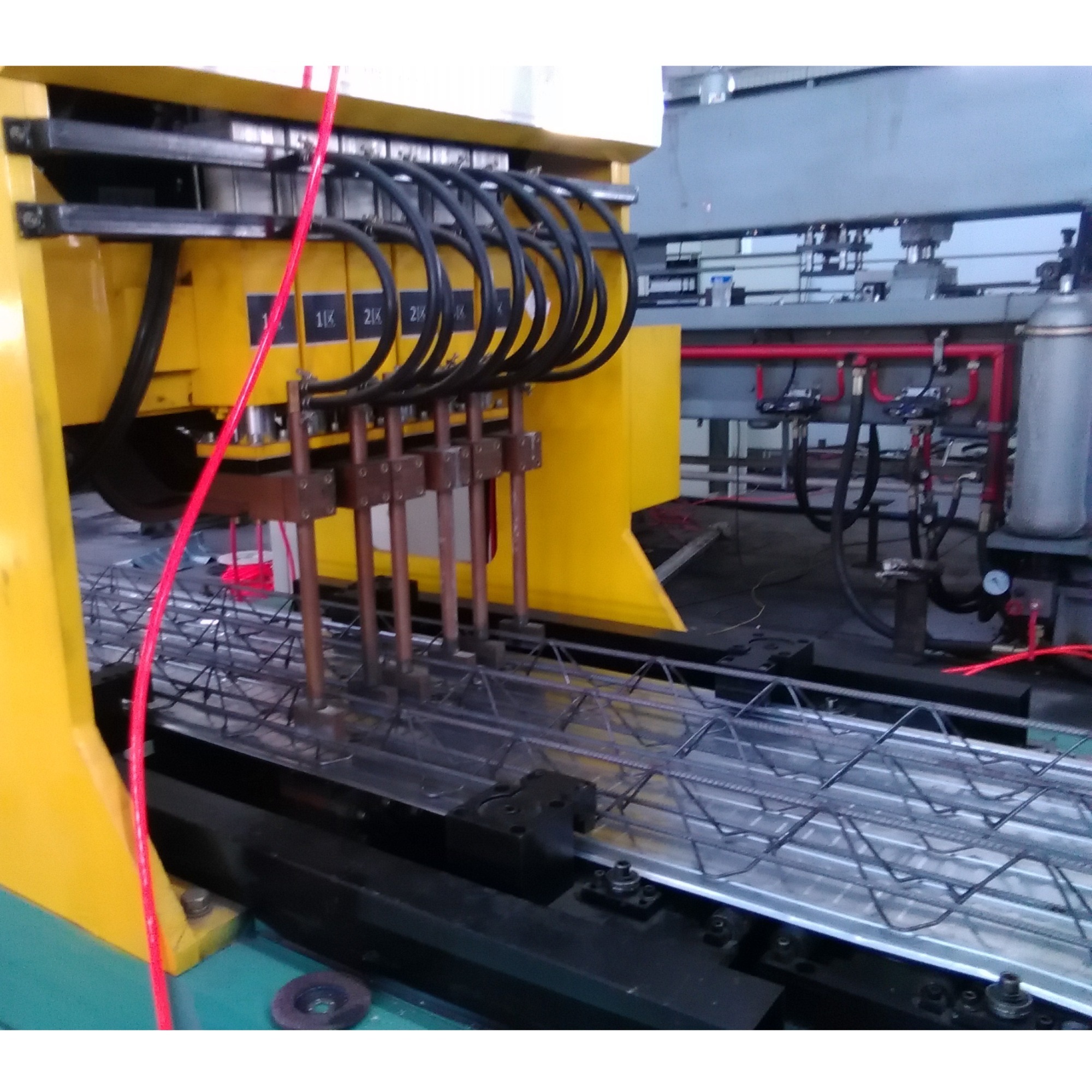

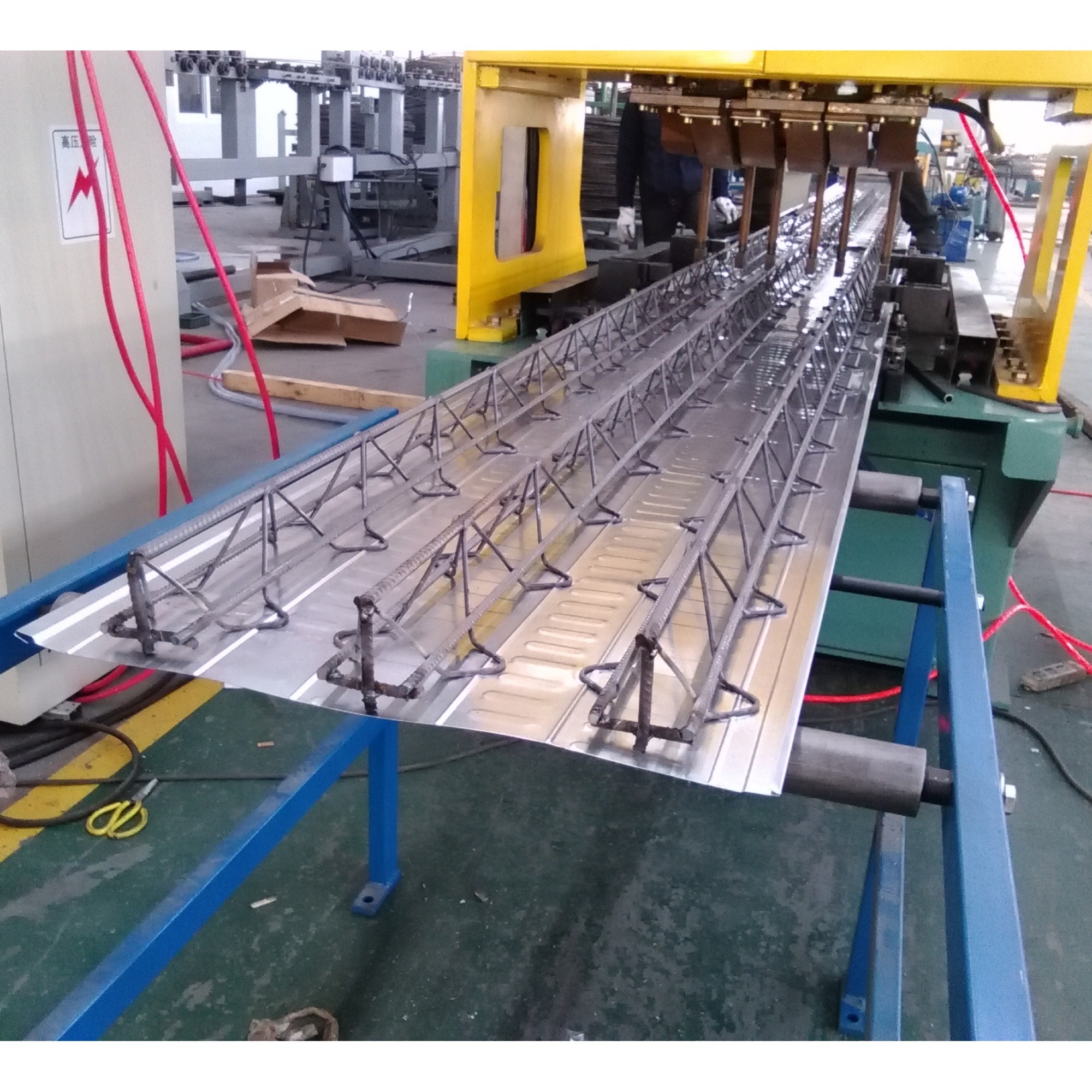

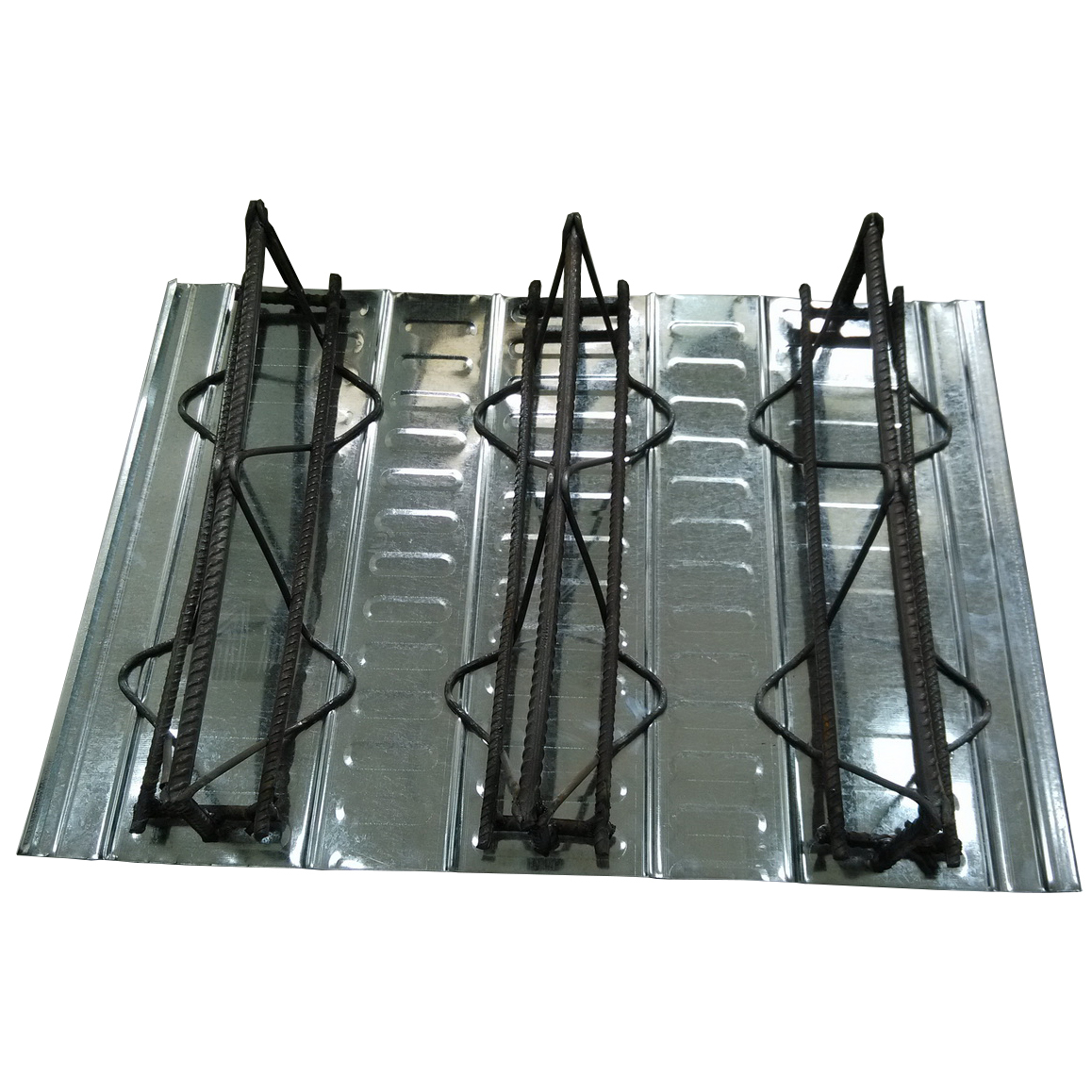

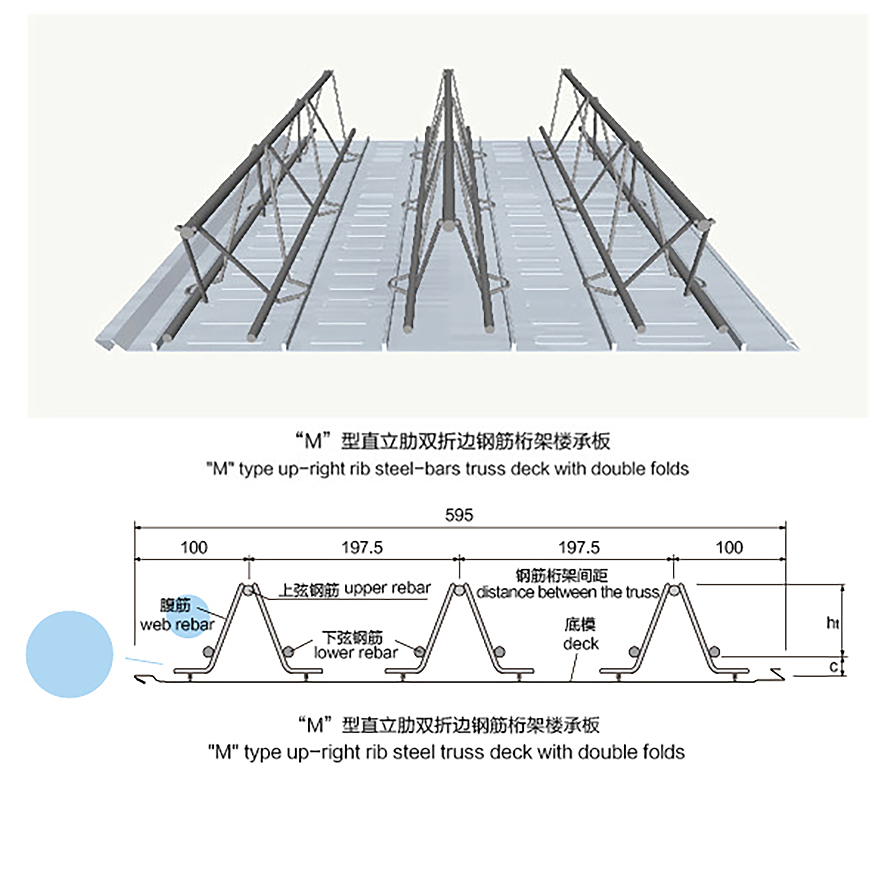

Self-support steel bar truss deck production line is a steel bar machine that welds longitudinal bars and web bars together at a certain distance. Consists of truss welding line bottom panel forming machine and board spot welding machine. Combining mechanism, electricity, hydraulic and pneumatics with microcomputer control, it performs whole set production process of steel molding board’s truss, galvanized steel forming and assembling & welding.
| MODEL | GWST8-12 | OPERATION | Touch screen and button |
| MATERIAL TYPE | Color steel sheet | HYDRAULIC SYSTEM PRESSURE | 12Mpa |
| MATERIAL DIAMETER | 4-12mm | MAIN MOTOR POWER | 18.5-30Kw |
| MATERIAL FEEDING SIZE | As request | HYDRAULIC MOTOR POWER | 5.5-7.5Kw |
| MATERIAL YIELD STRESS | 235-345Mpa | DIMENSION | About 15000*1500*1500mm |
| MAX. FORMING SPEED | 0-5m/min | WEIGHT | About 10T |
| ROLLER MATERIAL | GCr15 with hard chromed treatment | WARRANTY | 1 year |
| ROLLER DRIVEN TYPE | Chain / Gear-box transmission | CERTIFICATE | ISO, CE |
| CONTROLLER | PLC |
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.
