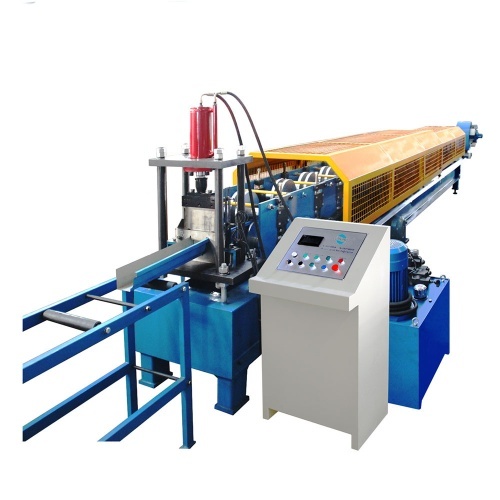

| MODEL | GWFM100-120 | OPERATION | Touch screen and button |
| MATERIAL TYPE | Color steel sheet | HYDRAULIC SYSTEM PRESSURE | 12Mpa |
| MATERIAL THICKNESS | 0.3-0.7mm | MAIN MOTOR POWER | 4Kw |
| MATERIAL FEEDING WIDTH | 387mm or as design | HYDRAULIC MOTOR POWER | 3Kw |
| MATERIAL YIELD STRESS | 235-345Mpa | DIMENSION | About 5500*1000*1500mm |
| MAX. FORMING SPEED | 0-15m/min | WEIGHT | About 4T |
| ROLLER MATERIAL | 45# steel with hard chromed treatment | WARRANTY | 1 year |
| ROLLER DRIVEN TYPE | Chain transmission | CERTIFICATE | ISO, CE |
| CONTROLLER | PLC |
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.
