| MODEL | GW-195*800 | OPERATION | Touch screen and button |
| MATERIAL TYPE | Galvanized, Pre-painted steel coils | HYDRAULIC SYSTEM PRESSURE | 12Mpa |
| MATERIAL THICKNESS | 0.5-1.0mm | MAIN MOTOR POWER | 11Kw as request |
| MATERIAL FEEDING WIDTH | As request | HYDRAULIC MOTOR POWER | 5.5Kw as request |
| MATERIAL YIELD STRESS | 235-345Mpa as request | DIMENSION | About 9000*1300*1500mm |
| MAX. FORMING SPEED | 0-15m/min | WEIGHT | About 6T |
| ROLLER MATERIAL | GCr15 with hard chromed treatment | WARRANTY | 1 year |
| ROLLER DRIVEN TYPE | Chain / Gear-box transmission | CERTIFICATE | ISO, CE |
| CONTROLLER | PLC | PUNCHING | possible |
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.

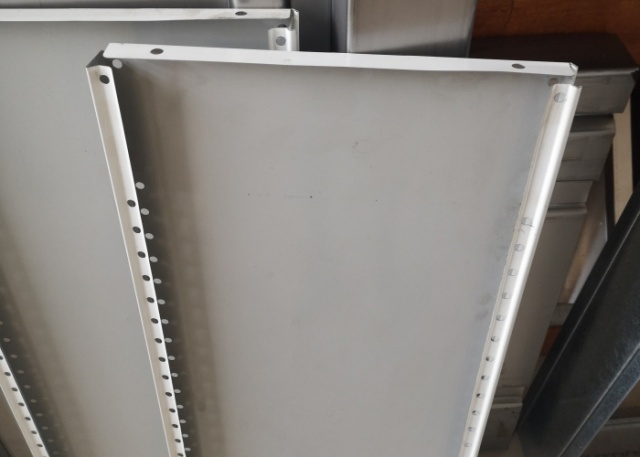

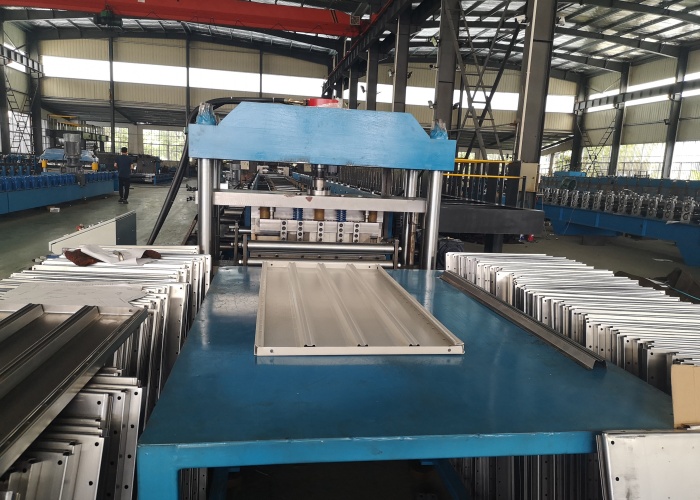

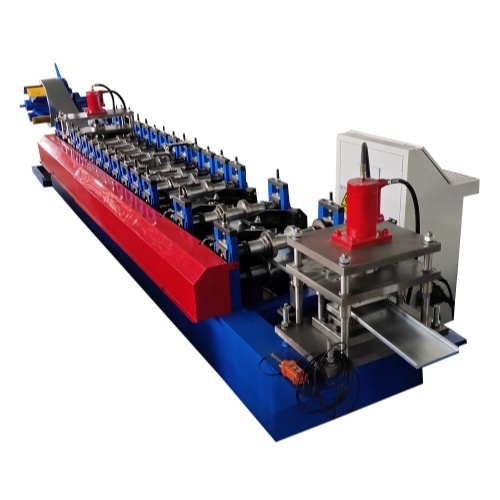

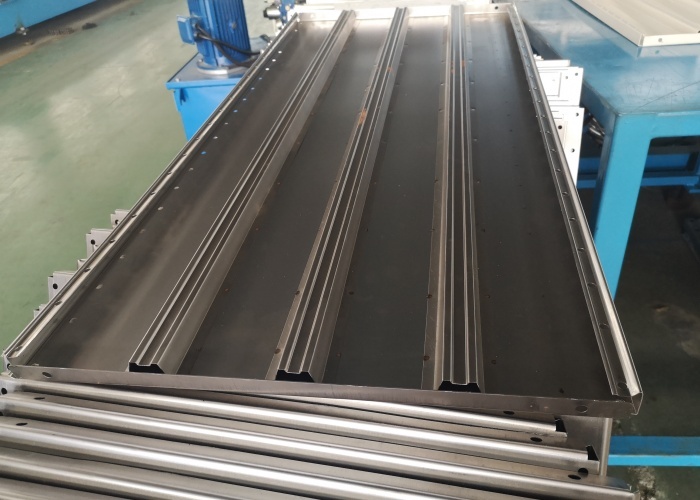

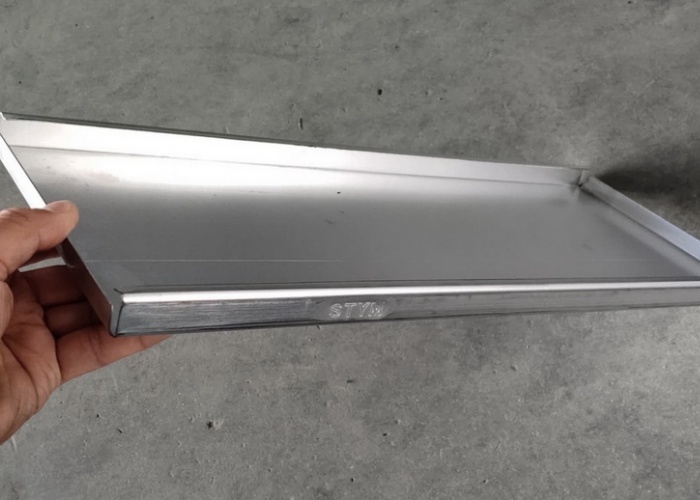

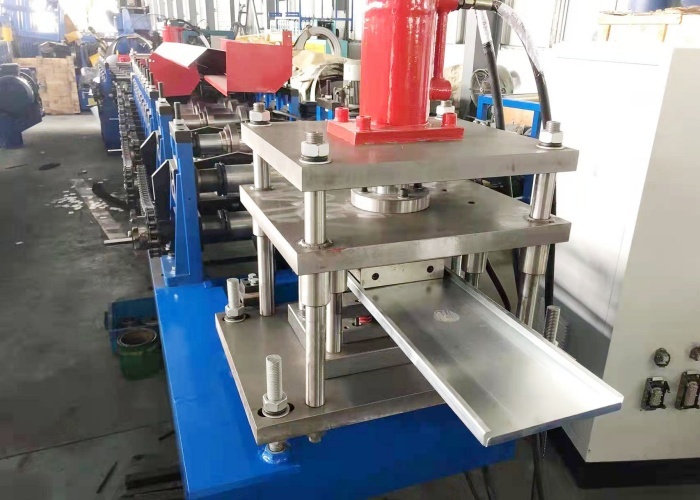

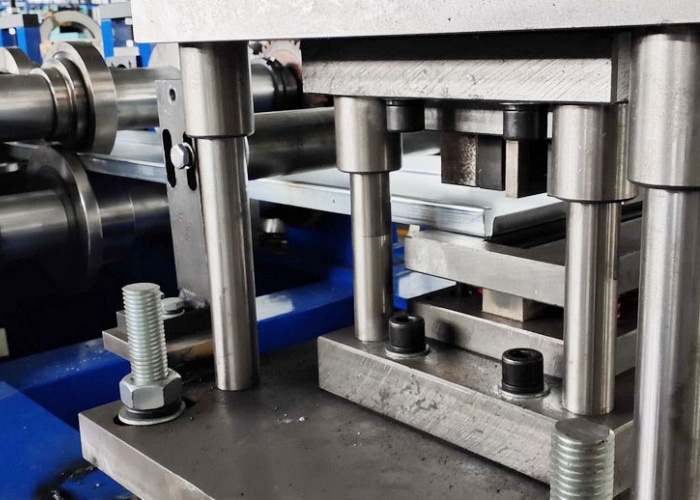

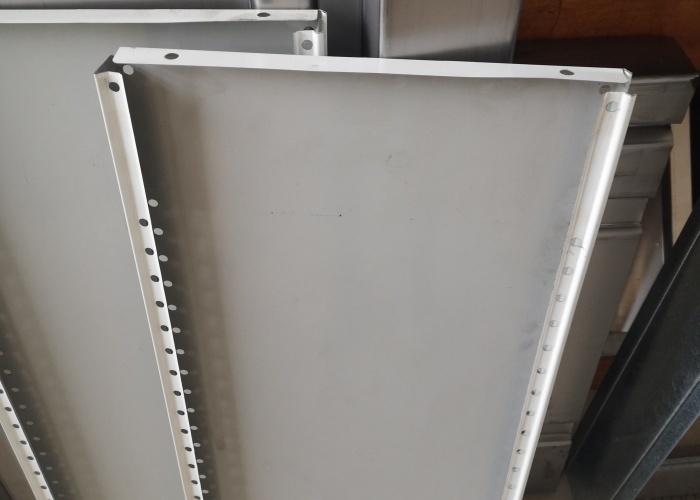

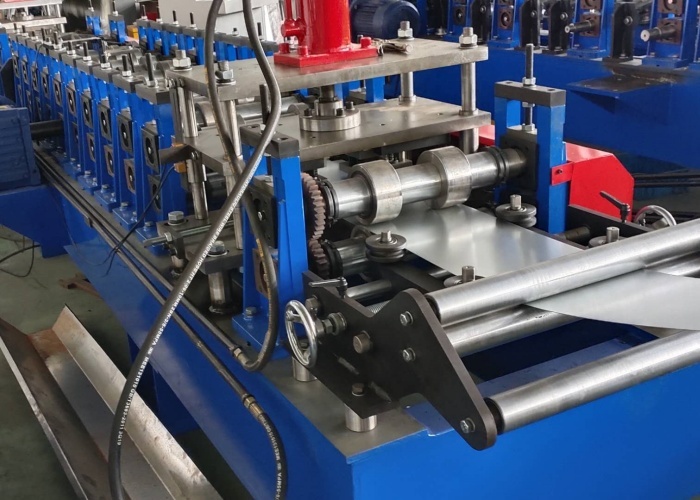

As a professional supplier of steel roll forming machine, we proudly present our high-performance storage shelf panel roll forming machine, a specialized metal forming equipment designed exclusively for producing high-quality storage shelf panels—the key components of all types of storage and shelving systems. Our storage shelf panel roll forming machine adopts advanced continuous roll forming technology, which efficiently transforms metal coils (such as galvanized steel, carbon steel) into standard or custom-sized storage shelf panels with uniform dimensions, smooth surfaces and strong structural integrity.
Unlike ordinary steel roll forming machines, this storage shelf panel roll forming machine is optimized for the specific requirements of shelf panel production, integrating uncoiling, leveling, punching, forming and cutting into one continuous process, greatly improving production efficiency and reducing material waste. Whether you need an automatic storage shelf panel roll forming machine for large-scale mass production or a custom storage shelf panel roll forming machine to meet special profile and size requirements, our equipment can perfectly adapt to your production needs, helping you reduce production costs, shorten delivery cycles and enhance market competitiveness.
Features & Advantages
Our storage shelf panel roll forming machine has distinct competitive advantages over similar products in the global market, focusing on precision, efficiency, flexibility, durability and cost-effectiveness, which are fully in line with the production needs of modern manufacturers.
Firstly, our high precision storage shelf panel forming machine is equipped with a PLC controlled system and servo feeding mechanism, with a forming accuracy error controlled within ±1mm, punching position accuracy up to ±0.5mm, ensuring the consistency and interchangeability of each storage shelf panel, and avoiding the trouble of assembly mismatch.
Secondly, the automatic storage shelf panel roll forming machine realizes full-process automation, which reduces manual intervention, improves production efficiency by 30%-50% compared with traditional equipment, and the production speed can be adjusted in the range of 0-12 m/min according to actual needs, easily meeting large-order production requirements.

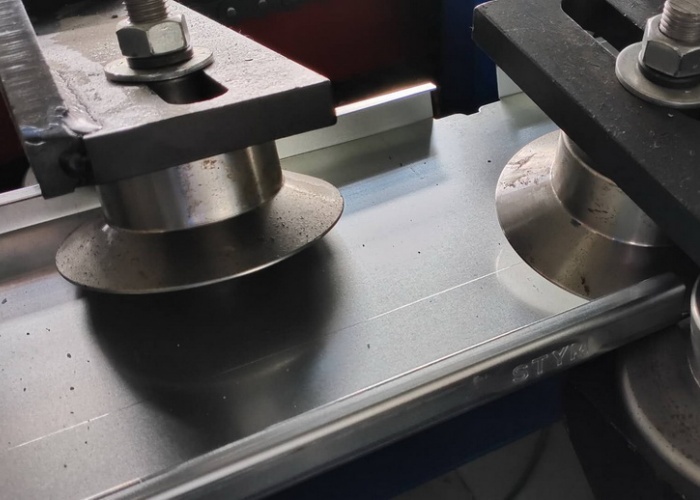

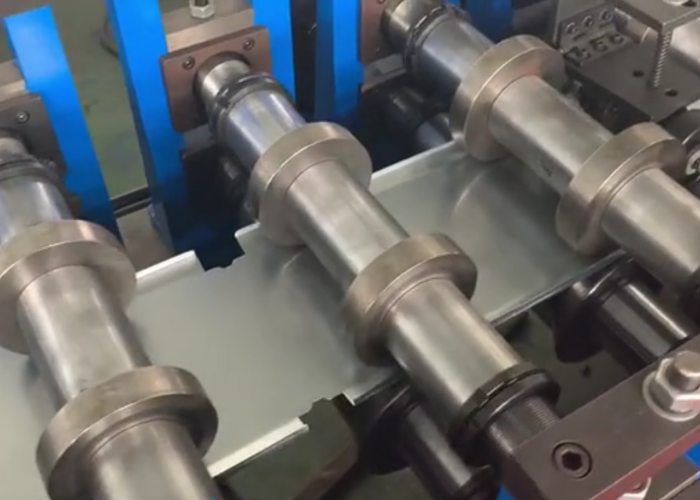

Thirdly, the heavy duty storage shelf panel forming machine adopts high-quality GCR 15 heat-treated rollers and 45# quenched and tempered shafts, which have strong wear resistance and load-bearing capacity, adapting to long-term high-intensity production and extending the service life of the equipment by 30% compared with ordinary machines.
In addition, our storage shelf panel roll forming machine supports flexible customization, which can quickly adjust parameters and molds to produce shelf panels of different specifications, thicknesses and hole patterns, meeting the diverse needs of different industries.
Finally, the galvanized steel storage shelf panel roll forming machine has excellent energy-saving and environmental protection performance, with a material utilization rate of up to 98%, reducing unit product energy consumption by 20%, helping enterprises achieve green and cost-saving production.
Application Scenarios
The storage shelf panel roll forming machine has a wide range of applications, covering various industries that require storage shelving systems, and can provide high-quality shelf panel production solutions for different scenarios.

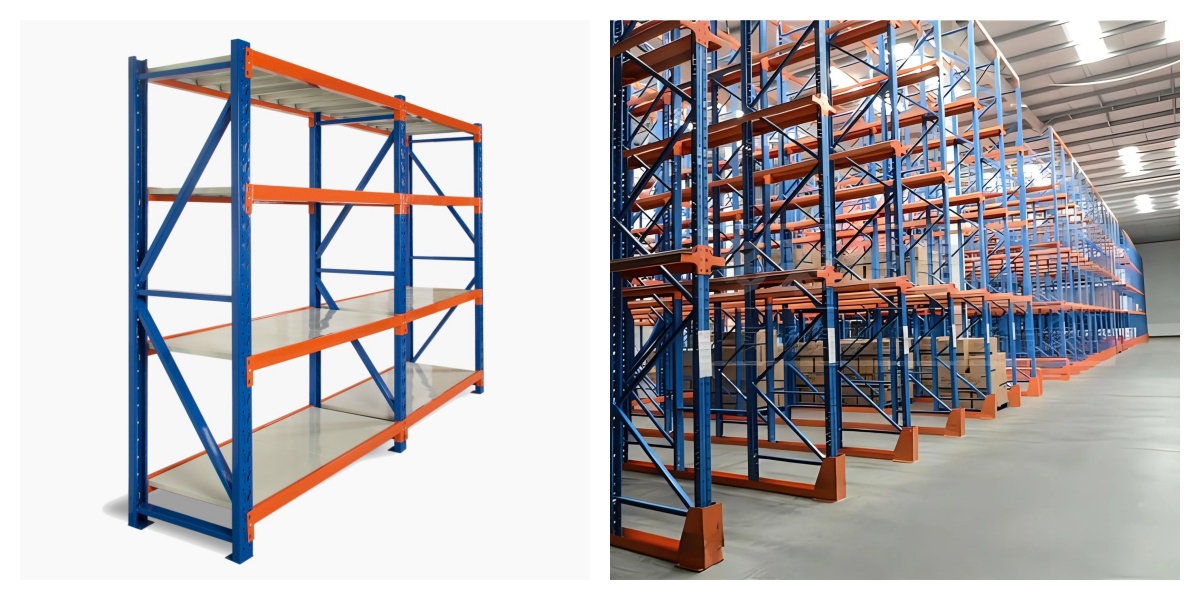

In warehouse and logistics distribution centers, our warehouse storage shelf panel forming machine produces high-strength storage shelf panels, which are used to build pallet racking and mezzanine flooring systems, optimizing warehouse space and realizing safe storage of heavy goods.
In retail industries such as supermarkets, convenience stores and shopping malls, the retail shelf panel roll forming machine produces light-duty and medium-duty shelf panels, which form the main body of retail shelving, meeting the display and storage needs of various commodities.
In industrial factories, the heavy duty storage shelf panel forming machine produces durable and load-bearing shelf panels, which are used to store raw materials, mechanical parts and tools, helping enterprises optimize storage layout and improve production management efficiency.
In e-commerce fulfillment centers, the automatic storage shelf panel roll forming machine can meet the large-scale and high-efficiency production needs of shelf panels, supporting the rapid operation of e-commerce warehousing and sorting.
In addition, our solar storage shelf panel forming machine and galvanized steel storage shelf panel roll forming machine are also suitable for the production of shelf panels in archive libraries, automotive parts warehouses and solar storage systems, providing stable and reliable structural support for various storage scenarios.
FAQ
1, What is the typical lead time for ordering a shelf panel roll forming machine from Gonawell?
The standard delivery time for the shelf panel roll forming machine is normally 60 days after receipt of payment. This timeframe includes production, quality checks, and packaging to ensure reliable shipment from Shanghai port.
2, What steel sheet thickness and dimensions are supported by the metal storage panel profile roll forming machines?
The machine processes galvanized steel sheets with thickness from 0.5-1.0mm as customized, widths according to customer's profile, any size as request.
3, What technical support and warranty options are available for the warehouse storage rack panel roll forming machine system?
Gonawell provides 1-year warranty with lifetime technical support for the storage rack panel roll forming machine, This ensures ongoing service for maintenance, troubleshooting, and operational guidance to maintain long-term machine reliability.
