| MODEL | GW-60*80/85*120 | OPERATION | Touch screen and button |
| MATERIAL TYPE | Galvanized, Pre-painted steel coils | HYDRAULIC SYSTEM PRESSURE | 12Mpa |
| MATERIAL THICKNESS | 1.5-3.0mm | MAIN MOTOR POWER | 30Kw as request |
| MATERIAL FEEDING WIDTH | As request | HYDRAULIC MOTOR POWER | 11Kw as request |
| MATERIAL YIELD STRESS | 235-345Mpa as request | DIMENSION | About 12000*1300*1500mm |
| MAX. FORMING SPEED | 0-15m/min | WEIGHT | About 12T |
| ROLLER MATERIAL | GCr15 with hard chromed treatment | WARRANTY | 1 year |
| ROLLER DRIVEN TYPE | Chain / Gear-box transmission | CERTIFICATE | ISO, CE |
| CONTROLLER | PLC | PUNCHING | possible |
PACKING: Packed by bundle or as customers' requirements and shipped by container.
PAYMENT TERM: TT or irrevocable LC at sight
DELIVERY TIME: Normally 60 days after receive payment
DELIVERY PORT: Shanghai port, China
CONTAINER REQUEST: 1*40GP+1*20GP
GUARANTEE PERIOD: 1 year, lifetime technical support and service.

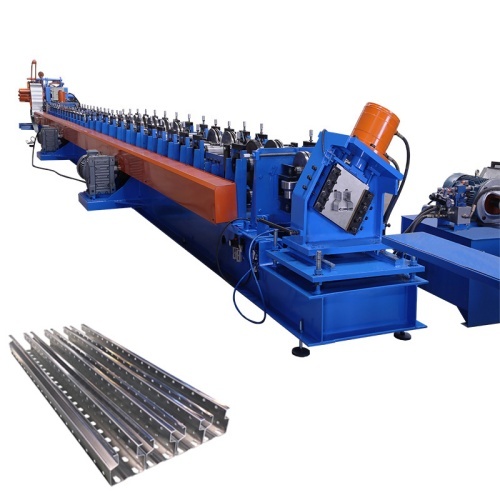

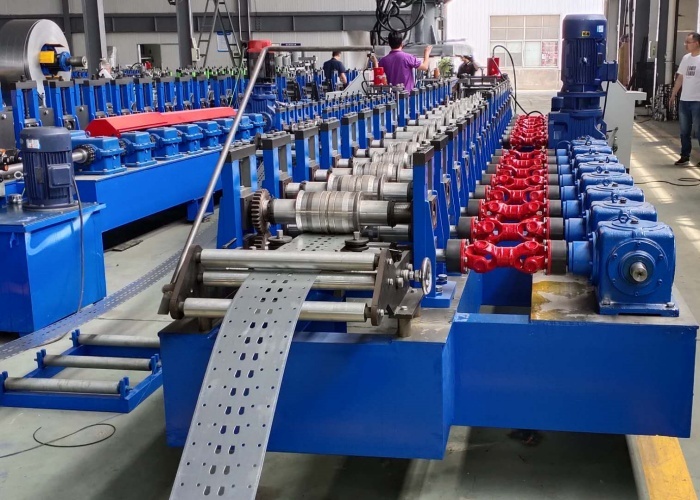

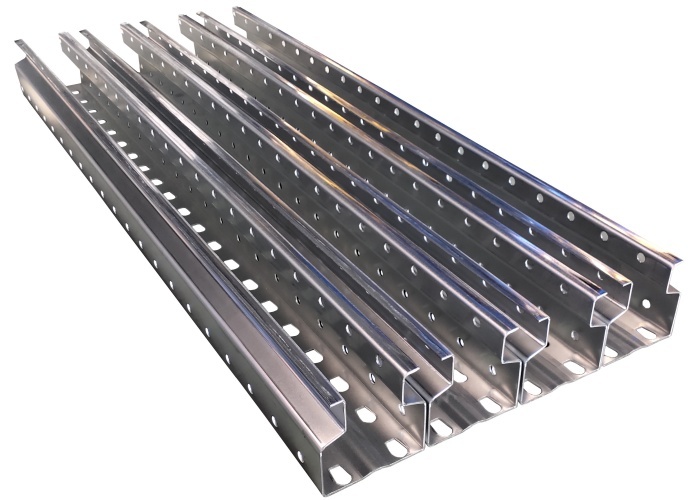

GONAWELL storage shelf column forming machine is a professional and high-efficiency steel roll forming equipment designed specifically for producing high-quality storage shelf columns, which are the core structural components of various shelving systems. As a leading supplier of metal forming machinery, we focus on integrating advanced roll forming technology into our storage shelf column forming machine, ensuring that it can efficiently transform galvanized steel, carbon steel and other metal coils into standard or custom-sized storage shelf columns with precise dimensions and stable performance.
Unlike ordinary forming machines, our storage shelf column forming machine adopts a continuous roll forming process, which greatly improves production efficiency while reducing material waste, making it an ideal choice for manufacturers engaged in warehouse shelving, supermarket shelving and industrial storage rack production. Whether you need an automatic storage shelf column forming machine for large-scale production or a custom storage shelf column forming machine to meet special size requirements, our equipment can perfectly match your production needs, helping you reduce production costs and enhance market competitiveness.
Features & Advantages
GONAWELL storage shelf column forming machine has obvious competitive advantages compared with similar products in the market, focusing on precision, efficiency, flexibility and durability.
First of all, the high precision storage shelf column forming machine is equipped with a PLC controlled system and servo feeding mechanism, which ensures that the forming accuracy error is controlled within ±1mm, the punching position accuracy reaches ±0.5mm, and the cutting length error does not exceed ±1mm, effectively ensuring the consistency and interchangeability of storage shelf columns.
Secondly, the automatic storage shelf column forming machine realizes full-process automation from uncoiling, leveling, punching, forming to cutting, which reduces manual intervention, improves production efficiency by 30%-50% compared with traditional equipment, and the production speed can be adjusted in the range of 0-10 m/min according to needs.
In addition, our heavy duty storage shelf column forming machine adopts high-quality GCr15 or CR12 heat-treated rollers as request, and 45# quenched and tempered shafts, which have strong wear resistance and can adapt to long-term high-intensity production, extending the service life of the equipment.
Moreover, the equipment supports flexible customization, and can quickly adjust parameters and molds to produce storage shelf columns of different specifications and profiles, meeting the diverse needs of different industries.
Finally, compared with other steel roll forming machines, our storage shelf column forming machine is more energy-saving and environmentally friendly, with a material utilization rate of up to 98% and a 20% reduction in unit product energy consumption, helping enterprises achieve green production.
Application Scenarios
GONAWELL storage shelf column forming machine has a wide range of applications, covering various industries that need storage shelving systems, and can perfectly match the production needs of different scenarios.
In warehouse and distribution centers, our warehouse storage shelf column forming machine produces high-strength storage shelf columns, which are used to build pallet racking systems, helping to optimize warehouse space and realize safe storage of heavy goods.
In retail industries such as supermarkets and convenience stores, the storage shelf column forming machine is used to produce light-duty and medium-duty shelf columns, which form the backbone of retail shelving systems and meet the display and storage needs of goods.
In industrial factories, the heavy duty storage shelf column forming machine produces durable shelf columns, which are used to store raw materials, tools and mechanical parts, helping enterprises optimize the storage layout and improve management efficiency.
In e-commerce fulfillment centers, the automatic storage shelf column forming machine can meet the large-scale production needs of shelf columns, supporting the efficient operation of e-commerce warehousing and sorting.
In addition, our galvanized steel storage shelf column forming machine is also suitable for the production of shelf columns in archive libraries, automotive parts warehouses and solar storage systems, providing stable and reliable structural support for various storage scenarios.
FAQ
1, What is the typical lead time for ordering a shelf column roll forming machine from Gonawell?
The standard delivery time for the shelf column roll forming machine is normally 60 days after receipt of payment. This timeframe includes production, quality checks, and packaging to ensure reliable shipment from Shanghai port.
2, What steel sheet thickness and dimensions are supported by the metal storage rack profile roll forming machines?
The machine processes galvanized steel sheets with thicknesses from 1.5-3.0mm as customized, widths according to customer's profile, any size as request.
3, What technical support and warranty options are available for the warehouse storage upright column roll forming machine system?
Gonawell provides 1-year warranty with lifetime technical support for the storage upright column roll forming machine, This ensures ongoing service for maintenance, troubleshooting, and operational guidance to maintain long-term machine reliability.
